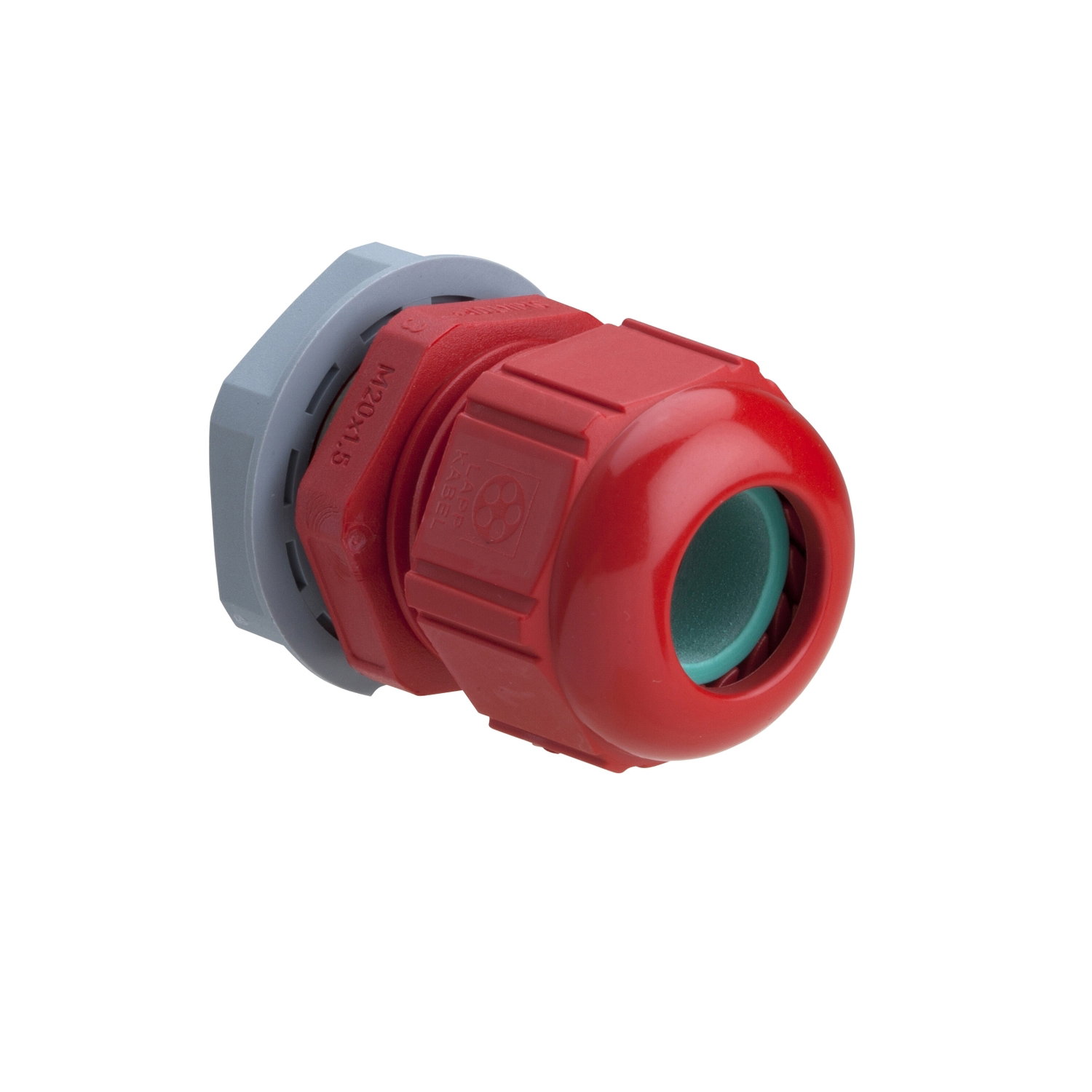

Thorsman Glands - security cable gland - red - M20 - diameter 6 to 12
Security cable gland equipped with nut and seal for one cable, specially adapted to red boxes for safety circuits. May be used in both theaded and unthreaded holes. The IP68 and plastic material ensures complete protection even in hot environments.
Product identifiers
SKU: IMT36150
EAN: 3606480163494
GTIN: 3606480163494
MPN: IMT36150
Loyalty points:
1
Price: £ 0.75 Excl. VAT
Categories
Features
|
Model
|
Straight
|
|
Colour
|
Red
|
|
Material
|
Plastic
|
|
Screened
|
no
|
|
RAL-number
|
3000
|
|
EMC-version
|
no
|
|
Thread type
|
Metric
|
|
Halogen free
|
yes
|
|
Pitch thread
|
2.5 mm
|
|
With locknut
|
yes
|
|
Wrench width
|
20 mm
|
|
Thread length
|
9 mm
|
|
For Ex-zone gas
|
None
|
|
Multi seal area
|
yes
|
|
Shock resistant
|
yes
|
|
Type of sealing
|
Membrane
|
|
For Ex-zone dust
|
None
|
|
Material quality
|
Polyamide (PA)
|
|
For armoured cable
|
no
|
|
Surface protection
|
Untreated
|
|
With strain relief
|
yes
|
|
Flat cable coupling
|
no
|
|
Snapping in opening
|
no
|
|
Operating temperature
|
|
|
Pressure-compensating
|
no
|
|
Separable screw gland
|
yes
|
|
Glass-fibre reinforced
|
yes
|
|
Explosion-tested version
|
no
|
|
Degree of protection (IP)
|
IP68
|
|
Hexagon angular dimension
|
10 mm
|
|
Suitable for cable diameter
|
|
|
Nominal thread size metric/PG
|
20
|
|
Bend radius protection/trumpet flare
|
yes
|
|
Nominal thread size inch/gas pipe thread
|
3/4 inch
|
