Features
|
Depth
|
34 mm
|
|
Width
|
13 mm
|
|
Colour
|
Grey
|
|
Height
|
85 mm
|
|
Rated voltage
|
-
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Rated current In
|
-
|
|

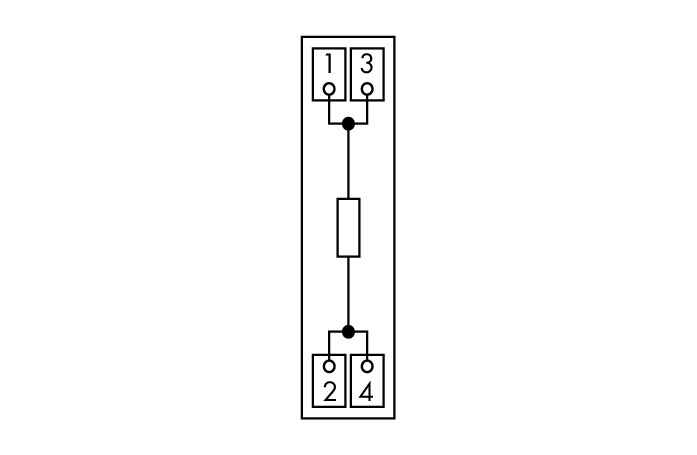

Type of component
|
Resistor
|
|
Operating temperature
|
-20 - 70 °C
|
|
Closing plate required
|
yes
|
|
Material insulation body
|
Thermoplastic
|
|
Internally connected stages
|
no
|
|
Explosion-tested version 'Ex e'
|
no
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per level
|
2
|
|
Connectable conductor cross section solid-core
|
0.08 - 2.5 mm²
|
|
Connectable conductor cross section multi-wired
|
0.08 - 2.5 mm²
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.25 - 1.5 mm²
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.08 - 2.5 mm²
|
