S803N-D16 High Performance MCB
ABB

S803N-D16 High Performance MCB

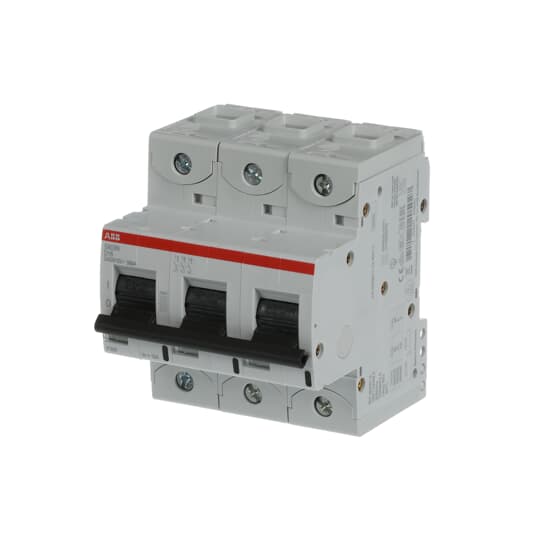

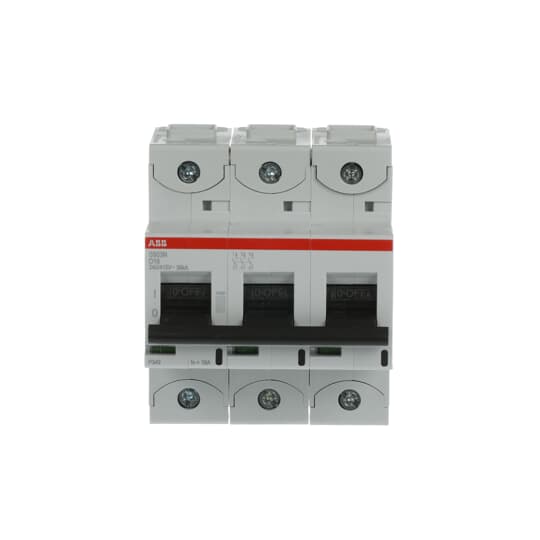

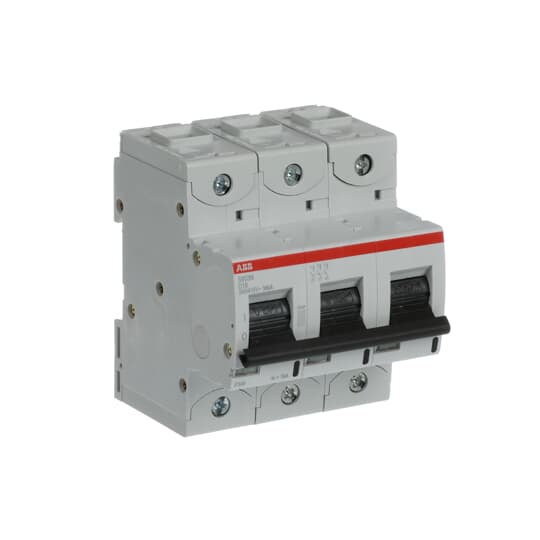

The S803N-D16 is a 3-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 16 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803N-D16 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803N-D16 more comfortable. Due to the fast arc extinction of S803N-D16 your application will be secured.

Product identifiers

SKU: 2CCS893001R0161
EAN: 7612271205027
GTIN: 7612271205027
MPN: S803N-D16

V+ Loyalty points:

107

Price: £ 242.82 Excl. VAT

Categories

MCBs Switchgear & Circuit Protection Circuit Breakers

Specifications

Frequency
Power loss 9.3
Voltage type AC/DC
Rated current 16
Rated voltage
Built-in depth 82.5
Explosion-proof no
Pollution degree 3
Current limiting class 3
Number of poles (total) 3
Number of protected poles 3
Rated insulation voltage Ui 690
Width in number of modular spacings 4.5
Rated impulse withstand voltage Uimp 8
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V -
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V -
