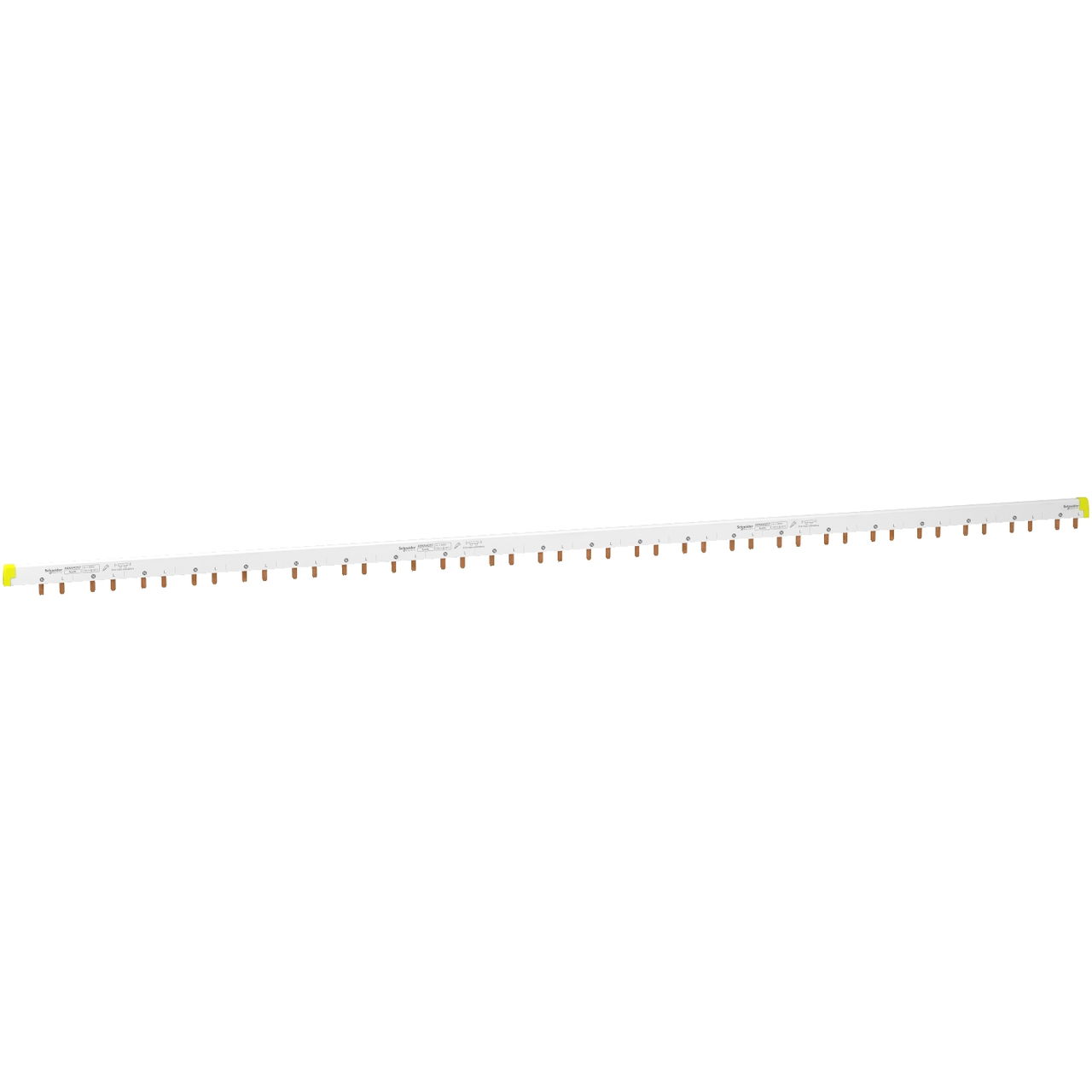

Acti9 - comb busbar - 1L+N with Aux - 18 mm pitch - 57 modules - 100A

Link copied
SKU
EAN
GTIN
MPN

Acti9 - comb busbar - 1L+N with Aux - 18 mm pitch - 57 modules - 100A by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components and Rexel Group. It is currently in stock at 2 of them. Trade prices range from £123.94 to £125.18 excl. VAT. Voltimum+ members earn 14 points per unit.

This Acti 9 horizontal comb busbar 18mm modules with 9mm auxiliary for Acti 9 iC60 or Acti 9 iK60 is cuttable. It is dedicated to Aux+3L installations. The type is AuxL1L2L3 (Auxiliary, Line). It is a set of 1 device. It is suitable for 22 devices (3P) with associated auxiliaries. The length is 1000mm.The total number of modules of 18mm is 57. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 2. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.

Voltimum+ Loyalty Programme Loyalty points: 14

Price range: £ 123.94 - £ 125.18 Excl. VAT

Specifications

Colour White
Length 1000 mm
Insulated yes
Module width 18 mm
Cross section 16 mm²
Number of poles 2
Number of phases 1
Can be cut to size yes
Rated permanent current Iu 100 A
Suitable for number of devices 22
Width in number of modular spacings 57
Rated short-time withstand current lcw -
Suitable for devices with auxiliary switch yes
