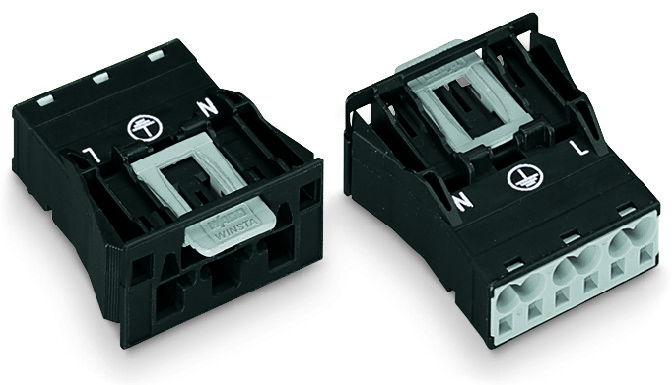

Snap-in plug 3-pole Cod. A black

Name: Snap-in plug 3-pole Cod. A black
Brand: Wago
SKU: 770-713
Availability: InStock

Snap-in plug; 3-pole; Cod. A; black

Product identifiers

SKU: 770-713

EAN: 4044918254199

GTIN: 4044918254199

MPN: 770-713

Loyalty points: 3 (x100)

Price: £ 2.11 Excl. VAT

Pluggable building installation systems

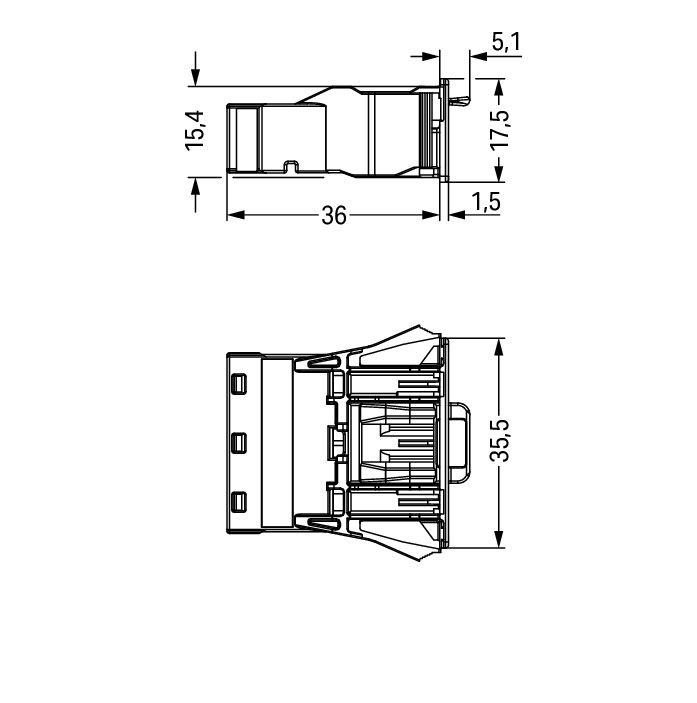

Specifications

Model	Plug
Width	35.5
Height	17.5
Length	41.1
Fire load	0.0725
Halogen free	yes
Rated current	25
Rated voltage	250
Housing colour	Black
Connection type	Spring clamp connection
Number of poles	3
Type of locking	Integrated in plug-in connector
Built-in version	Snap-in/screw-in device
Contact material	CuSn
Housing material	Polyamide (PA)
Insert direction	Straight
Pollution degree	3
Mechanical coding	yes
Pole codification	L, N, PE
Rated surge voltage	4
Angle of inclination
Length soldering pin	-
Continuity resistance	1
Connection size thread	No thread connection
Wall thickness housing	2
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Black
Number of connections per pole	2
RAL-number coding/contact insert	9004
Colour of the separate adapter piece	-
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
