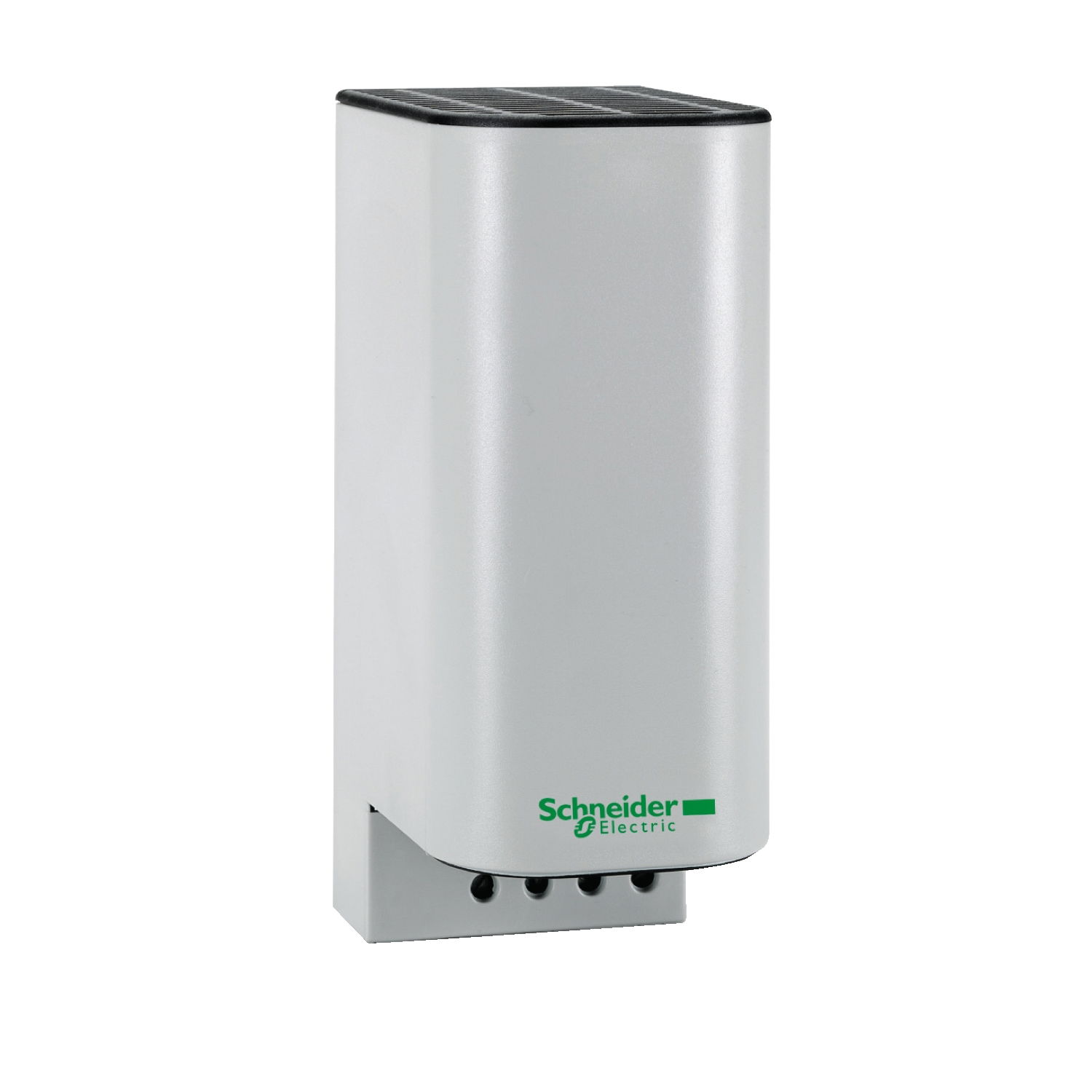

ClimaSys PTC heating resistance 50W,110-250V insulate
ClimaSys PTC heating resistance insulate. 50W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.
Product identifiers
SKU: NSYCR50WU2C
EAN: 3606480152290
GTIN: 3606480152290
MPN: NSYCR50WU2C
Loyalty points: 29
Price range: £ 55.13 - £ 74.25 Excl. VAT
Categories
Features
|
Depth
|
90 mm
|
|
Width
|
60 mm
|
|
Height
|
110 mm
|
|
With fan
|
FALSE
|
|
Rated power
|
55 W
|
|
Voltage type
|
AC
|
|
Operating voltage DC
|
|
|
Degree of protection (IP)
|
IP20
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Degree of protection (NEMA)
|
1
|
|
With room temperature controller
|
FALSE
|
|
Continuous heating power at 10 °C
|
55 W
|
