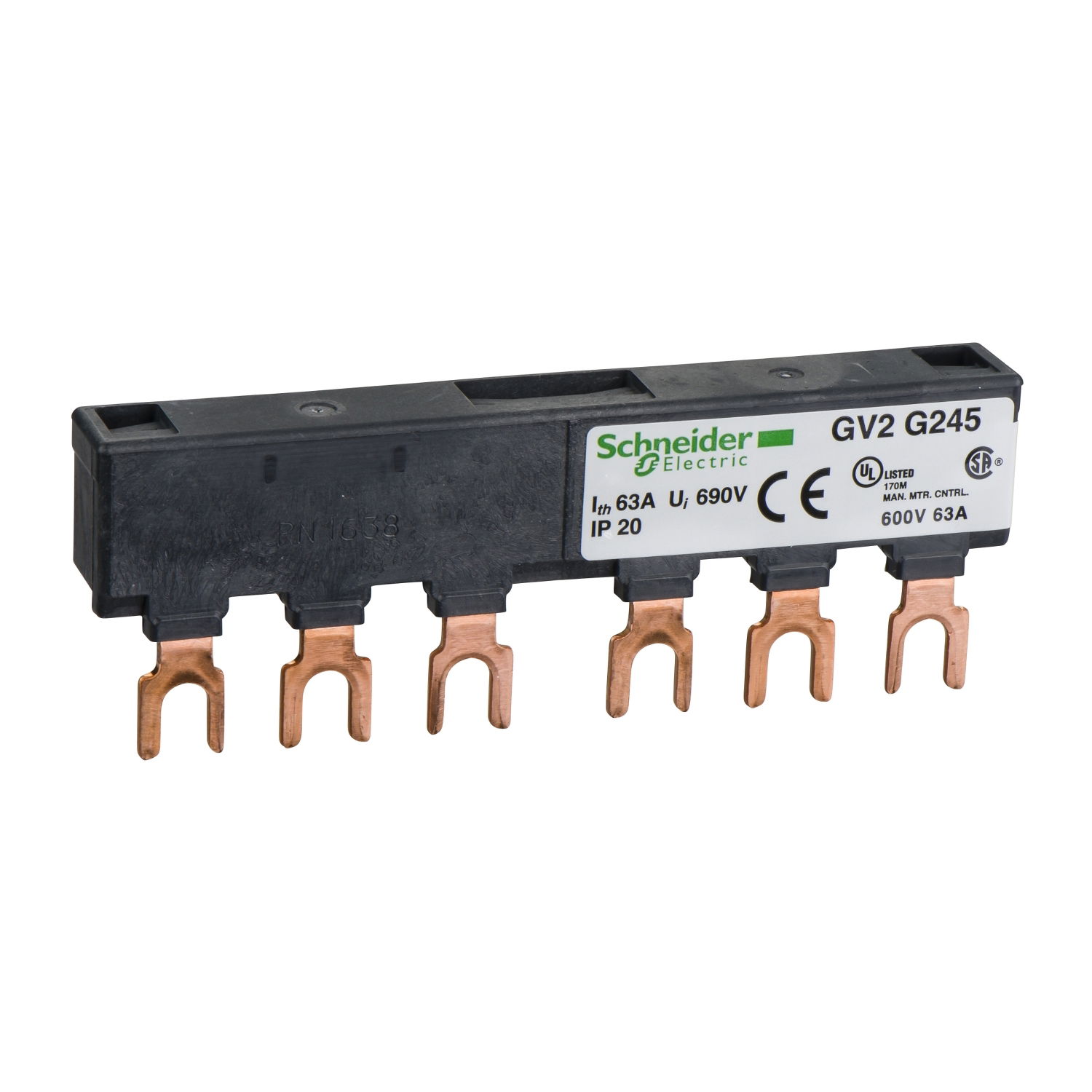

Linergy FT - Comb busbar - 63 A - 2 tap-offs - 45 mm pitch

Link copied
SKU
EAN
GTIN
MPN

Linergy FT - Comb busbar - 63 A - 2 tap-offs - 45 mm pitch by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £7.78 to £12.67 excl. VAT. Voltimum+ members earn 2 points per unit.

TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 45mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 7.78 - £ 12.67 Excl. VAT

Specifications

Colour Black
Length 90 mm
Insulated yes
Module width 45 mm
Cross section -
Number of poles 3
Number of phases 3
Can be cut to size no
Rated permanent current Iu 63 A
Suitable for number of devices 2
Width in number of modular spacings 45
Rated short-time withstand current lcw -
Suitable for devices with auxiliary switch no
