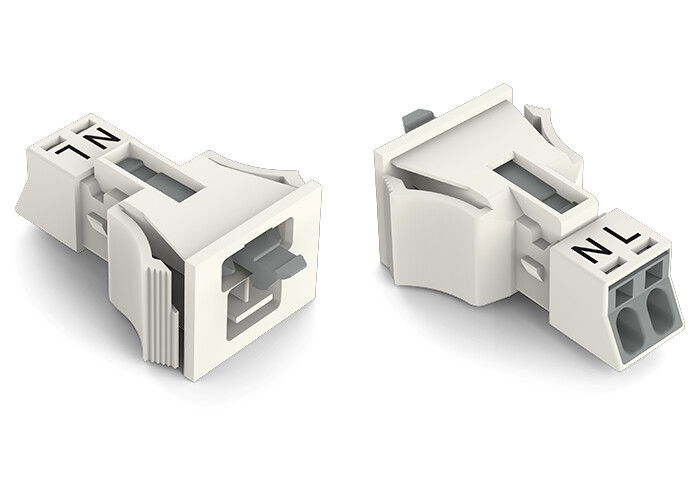

Snap-in plug 2-pole Cod. A white

Name: Snap-in plug 2-pole Cod. A white
Brand: Wago
SKU: 890-732
Availability: InStock

Snap-in plug 2-pole Cod. A white by Wago is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £0.90 excl. VAT.

Snap-in plug; 2-pole; Cod. A; 1,50 mm²; white

Product identifiers

SKU: 890-732

EAN: 4045454233532

GTIN: 4045454233532

MPN: 890-732

Loyalty points: 2 (x50)

Price: £ 0.90 Excl. VAT

Specifications

Model	Plug
Width	19.8
Height	16
Length	39.85
Fire load	0.03
Halogen free	yes
Rated current	16
Rated voltage	250
Housing colour	White
Connection type	Spring clamp connection
Number of poles	2
Type of locking	Integrated in plug-in connector
Built-in version	Snap-in/screw-in device
Contact material	CuSn
Housing material	Polyamide (PA)
Insert direction	Straight
Pollution degree	3
Mechanical coding	yes
Pole codification	L, N
Rated surge voltage	4
Angle of inclination
Length soldering pin	-
Continuity resistance	1
Connection size thread	No thread connection
Wall thickness housing	2
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Number of connections per pole	1
RAL-number coding/contact insert	9010
Colour of the separate adapter piece	-
Connection cross section (solid-core)	0.25 - 1.5
Connection cross section (fine-strand)	0.25 - 1.5
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
