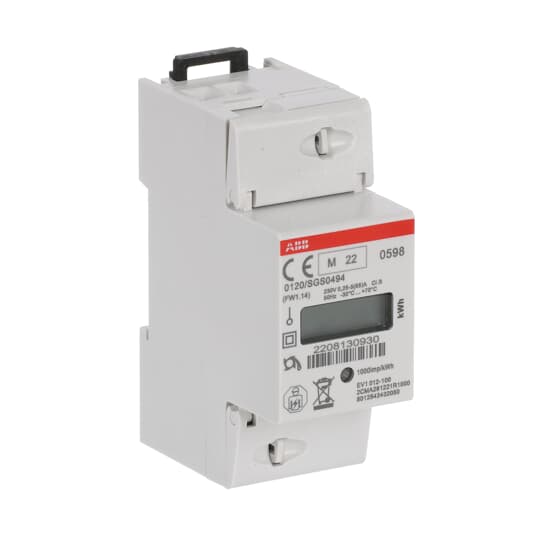

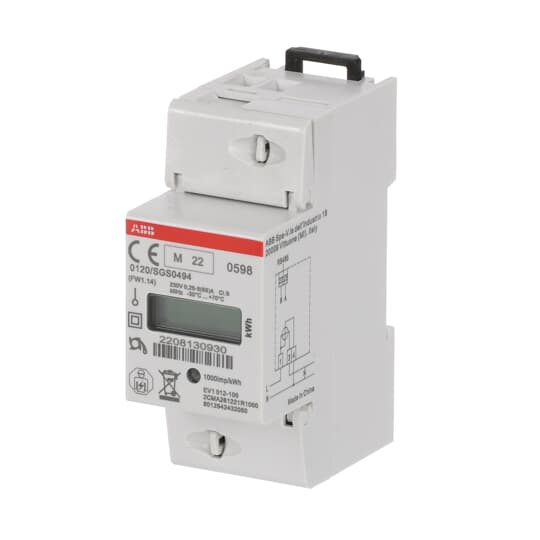

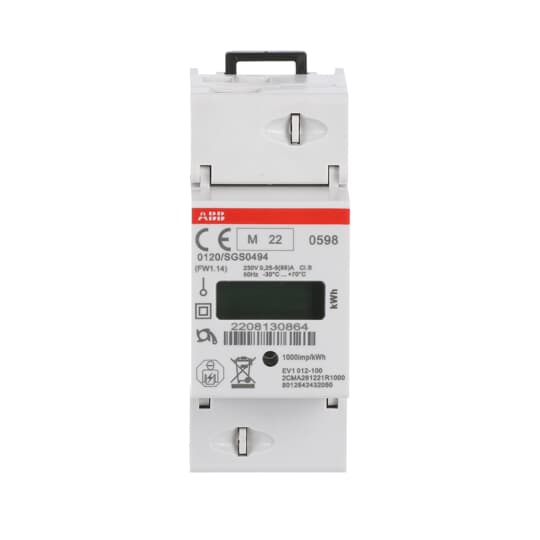

Electricity Meter , Electronic

Name: Electricity Meter , Electronic
Brand: ABB
SKU: 2CMA261221R1000
Availability: OutOfStock

Basic electricity meter, 1 phase, Active energy Cl. 1 & B, MID Approved, Modbus communication.

Product identifiers

SKU: 2CMA261221R1000

EAN: 8012542432050

GTIN: 8012542432050

MPN: EV1 012-100

Price: £ 117.45 Excl. VAT

Specifications

Depth	62
Model	Direct measurement
Width	35
Height	90
Approval	Measuring Instruments Directive
Frequency
Pole type	Single phase
Calibrated	yes
Pulse rate
Pulse type	D0
Energy type	Effective power
Tariff type	One-tariff
Pulse output	Optical
Suitable for	-
Type of meter	Electronic
Accuracy class	B
Tariff control	-
With lock code	no
EEC40 signature	no
Mounting method	DRA (DIN-rail adapter)
Power consumption	0.012
Type of interface	Modbus
Type of indication	Digital
Max. current (Imax)	65
Escapement mechanism	yes
Nominal current (In)	65
Nominal voltage (Un) L-L
Nominal voltage (Un) N-L
Degree of protection (IP)	IP21
Degree of protection (NEMA)	-
Measurement type load profile	no
Number of positions total (counter)	6
Width in number of modular spacings	2

Deeplink product page
Deeplink REACH
Dimensioned drawing
Product data sheet
Declaration DOC CE (Declaration of conformity CE)
