Schneider Electric
Popularity Top 60% More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

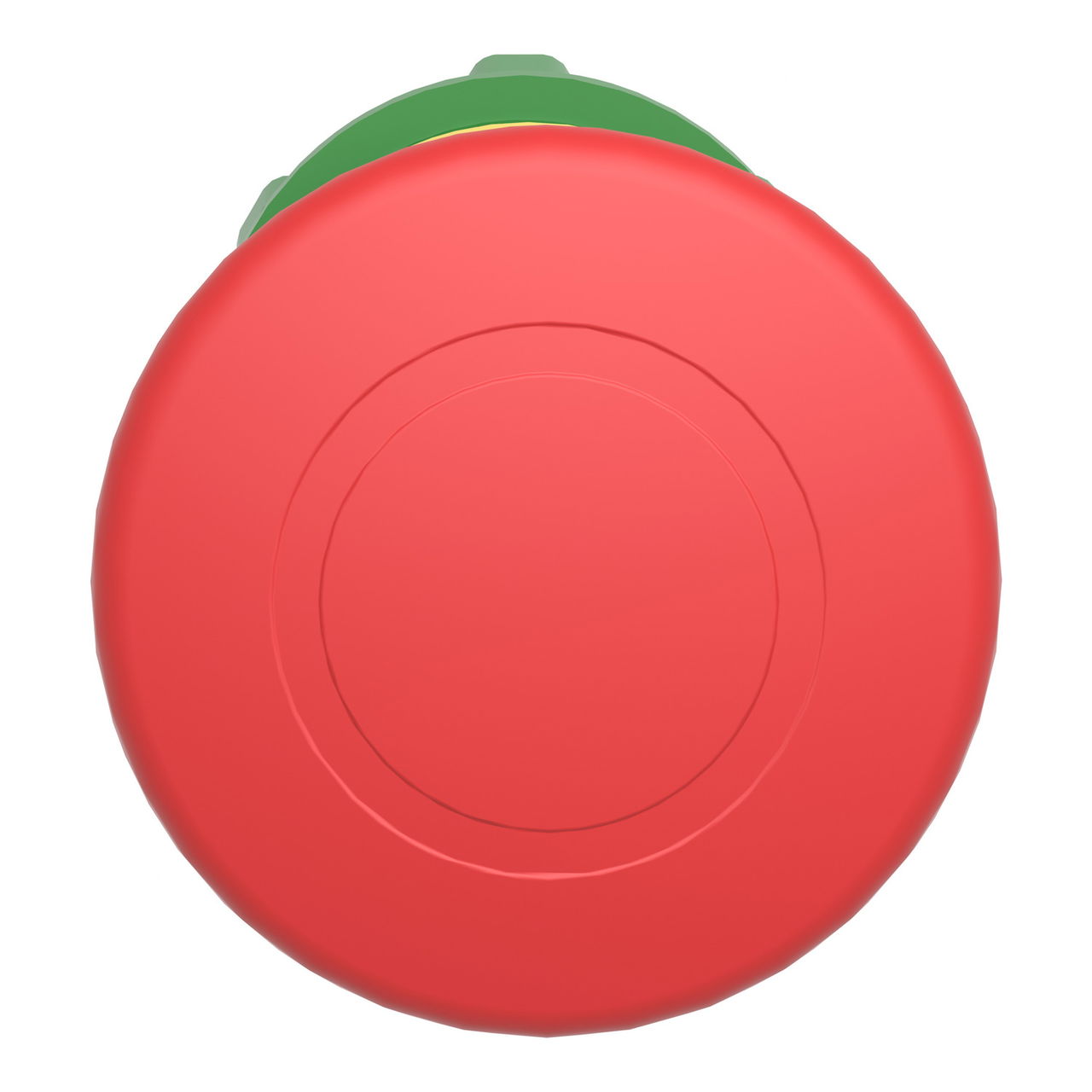

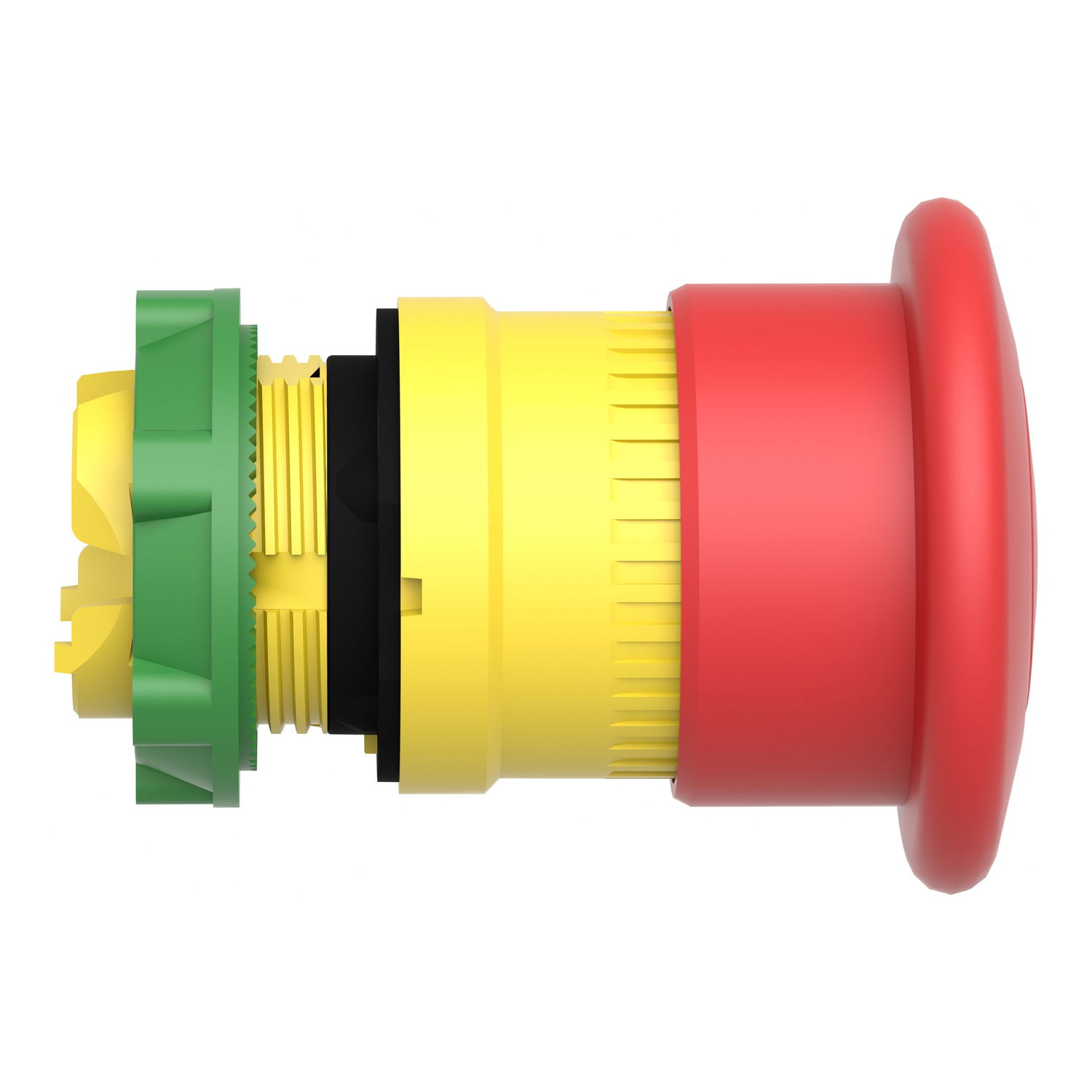

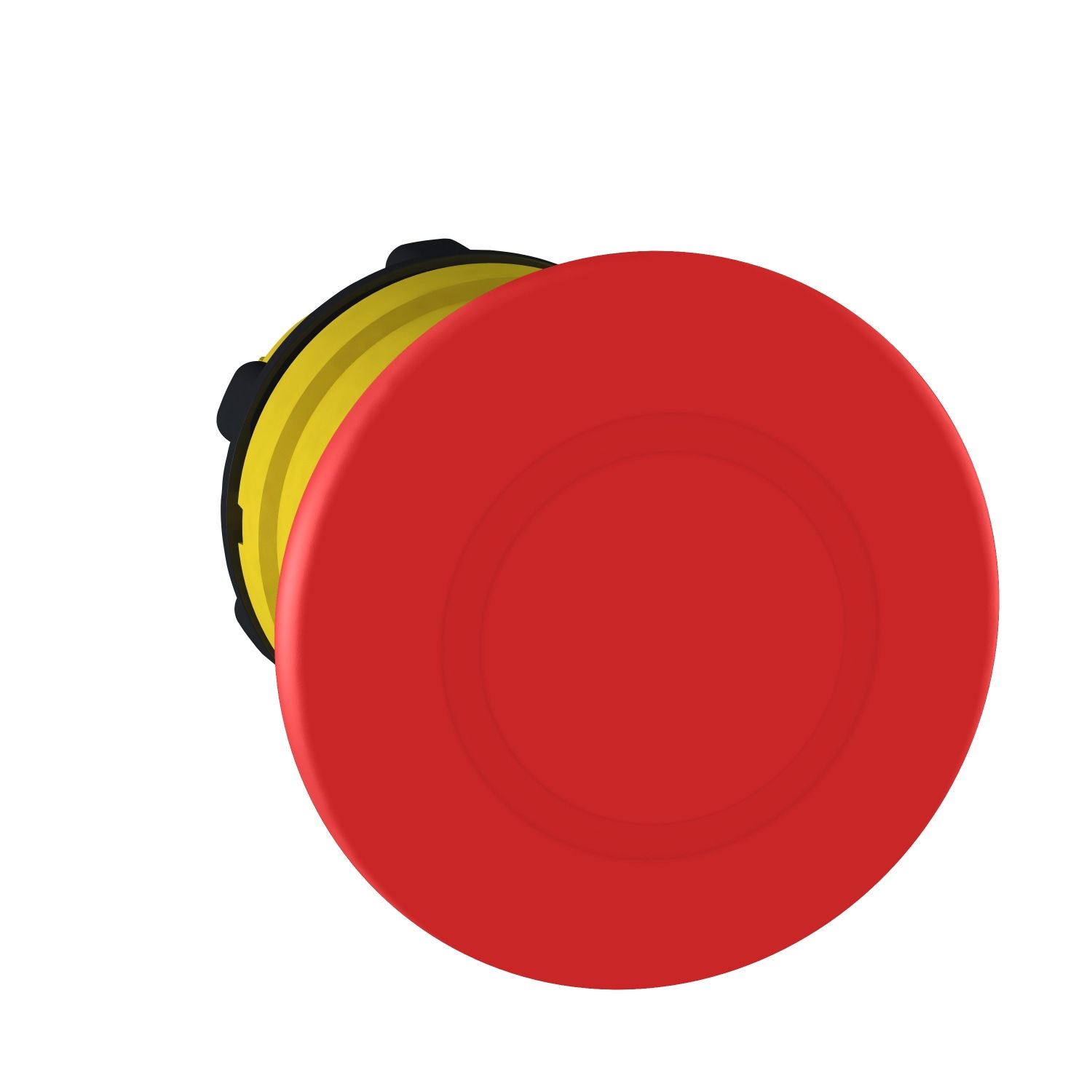

Emergency stop head, switching off, plastic, red mushroomØ40, Ø22, trigger latching push-pull

Link copied
SKU
EAN
GTIN
MPN

Emergency stop head, switching off, plastic, red mushroomØ40, Ø22, trigger latching push-pull by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £15.05 to £24.16 excl. VAT. Voltimum+ members earn 3 points per unit.

This Harmony XB5, Emergency stop 40mm mushroom red button head operates with a push-pull mechanism. This emergency stop / shutdown button head, is easily combined with contact blocks and installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Voltimum+ Loyalty Programme Loyalty points: 3

Price range: £ 15.05 - £ 24.16 Excl. VAT

Specifications

Diameter cap 40 mm
Colour button Red
Hole diameter 22.5 mm
Spring-return no
Width opening -
With lighting no
Height opening -
Type of button High
Unlocking method Pull-release
Material front ring Plastic
Suitable for lighting no
Degree of protection (IP) IP66
Suitable for emergency stop yes
