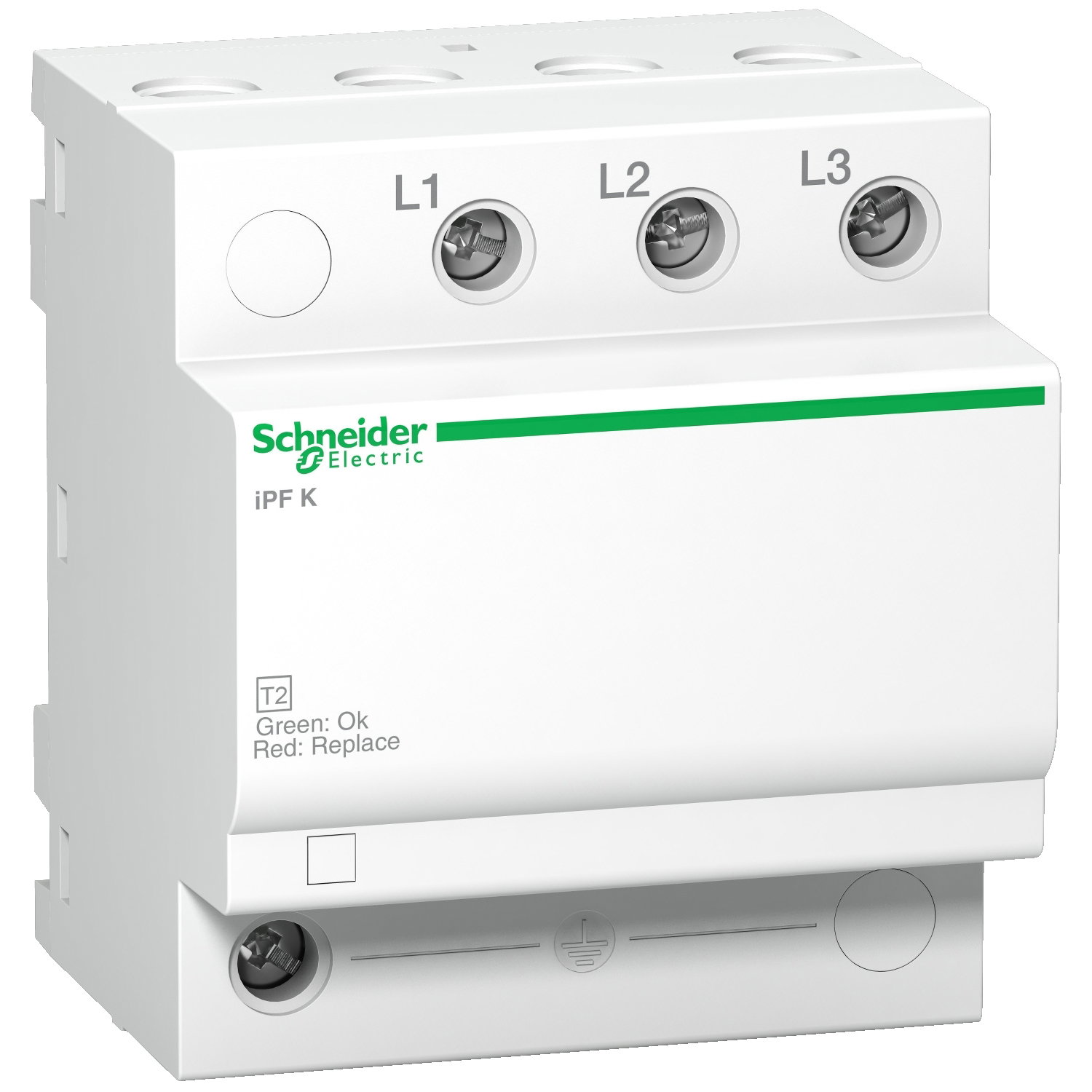

IPF K 20 modular surge arrester - 3 poles - 340V

This Acti9 iPF K 20 product is a modular surge arrester. It protects 3P installations. The Imax maximum discharge current is 20kA .The In nominal discharge current is 5kA. The multi-pole single-piece surge arrester range is adapted for TT, TN-S, TN-C earthing systems. This type 2 incoming protection surge arrester is recommended for a medium risk level. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 340VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.1kV. The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 72mm x (H) 81mm x (D) 69mm. The weight is 335g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with IEC 61643-11 and EN 61643-11 standards.

Product identifiers

SKU: A9L15597
EAN: 3606480089930
GTIN: 3606480089930
MPN: A9L15597

Voltimum+ Loyalty Programme Loyalty points: 52

Price: £ 313.00 Excl. VAT

Categories

Switchgear & Circuit Protection Switchgear Low Voltage Switchgear

ETIM group

Earthing, lightning and surge protection

Specifications

Category type 2 yes
Max. PV-voltage -
Mounting method DIN rail (top hat rail) 35 mm
Construction size 4 modular spacing
Nominal voltage AC 400 V
Nominal voltage DC -
Leakage-current free no
Integrated backup fuse no
System configuration IT no
System configuration TT no
Voltage protection level 1.1 kV
System configuration TN-C yes
Max. continuous voltage AC 340 V
System configuration other no
Voltage protection level L-N -
With remote signalling contact no
Max. discharge surge current (8/20) 20 kA
Number of conductors (without earthing) 3
Max. conductor cross section flexible (fine-strand) 10 mm²
Integrated short-circuit protection selective to fuse gG -
Max. overcurrent protection device, parallel connection (fuse) 40 A
