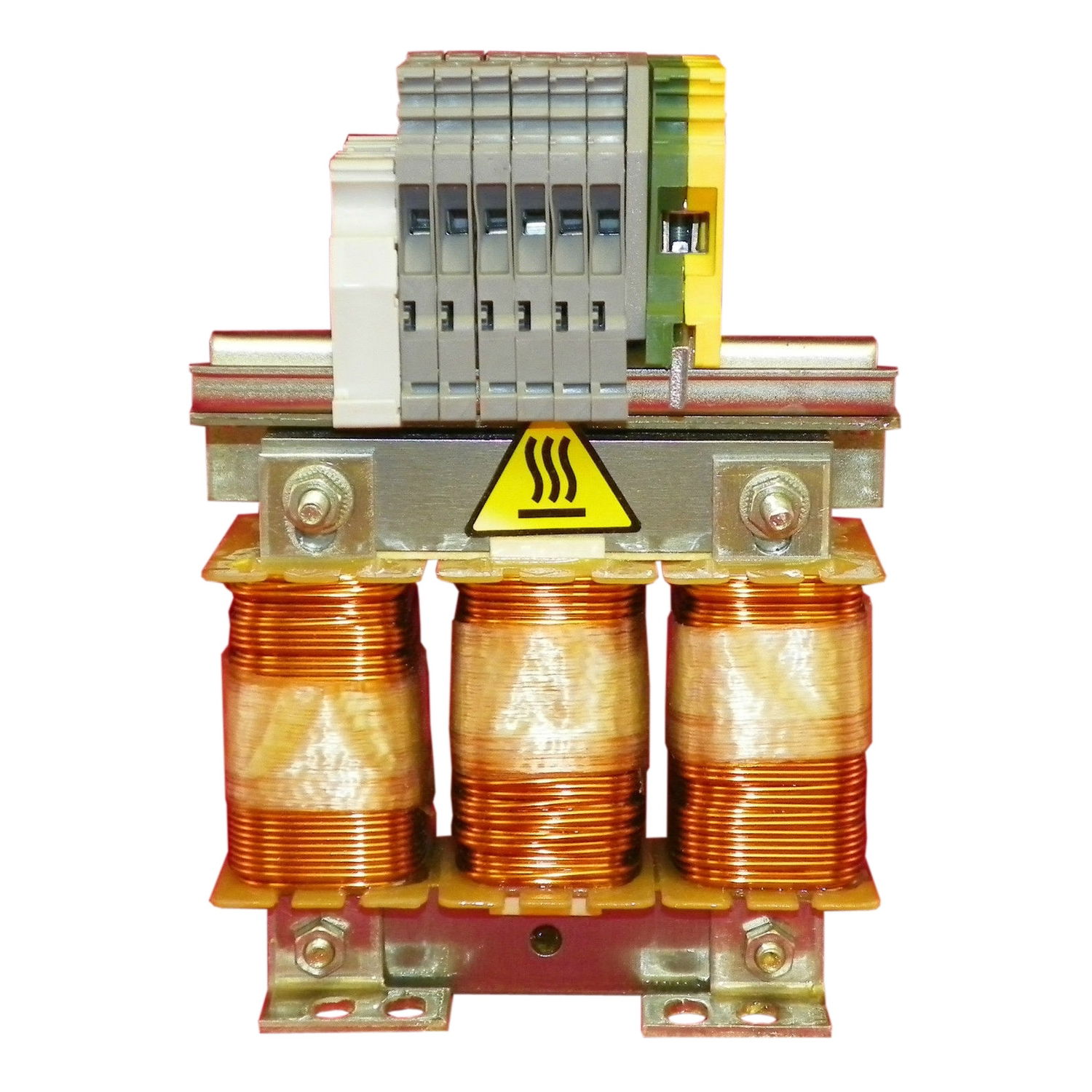

Line/motor choke - 2 mH - 17 A - 3 phases - 75 W - for variable speed drive
Line/motor choke - 2 mH - 17 A - 3 phases - 75 W - for variable speed drive
Line/motor choke - 2 mH - 17 A - 3 phases - 75 W - for variable speed drive by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and Rexel Group. It is currently in stock at 1 of them. Trade prices range from £265.06 to £275.78 excl. VAT. Voltimum+ members earn 34 points per unit.
This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 17A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 2mH. It weighs 3.5kg and its dimensions are, 130mm wide, 155mm high, 90mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.
Product identifiers
SKU: VW3A4553
EAN: 3389118066038
GTIN: 3389118066038
MPN: VW3A4553
Loyalty points:
34
Price range: £ 265.06 - £ 275.78 Excl. VAT
Categories
ETIM group
Specifications
| Rated current AC | |
| Rated inductance | 2 mH |
| Resonance frequency | - |
| Rated clock frequency | - |
| Degree of protection (IP) | IP00 |
| Rated operating frequency | |
| Degree of protection (NEMA) | - |
| Number of poles, primary side | 3 |
