| Load |
600 - 600 |

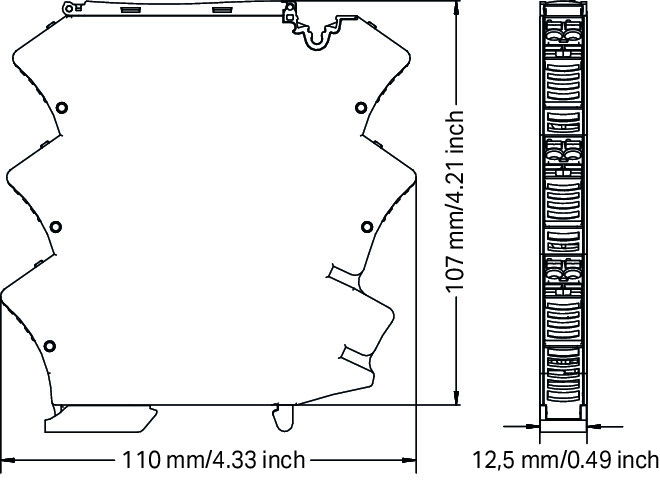

| Depth |
110 |
| Width |
12.5 |
| Height |
110 |
| Load influence |
- |
| Mounting method |
Snap mounting support rail |
| Switching power |
- |
| Power consumption |
- |
| Switching current |
- |
| Switching voltage |
- |
| Temperature drift |
0.01 |
| Number of channels |
1 |
| Device construction |
Other |
| Switching frequency |
- |
| Type of power supply |
Other |
| Operating temperature |
-40 - 70 |
| Rated supply voltage AC |
|
| Rated supply voltage DC |
16.8 - 31.2 |
| Degree of protection (IP) |
IP20 |
| Rated operating frequency |
|
| Malfunction message output |
yes |
| SIL according to IEC 61508 |
- |

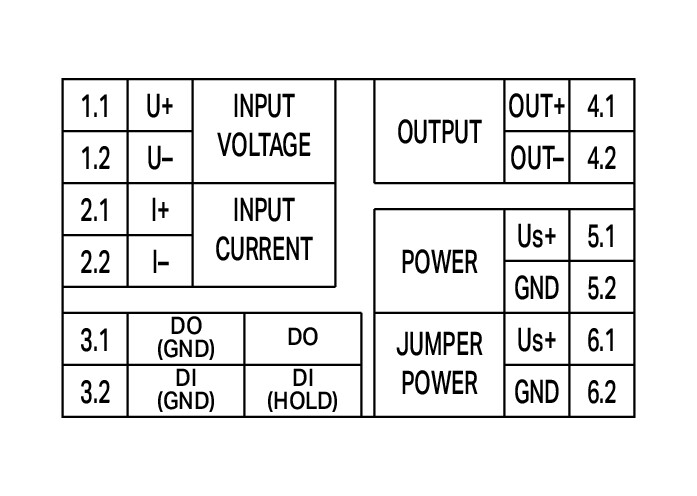

| Type of electric connection |
Spring clamp connection |
| Galvanic separation between inputs |
yes |
| Number of input ranges 0 V ... 1 V |
1 |
| Number of input ranges 0 V ... 2 V |
0 |
| Number of input ranges 0 V ... 5 V |
1 |
| Number of input ranges 1 V ... 5 V |
1 |
| Number of input ranges 5 V ... 0 V |
0 |
| Number of input ranges 5 V ... 1 V |
0 |
| Number of input ranges 0 V ... 10 V |
1 |
| Number of input ranges 0 V ... 20 V |
0 |
| Number of input ranges 0 V ... 24 V |
0 |
| Number of input ranges 0 V ... 30 V |
1 |
| Number of input ranges 10 V ... 0 V |
0 |
| Number of input ranges 10 V ... 2 V |
0 |
| Number of input ranges 2 V ... 10 V |
1 |
| Number of output ranges 0 V ... 1 V |
0 |
| Number of output ranges 0 V ... 2 V |
0 |
| Number of output ranges 0 V ... 5 V |
1 |
| Number of output ranges 1 V ... 5 V |
1 |
| Number of output ranges 5 V ... 0 V |
0 |
| Number of output ranges 5 V ... 1 V |
0 |
| Number of input ranges +5 V ... -5 V |
1 |
| Number of input ranges -1 V ... +1 V |
1 |
| Number of input ranges -2 V ... +2 V |
0 |
| Number of input ranges -5 V ... +5 V |
0 |
| Number of input ranges 0 V ... 2.5 V |
0 |
| Number of input ranges 0 mA ... 5 mA |
0 |
| Number of output ranges 0 V ... 10 V |
1 |
| Number of output ranges 0 V ... 20 V |
0 |
| Number of output ranges 0 V ... 24 V |
0 |
| Number of output ranges 0 V ... 30 V |
0 |
| Number of output ranges 10 V ... 0 V |
0 |
| Number of output ranges 10 V ... 2 V |
0 |
| Number of output ranges 2 V ... 10 V |
1 |
| Number of input ranges 0 mA ... 10 mA |
0 |
| Number of input ranges 0 mA ... 20 mA |
0 |
| Number of input ranges 0 mV ... 60 mV |
0 |
| Number of input ranges 20 mA ... 0 mA |
0 |
| Number of input ranges 20 mA ... 4 mA |
0 |
| Number of input ranges 4 mA ... 20 mA |
0 |
| Number of output ranges +5 V ... -5 V |
1 |
| Number of output ranges -1 V ... +1 V |
0 |
| Number of output ranges -2 V ... +2 V |
0 |
| Number of output ranges -5 V ... +5 V |
1 |
| Number of output ranges 0 V ... 2.5 V |
0 |
| Number of output ranges 0 mA ... 5 mA |
0 |
| Number of input ranges +10 V ... -10 V |
1 |
| Number of input ranges -10 V ... +10 V |
1 |
| Number of input ranges -20 V ... +20 V |
0 |
| Number of input ranges -5 mA ... +5 mA |
0 |
| Number of input ranges 0 mV ... 100 mV |
0 |
| Number of input ranges 0 mV ... 200 mV |
0 |
| Number of input ranges 0 mV ... 300 mV |
0 |
| Number of input ranges 0 mV ... 500 mV |
0 |
| Number of output ranges 0 mA ... 10 mA |
1 |
| Number of output ranges 0 mA ... 20 mA |
1 |
| Number of output ranges 0 mV ... 60 mV |
0 |
| Number of output ranges 20 mA ... 0 mA |
0 |
| Number of output ranges 20 mA ... 4 mA |
0 |
| Number of output ranges 4 mA ... 20 mA |
1 |
| Number of output ranges +10 V ... -10 V |
1 |
| Number of output ranges -10 V ... +10 V |
1 |
| Number of output ranges -20 V ... +20 V |
0 |
| Number of output ranges -5 mA ... +5 mA |
0 |
| Number of output ranges 0 mV ... 100 mV |
0 |
| Number of output ranges 0 mV ... 200 mV |
0 |
| Number of output ranges 0 mV ... 300 mV |
0 |
| Number of output ranges 0 mV ... 500 mV |
0 |
| Number of input ranges -10 mA ... +10 mA |
0 |
| Number of input ranges -2.5 V ... +2.5 V |
0 |
| Number of input ranges -20 mA ... +20 mA |
0 |
| Number of input ranges -60 mV ... +60 mV |
0 |
| Number of output ranges -10 mA ... +10 mA |
1 |
| Number of output ranges -2.5 V ... +2.5 V |
0 |
| Number of output ranges -20 mA ... +20 mA |
1 |
| Number of output ranges -60 mV ... +60 mV |
0 |
| Number of input ranges -100 mV ... +100 mV |
1 |
| Number of input ranges -300 mV ... +300 mV |
0 |
| Number of input ranges -500 mV ... +500 mV |
0 |
| Number of output ranges -100 mV ... +100 mV |
0 |
| Number of output ranges -300 mV ... +300 mV |
0 |
| Number of output ranges -500 mV ... +500 mV |
0 |
| Galvanic separation between input and output |
yes |
| Galvanic separation between output to output |
no |
| Inherently safe according to EN 60947-5-6 NAMUR |
no |
| Galvanic separation between supply voltage and all other current circuits |
yes |
