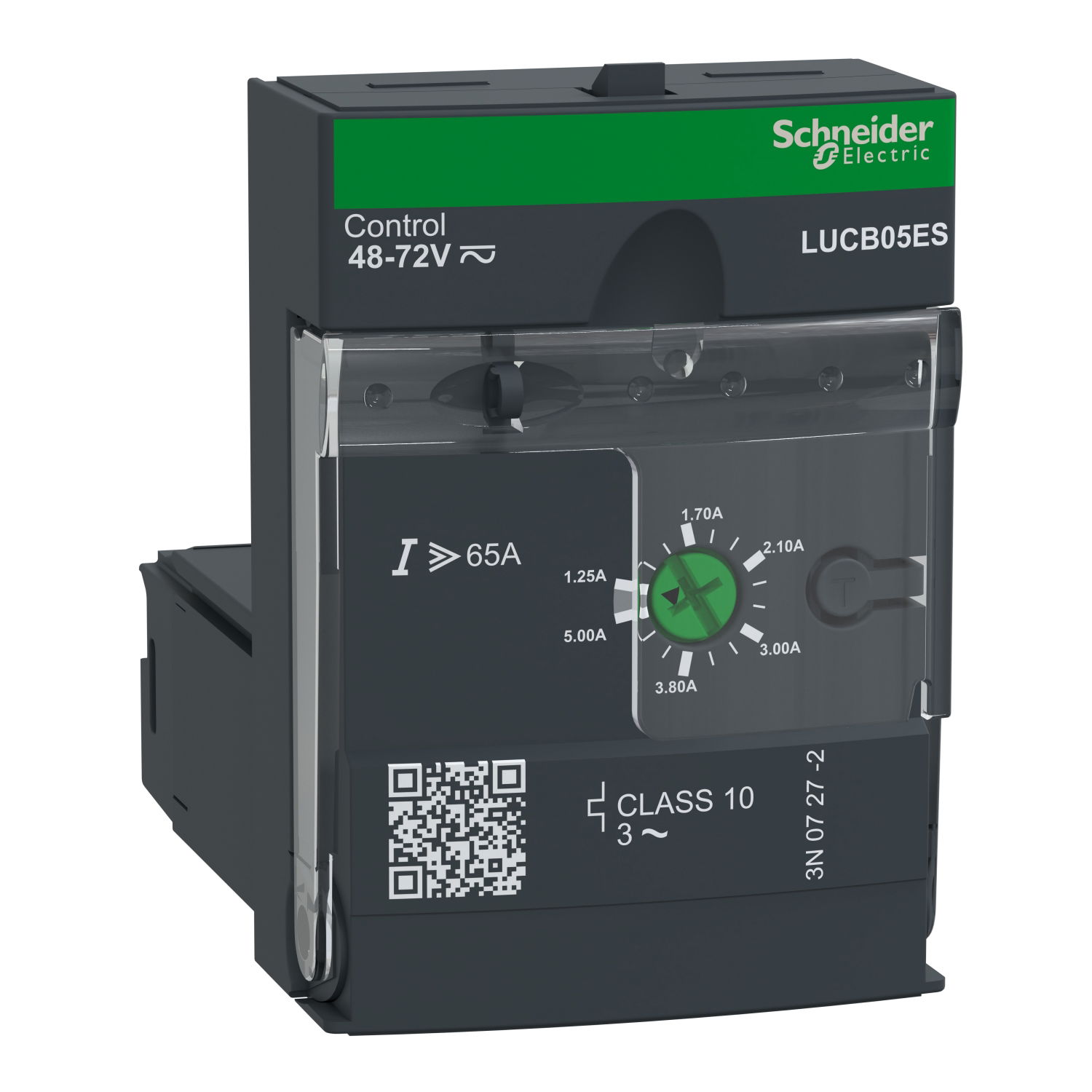

Advanced control unit, TeSys U, 1.25-5A, 3P motors, protection & diagnostic, class 10, coil 48-72V AC/DC

Name: Advanced control unit, TeSys U, 1.25-5A, 3P motors, protection & diagnostic, class 10, coil 48-72V AC/DC
Brand: Schneider Electric
SKU: LUCB05ES
Availability: InStock

Advanced control unit, TeSys U, 1.25-5A, 3P motors, protection & diagnostic, class 10, coil 48-72V AC/DC by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £114.36 to £115.50 excl. VAT. Voltimum+ members earn 14 points per unit.

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 1.5kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). For diagnostics, it provides a thermal overload alarm to be managed with an additional function module (to be ordered separately) and a test push button for overload simulation. To be used with a 48V AC / 48-72V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Product identifiers

SKU: LUCB05ES

EAN: 3389110364200

GTIN: 3389110364200

MPN: LUCB05ES

Loyalty points: 14

Price range: £ 114.36 - £ 115.50 Excl. VAT

Specifications

Depth	60 mm
Width	45 mm
Height	66 mm
Number of poles	3
Supply voltage DC
Operating voltage DC
Rated switch current	-
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Type of motor protection	Electronic release
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated permanent current Iu	5 A
Voltage type (supply voltage)	AC/DC
External power supply required	yes
Short-circuit release function	Undelayed
Overload release current setting
Voltage type (operating voltage)	AC
With ground fault protection function	yes
Current setting delayed short-circuit release
Current setting undelayed short-circuit release
Number of auxiliary contacts as change-over contact	-
Number of auxiliary contacts as normally open contact	-
Number of auxiliary contacts as normally closed contact	-
