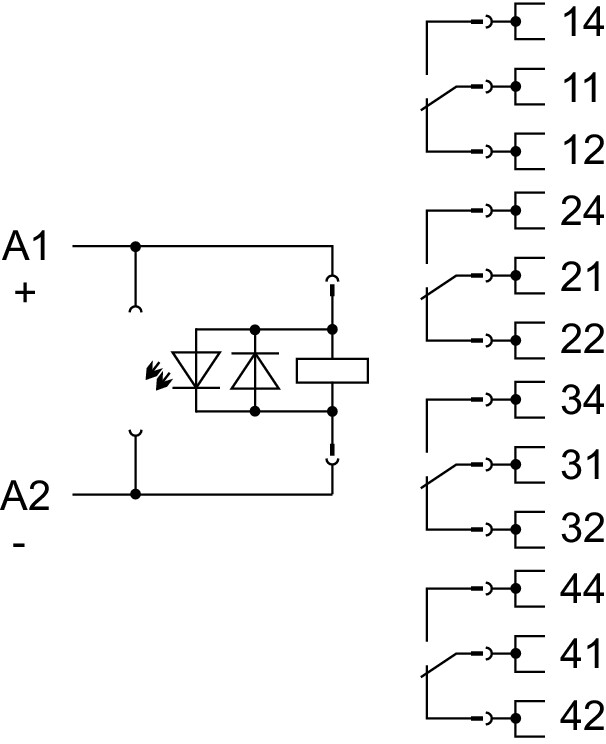

Relay module Nominal input voltage: 24 VDC 4 changeover contacts
Relay module; Nominal input voltage: 24 VDC; 4 changeover contacts; Limiting continuous current: 5 A; with gold contacts; with manual operation; Red status indicator; Module width: 31 mm; 1,50 mm²
Product identifiers
SKU: 858-314
EAN: 4055143567893
GTIN: 4055143567893
MPN: 858-314
Loyalty points:
2
Price: £ 16.22 Excl. VAT
Categories
Features
|
Depth
|
97
|
|
Width
|
31
|
|
Height
|
97
|
|
Nominal current
|
5
|
|
Material contact
|
-
|
|
Drive, polarization
|
Polarized
|
|
With LED indication
|
yes
|
|
Complete with socket
|
yes
|
|
Operating voltage DC
|
|
|
Max. starting current
|
-
|
|
Type of switch contact
|
Single contact
|
|
With detachable clamps
|
no
|
|
Degree of protection (IP)
|
IP20
|
|
Drive, switching attitude
|
Mono stable
|
|
Material of contact insert
|
-
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Voltage type for actuating
|
DC
|
|
Material of contact surface
|
-
|
|
Type of electric connection
|
Spring clamp connection
|
|
With forced-guided contacts
|
no
|
|
Rated control supply voltage DC
|
24 - 24
|
|
Voltage type (operating voltage)
|
-
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Number of contacts as change-over contact
|
4
|
|
Number of contacts as normally open contact
|
0
|
|
Number of contacts as normally closed contact
|
0
|
|
Relay technology category according to IEC 61810-7
|
-
|
