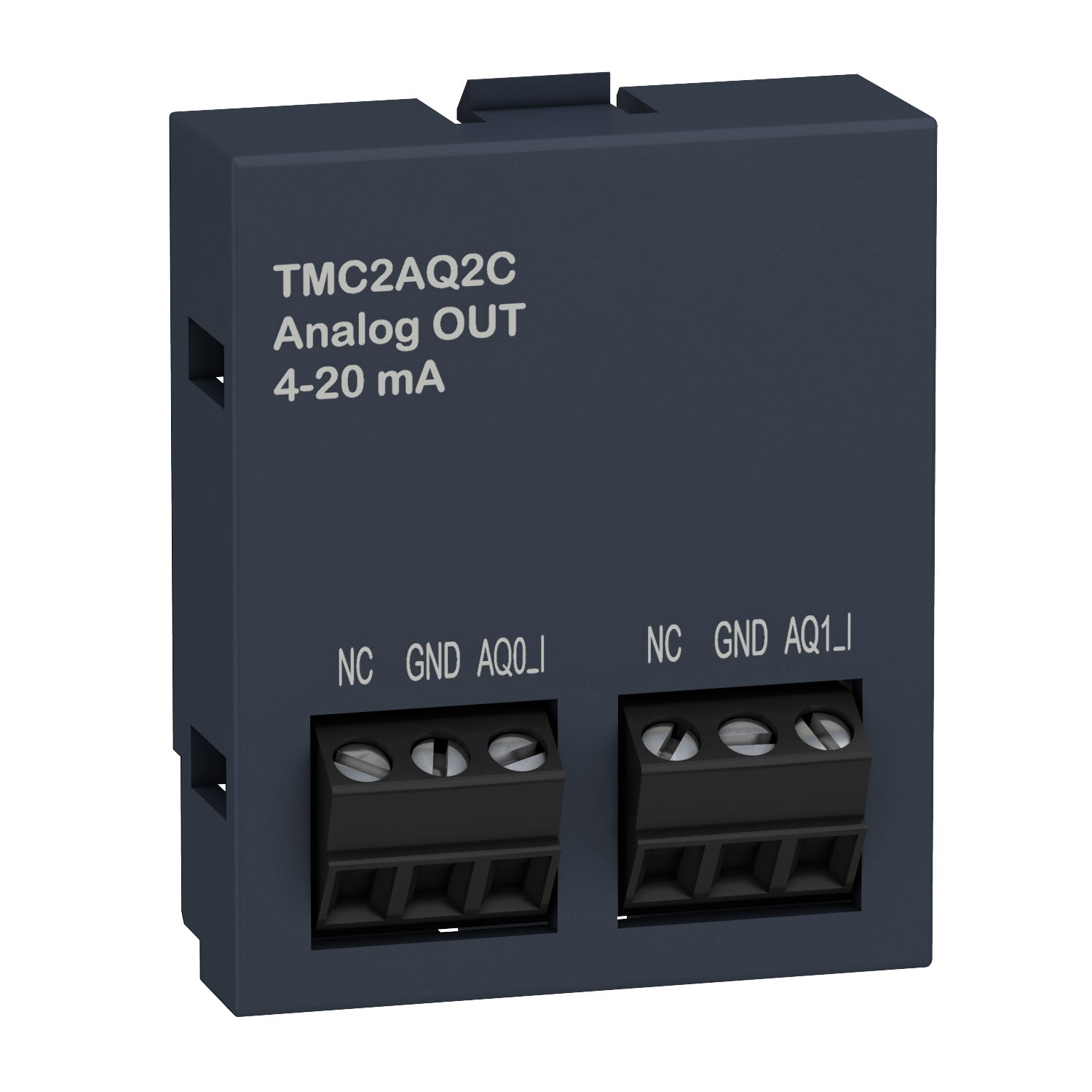

Analogue output cartridge, Modicon M221, 2 analog current outputs, I/O extension

Link copied
SKU
EAN
GTIN
MPN

Analogue output cartridge, Modicon M221, 2 analog current outputs, I/O extension by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, RS Components and TLA. It is currently in stock at all of them. Trade prices range from £80.99 to £81.80 excl. VAT. Voltimum+ members earn 10 points per unit.

cartridge M221 - 2 analog current outputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analog input cartridge is an option for Modicon M221C logic controller. It provides 2 current analog outputs with 12bit input resolution. The analog input type is 4…20 mA current. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.

Voltimum+ Loyalty Programme Loyalty points: 10

Price range: £ 80.99 - £ 81.80 Excl. VAT

Specifications

Depth 15 mm
Width 35 mm
Height 41 mm
Input, current no
Input, voltage no
Input, resistor no
Output, current yes
Output, voltage no
Input, thermocouple no
Input signal, configurable no
Output signal configurable no
Type of electric connection Screw connection
Analogue outputs configurable no
Suitable for safety functions no
Appendant operation agent (Ex ib) no
Resolution of the analogue inputs 12 Bit
Resolution of the analogue outputs 12 Bit
