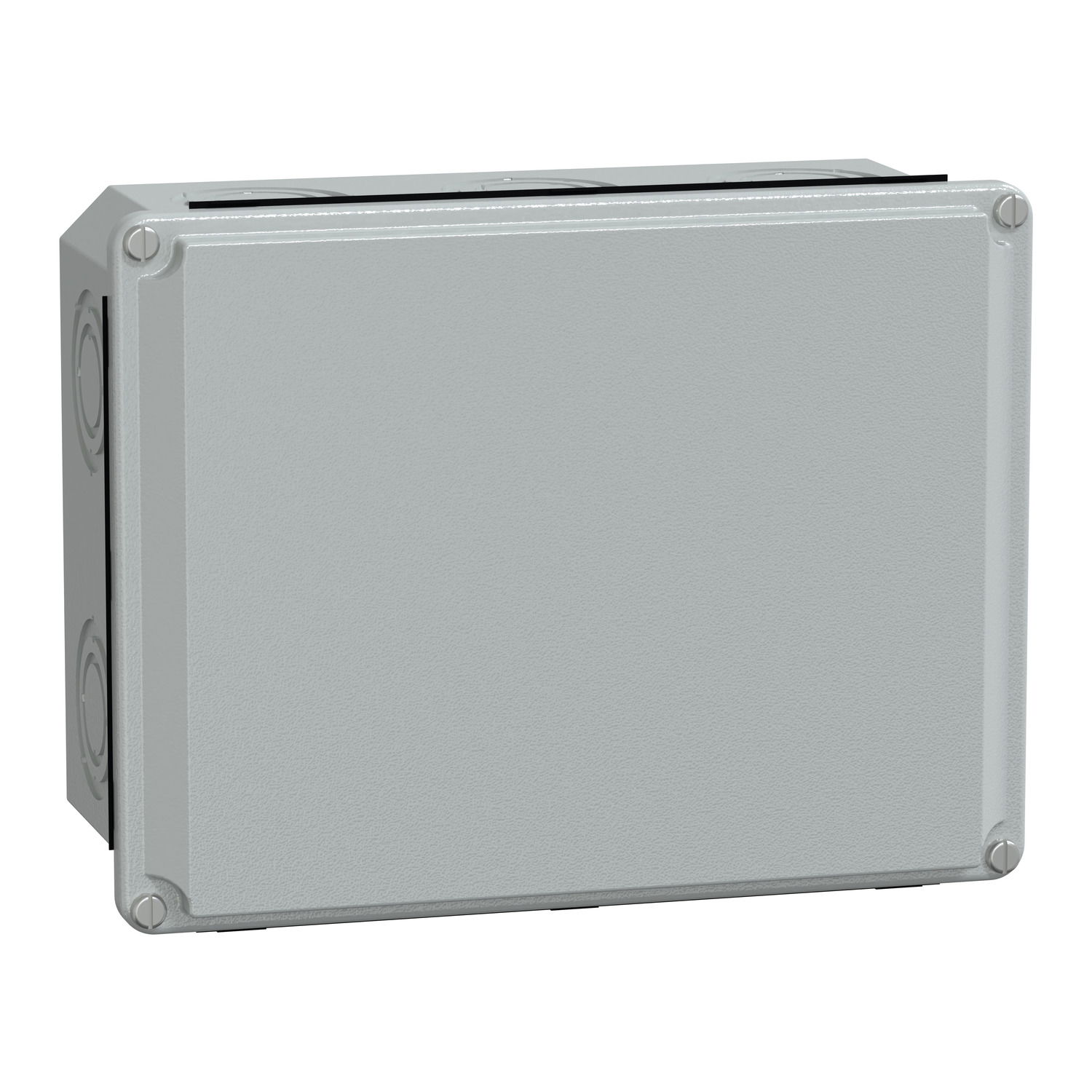

Metal industrial cut-out box - low plain cover - H206xW156xD83 - IP55 - grey

Name: Metal industrial cut-out box - low plain cover - H206xW156xD83 - IP55 - grey
Brand: Schneider Electric
SKU: NSYDB2015M
Price: 23.72 GBP
Availability: InStock

Product identifiers

SKU: NSYDB2015M

EAN: 3606480187780

GTIN: 3606480187780

MPN: NSYDB2015M

Loyalty points: 4

Price: £ 23.72 Excl. VAT

ETIM Group

Connection material (electrotechnical)

Specifications

Depth	83 mm
Model	Junction box
Shape	Rectangular
Width	156 mm
Colour	Grey
Length	206 mm
Castable	no
Diameter	-
Material	Steel
Sealable	no
Connectable	no
Cover model	Blind cover
Halogen free	-
Weatherproof	yes
Equipped with	None
With screening	no
For Ex-zone gas	None
Mounting method	Wall-/ceiling mounting
Cover attachment	Screwed
For Ex-zone dust	None
Number of inlets	3
Circuit integrity	None
For tube diameter	Other
Transparent cover	no
Surface protection	Other
Inlet from the rear	no
Mounting in the soil	no
Mounting under water	no
Operating temperature
Explosion-tested version	no
Casting compound included	no
Degree of protection (IP)	IP55
Degree of protection (NEMA)	13
Rated insulation voltage Ui	-
Max. conductor cross section	40.5 mm²
Type of housing feed-through	Trimmable step membrane

Documents

Deeplink product page
Environmental compliance declaration
Product data sheet
Environmental compliance declaration
Environmental disclosure
