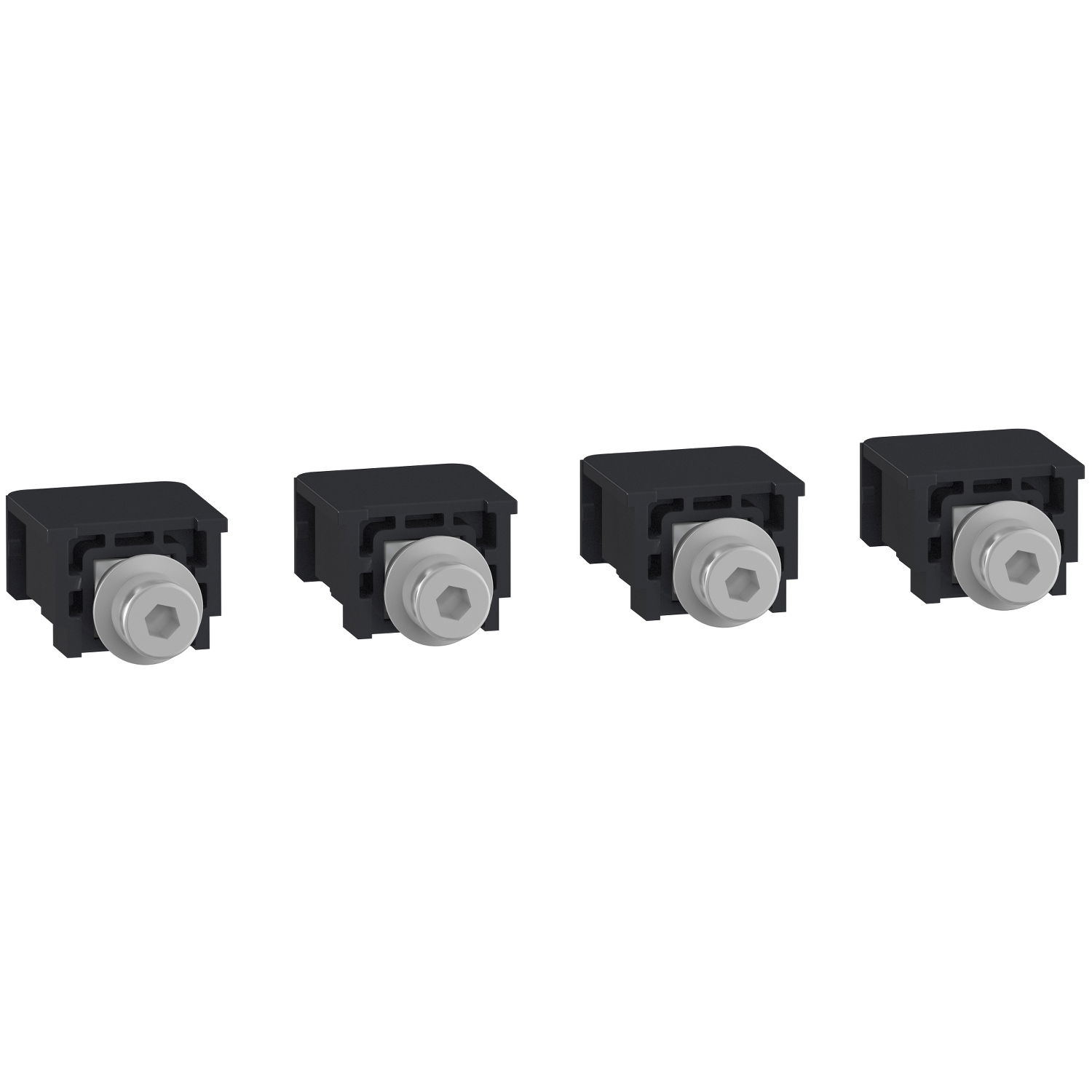

Compression lug/busbar connector for 4P

It is a set of 4 compression lugs/busbar connectors for Compact NSXm devices. They are used for a direct connection of insulated bares/cables or for a terminal extension. It offers a wide range of connection possibilities. These terminals are captive nuts with M6 screws. The current range is 15 to 160 A. The torque is 5 N.m +/- 0.5 for power connection ≤ 10 mm² or 9 N.M +/- 0.9 for power connection ≥ 16 mm². Interphase barriers or terminal shields are recommended.
