Selector switch, metal, black, Ø22, 3 positions, stay put, 2 NO

Link copied

SKU
EAN
GTIN
MPN

Selector switch, metal, black, Ø22, 3 positions, stay put, 2 NO by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £15.92 to £58.80 excl. VAT. Voltimum+ members earn 3 points per unit.

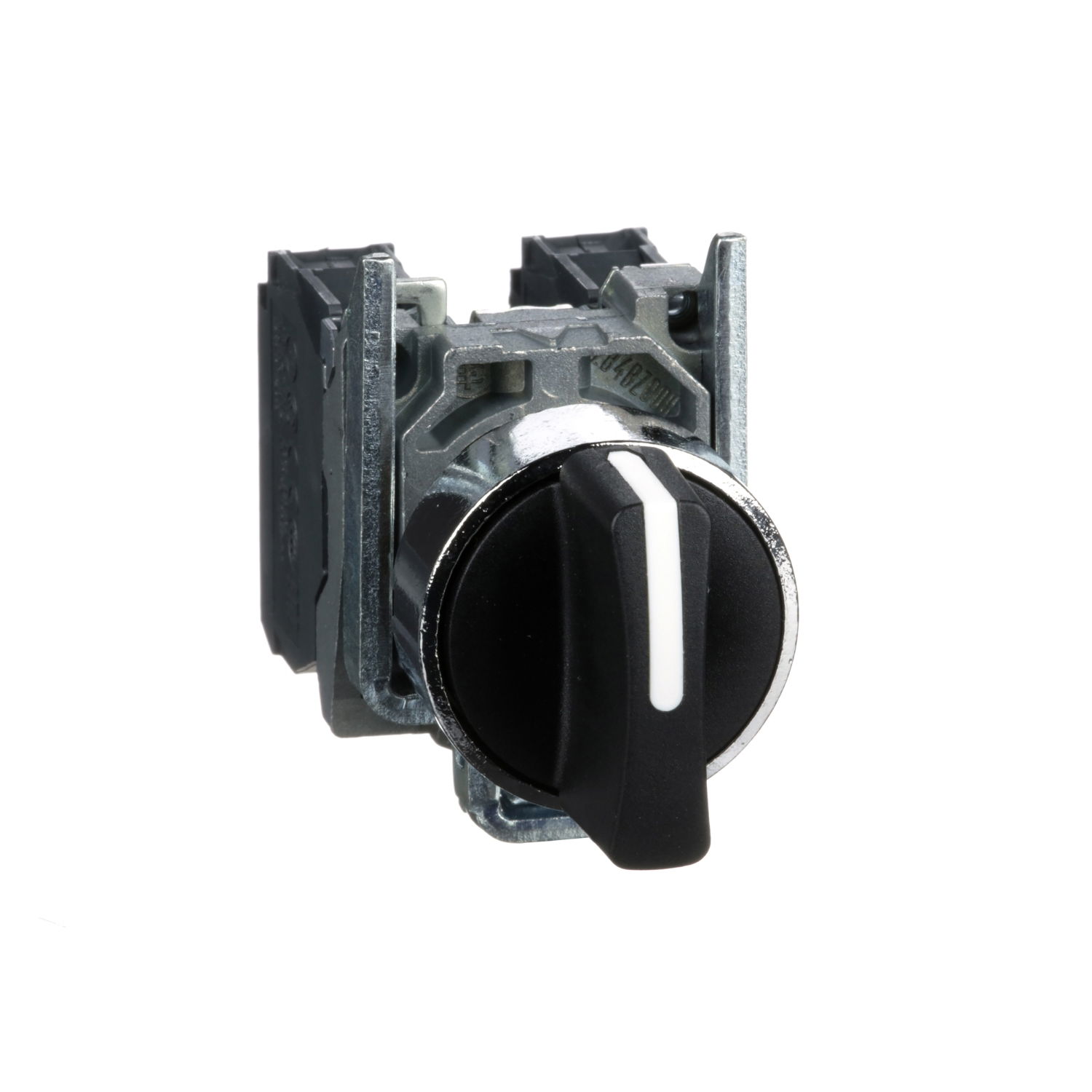

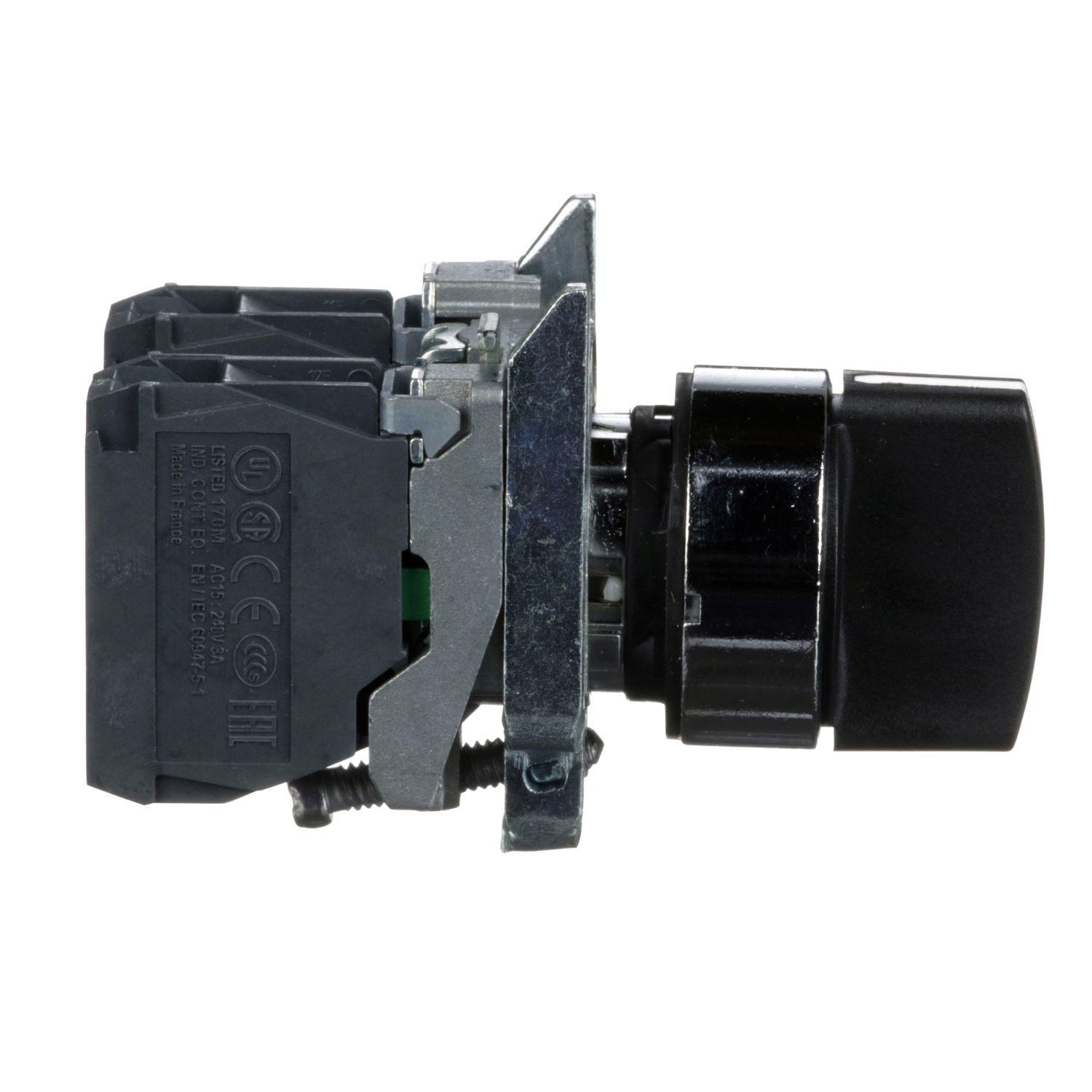

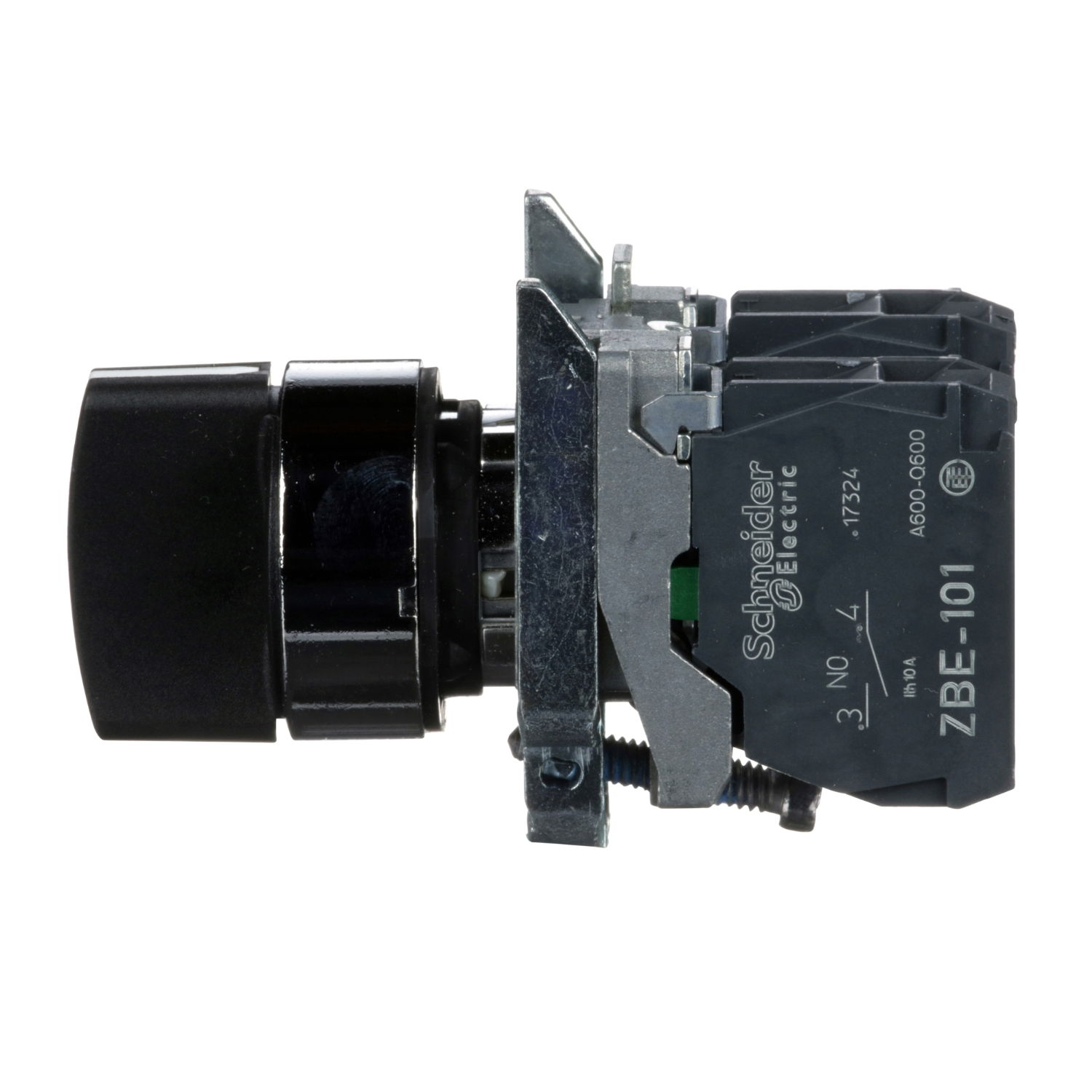

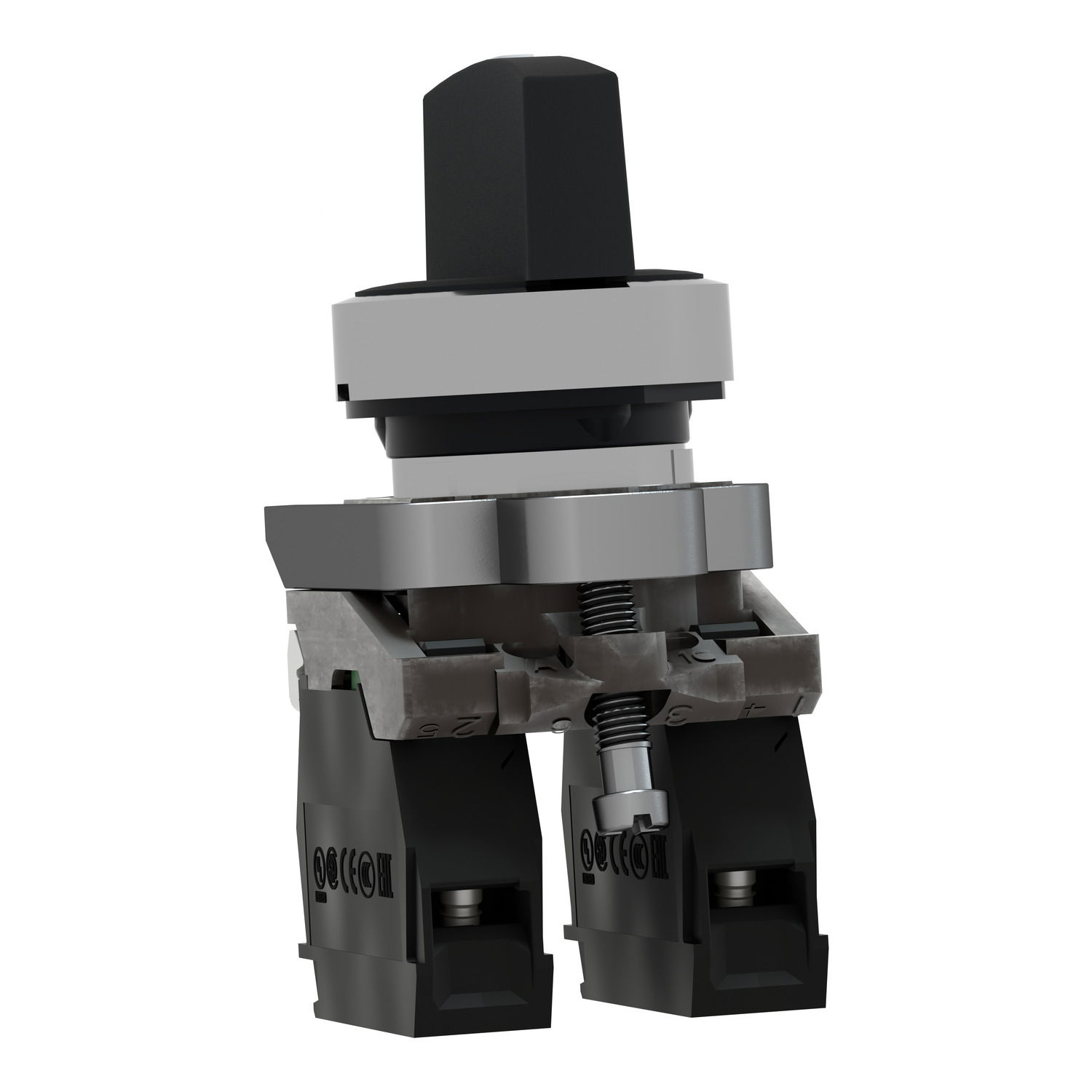

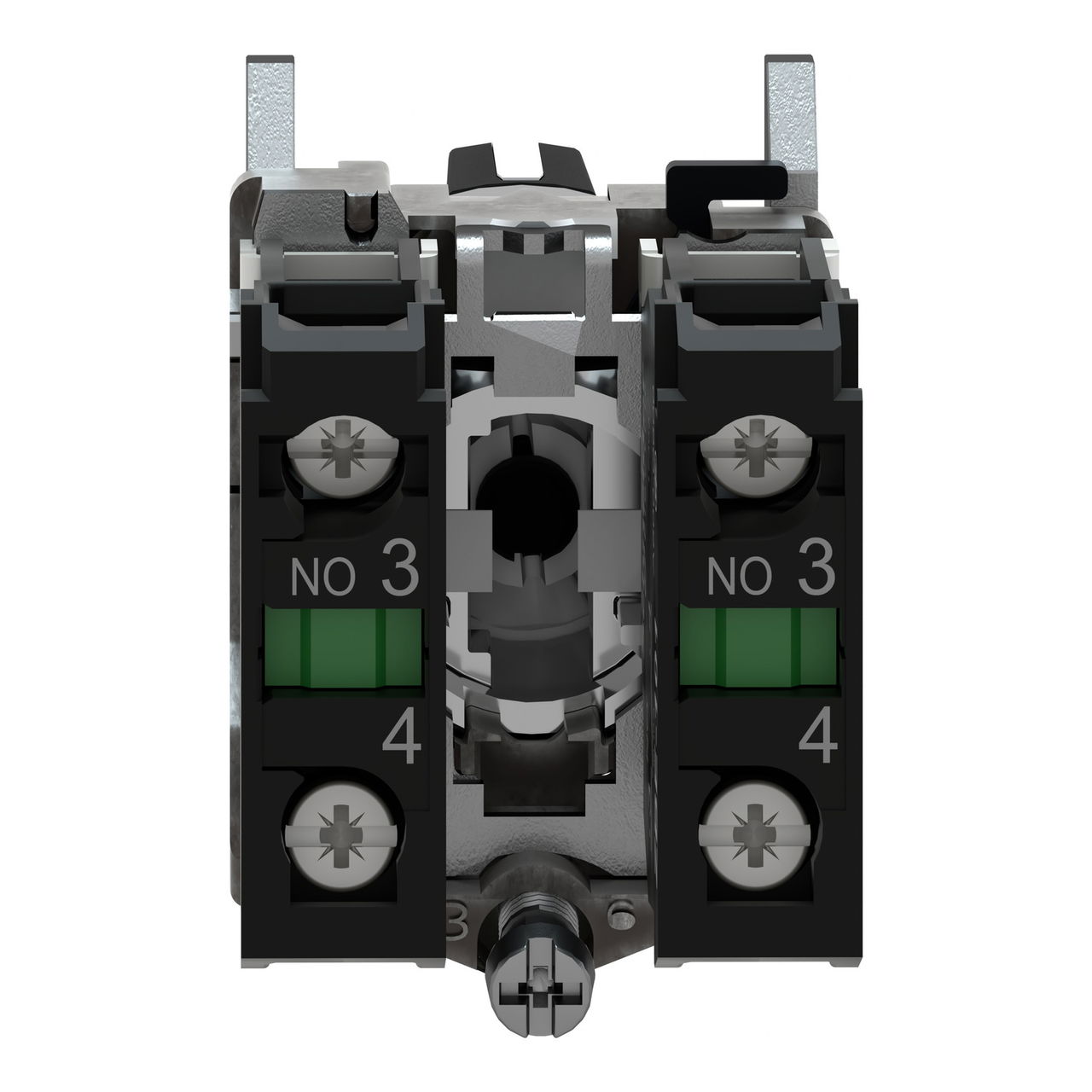

This Harmony XB4 modular black selector switch has 3 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Loyalty points: 3

Price range: £ 15.92 - £ 58.80 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Power loss	-
Colour button	Black
Hole diameter	22.5 mm
Spring-return	no
Width opening	-
Height opening	-
Supply voltage
With front ring	yes
Colour front ring	Chrome
With light source	no
Material front ring	Metal
Suitable for lighting	no
Type of control element	Short thumb-grip
Degree of protection (IP)	IP67/IP69K
Number of switch positions	3
Degree of protection (NEMA)	13
Switching function latching	yes
Type of electric connection	Screw connection
Number of contacts as change-over contact	0
Number of contacts as normally open contact	2
Number of contacts as normally closed contact	0

Documents

Declaration of Conformity (Sustainability)

XB4BD33 REACh Regulation
