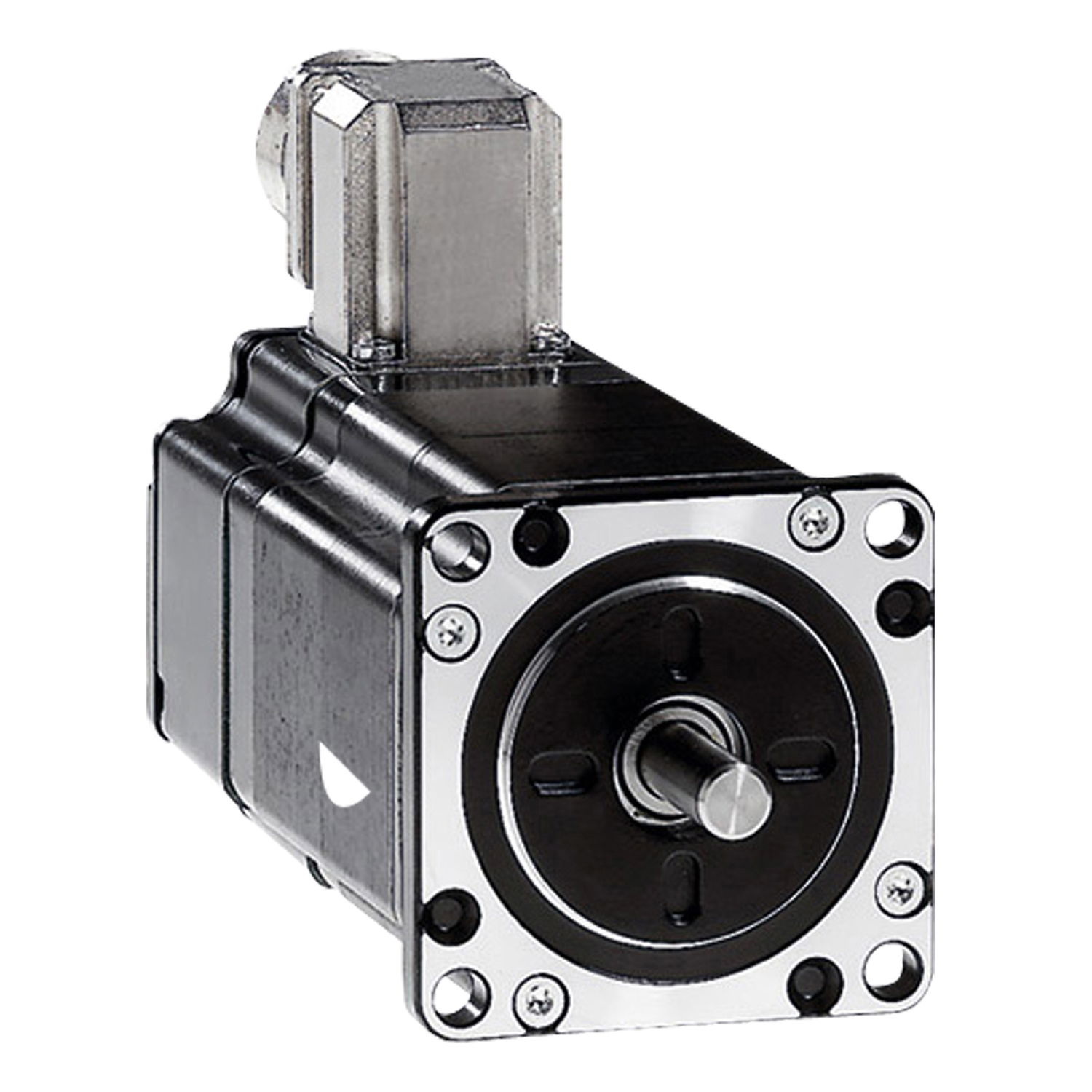

3-phase stepper motor - 1.02 Nm - shaft Ø6.35 mm - L=56 mm - without brake -wire

"This product is part of the Lexium SD3 range, an offer of 3phase stepper drives and stepper motors." "This is a 3phase stepper motor that features a maximum mechanical speed of 3000RPM, a smooth shaft end (diameter 6.35mm), without holding brake." "It has one angled connector for electrical wiring." "It carries out precise step-by-step movements that are predefined by a stepper motor drive." "Its stepper capacity is 200 steps per 1.8 degrees, 400 per 0.9, 500 per 0.72, 1000 per 0.36, 2000 per 0.18, 4000 per 0.09, 5000 per 0.072, and 10000 per 0.036." "Its supply voltage is 34VDC to 48VDC, rated current is 5.8A, nominal torque is 0.9Nm, time constant is 3.3ms, degree of protection is IP56, shaft end is IP41." "The motor flange size is 57.2mm, fixed by 4x 5.2mm holes. The circle diameter of the mounting holes is 66.6mm. It weighs 1.6kg." "This stepper motor is designed for Lexium SD3 drives." "This product is certified by CE, CUL, and UL. It meets EN/IEC 50178, EN/IEC 61800-5-1, EN/IEC 61800-3 environment 1/2, and EN/IEC 61800-3 standards." "It is compatible with SD315 stepper motor drives." "Those mounting positions are allowed per IEC 60034-7 as IM B5 shaft horizontal, IM V1 shaft vertical, shaft end down, IM V3 shaft vertical, shaft end up." "The SD3 is an universally applicable stepper motor drive." "Stepper drives and stepper motors are for motion control with high accuracy and high torque at low rotation speeds."
