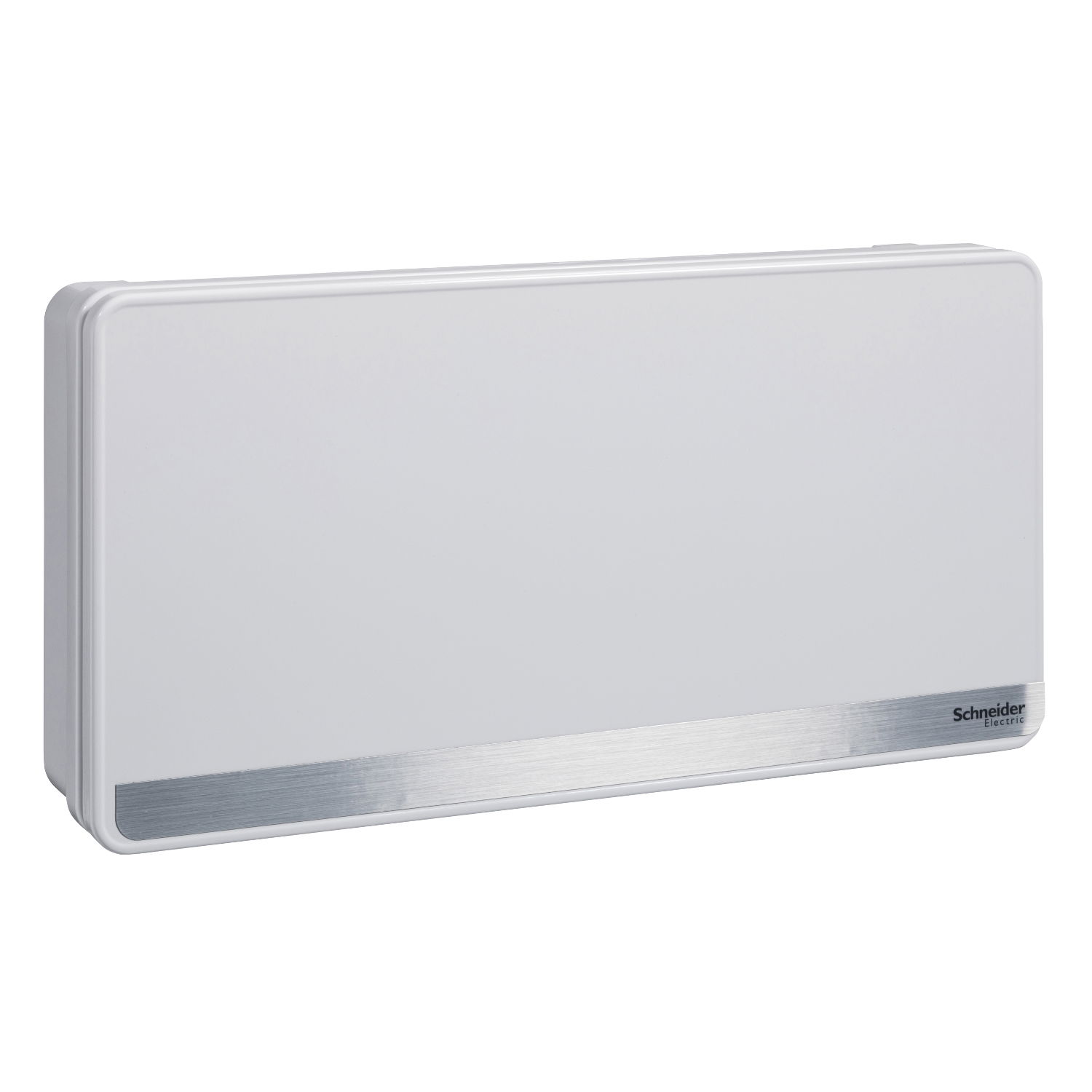

20 way Metal Easy9 Consumer Unit

Link copied
SKU
EAN
GTIN
MPN

20 way Metal Easy9 Consumer Unit by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including RS Electrical Supplies, Rexel Group and City Electrical Factors. It is currently in stock at 2 of them. Trade prices range from £41.32 to £87.96 excl. VAT. Voltimum+ members earn 42 points per unit.

This Easy9 product is an empty consumer unit. It can be surface or flush mounted. Rigid metal DIN rail: solid to avoid flexing and raised for cabling flexibility Secure busbar guard: requires tool for removal, ensuring more safety for you New MCB style blanking module: additional end user safety feature, requiring enclosure cover to be removed first The dimensions are (W) 536.8mm x (H) 276.8mm x (D) 119.55mm. The product weight is 7.03 kg. The color of the consumer unit is white (RAL 9003). The enclosure is made of metal. The degree of protection is IPXX D on top and IP3X with cover. According to IEC 62262 standard, the degree of protection is IK05. This consumer unit complies with BS 7671 amendment 3 and BS EN 61439-3 standards.

Voltimum+ Loyalty Programme Loyalty points: 42

Price range: £ 41.32 - £ 87.96 Excl. VAT

Specifications

Depth 120 mm
Model Surface mounting
Width 537 mm
Height 277 mm
Housing material Steel
With transparent cover no
Degree of protection (IP) IP3X
Degree of protection (NEMA) -

Documents

Declaration of Conformity (Sustainability)

EZ9E20MCU REACh Regulation

Open

Product data sheet

Open

Catalog

Easy9 Catalogue and Technical Guide

Open

Declaration of Conformity (Sustainability)

EZ9E20MCU EU RoHS Directive

Open

Declaration of Conformity (Sustainability)

EZ9E20MCU OECD PFAS Regulation

Open

Declaration of Conformity (Sustainability)

EZ9E20MCU POP Directive

Open
