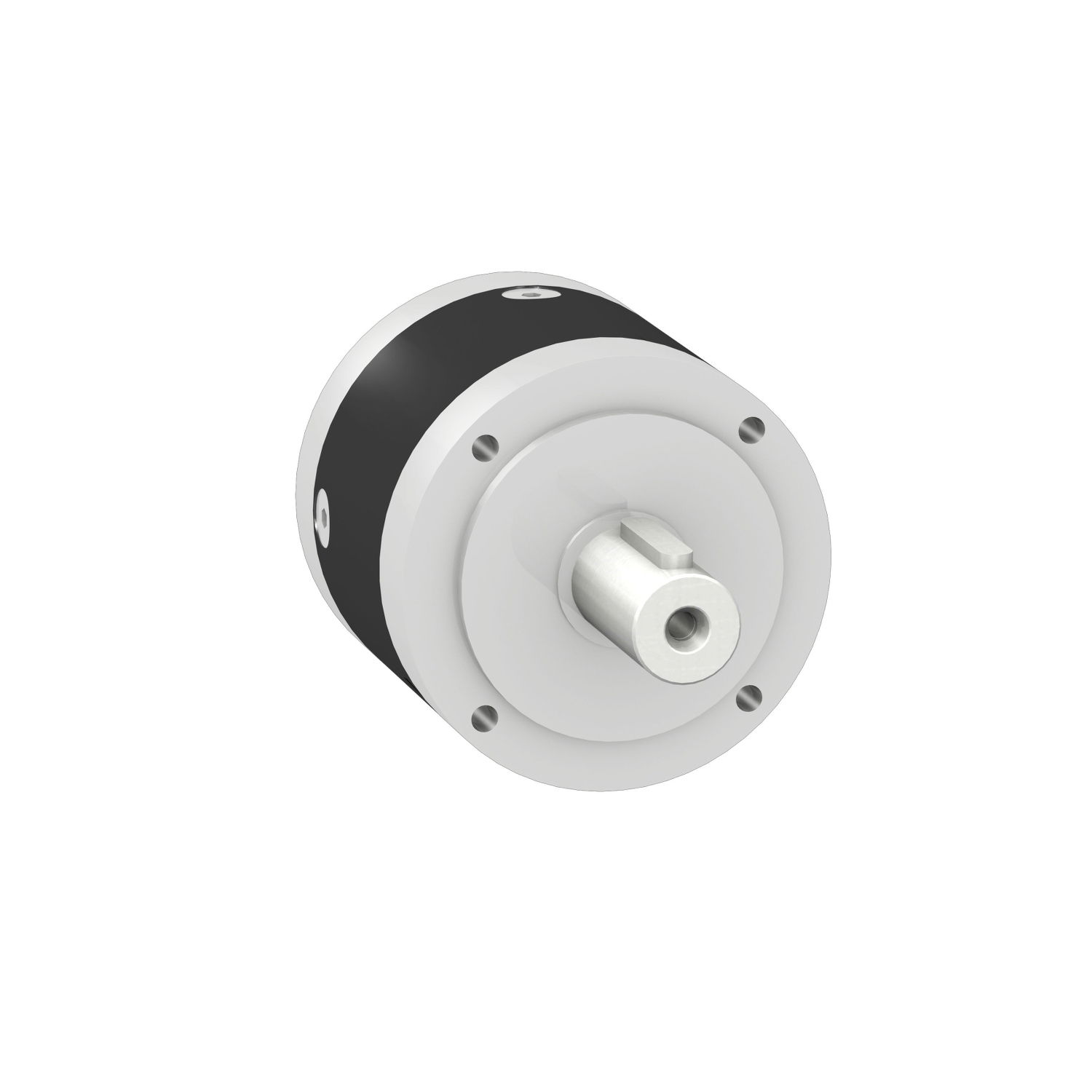

Gearbox straight teeth GBX - Ø 60 mm - reduction 4:1 < 10 arc.min - 38 N.m

Gearbox straight teeth GBX - Ø 60 mm - reduction 4:1 < 10 arc.min - 38 N.m by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £292.26 excl. VAT. Voltimum+ members earn 35 points per unit.

"This product is part of the Lexium SD3 range, an offer of 3phase stepper drives and stepper motors." "This planetary gearbox has straight teeth, lubricated for life." "The gearbox external diameter is 60mm." "This gearbox is to adapt speeds and torques of motors." "This gearbox has a reduction ratio of 4 per 1, maximum axial force of 450N at 100RPM, a continuous output torque of 38N.m at 100RPM at 30degreeC." "It offers service life of about 30000h at 100RPM at 30degreeC. It is an IP54 rated product." "The enclosure is made of black anodized aluminium. It weighs 0.9kg." "It can be mounted in any position." "The SD3 is an universally applicable stepper motor drive." "Stepper drives and stepper motors for motion control."

Product identifiers

SKU: GBX060004K
EAN: 3606480388194
GTIN: 3606480388194
MPN: GBX060004K

Voltimum+ Loyalty Programme Loyalty points: 35

Price: £ 292.26 Excl. VAT

Categories

Building Controls & Automation PLCs

ETIM group

Programmable logic controllers PLC

Specifications

Accessory yes
Spare part no
Type of electrical accessory/spare part Other
Type of mechanical accessory/spare part Other

Documents

Declaration of Conformity (Sustainability)

GBX060004K REACh Regulation

Open

Product data sheet

Open

Catalog

Catalog GBX planetary gearboxes and GBY angular planetary gearboxes For Lexium Servo motors and Lexium 62 integrated drives

Open

Declaration of Conformity (Sustainability)

GBX060004K EU RoHS Directive

Open

Environmental Disclosure

Lexium GBX - Product Environmental Profile

Open

CAD

Open

CAD

Open

CAD

Open
