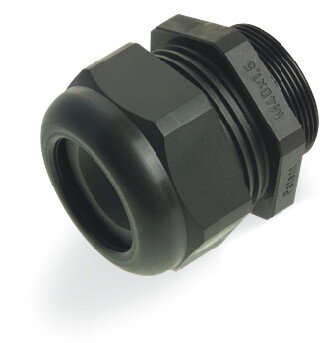

Cable fitting M40 x 1.5 with O-ring Plastic black

Name: Cable fitting M40 x 1.5 with O-ring Plastic black
Brand: Wago
SKU: 895-1601
Availability: OutOfStock

Cable fitting; M40 x 1.5 with O-ring; Plastic; black

Product identifiers

SKU: 895-1601

EAN: 4045454006433

GTIN: 4045454006433

MPN: 895-1601

Price: £ 98.80 Excl. VAT

Cable and wire entry systems

Specifications

Model	Straight
Colour	Black
EF019334	-
EFDE0116	-
Material	Plastic
Screened	no
RAL-number	-
EMC-version	no
Thread type	Metric
Halogen free	yes
Pitch thread	1.5
With locknut	no
Wrench width	-
Thread length	-
For Ex-zone gas	None
Multi seal area	no
Shock resistant	no
Type of sealing	-
For Ex-zone dust	None
Material quality	Polyamide (PA)
Material sealing	-
For armoured cable	no
For wall thickness
Surface protection	Other
With strain relief	no
Flat cable coupling	no
Snapping in opening	no
Operating temperature
Pressure-compensating	-
Separable screw gland	no
Glass-fibre reinforced	no
Explosion-tested version	no
Degree of protection (IP)	IP20
Hexagon angular dimension	-
Connection type to housing	-
Suitable for cable diameter	20 - 26
Nominal thread size metric/PG	40
Bend radius protection/trumpet flare	no
Nominal thread size inch/gas pipe thread	-
