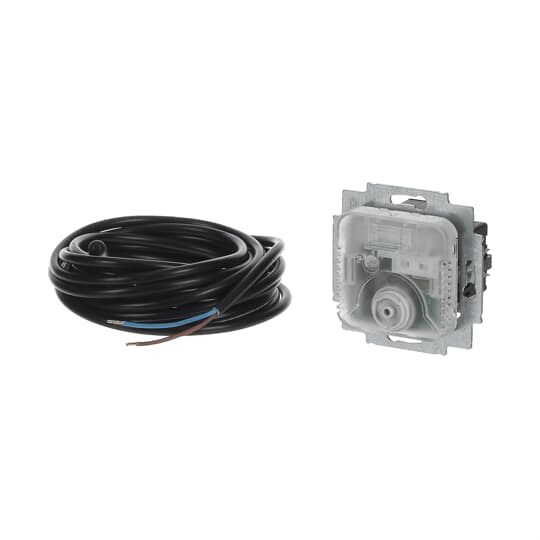

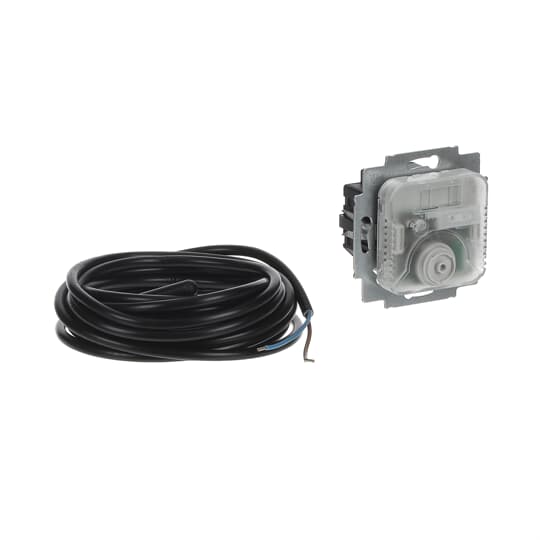

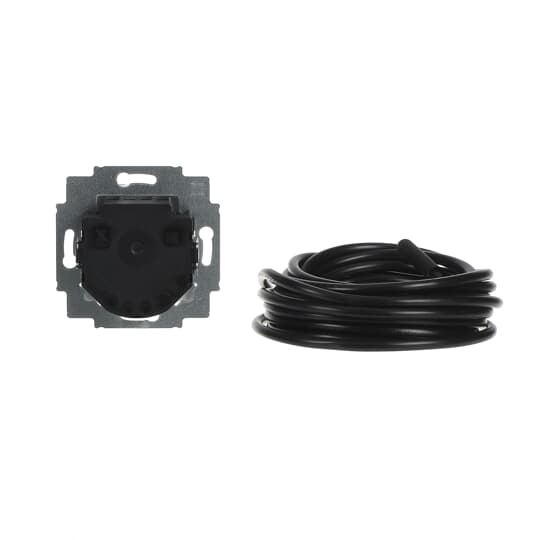

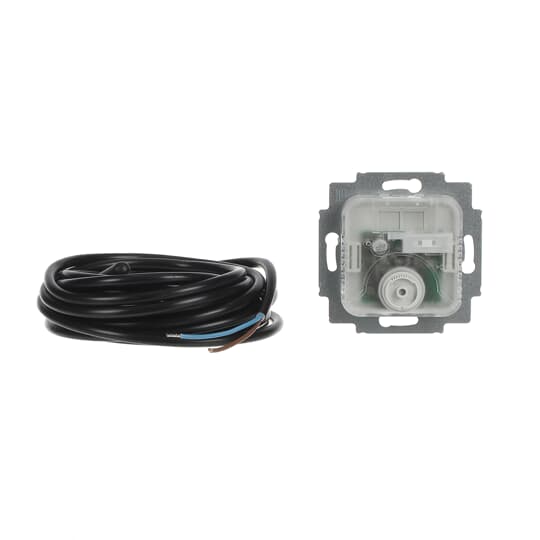

Room thermostat insert Turn Button 230 V AC
With built-in slide switch and control lamp for nightly reduction of 4 K. Switch contact opens when the set temperature is reached. With fixing claws. Remote sensor cable length: 4 m. Sensor =NTC, 10 kilo-ohm at 25 degrees C. Adjusting range: +10 to +50° C. Connecting cable: 1mm² to 2.5 mm² Separate terminal to activate nighttime mode and reduction of room temperature by 4K. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Product identifiers
SKU: 2CKA001032A0498
EAN: 4011395106921
GTIN: 4011395106921
MPN: 1095 UF-507
Loyalty points:
118
Price: £ 236.27 Excl. VAT
Categories
Features
|
Depth
|
48
|
|
Model
|
-
|
|
Width
|
71
|
|
Colour
|
-
|
|
Height
|
71
|
|
Diameter
|
-
|
|
Operation
|
-
|
|
Connection
|
-
|
|
RAL-number
|
-
|
|
Contact type
|
-
|
|
With display
|
-
|
|
With receiver
|
-
|
|
Explosion-proof
|
-
|
|
External sensor
|
-
|
|
Measuring range
|
|
|
Mounting method
|
Flush-mounted
|
|
Thermal feedback
|
-
|
|
Max. contact load
|
-
|
|
Differential value
|
|
|
Sensor/feeler type
|
-
|
|
Concealed operation
|
-
|
|
Max. contact voltage
|
-
|
|
Suitable for cooling
|
-
|
|
Suitable for heating
|
-
|
|
Temperature readable
|
-
|
|
Type of power supply
|
-
|
|
With sound indicator
|
-
|
|
Control characteristic
|
P
|
|
With tap water circuit
|
-
|
|
Adjustable differential
|
-
|
|
IFTTT support available
|
no
|
|
Number of cooler outputs
|
-
|
|
Number of heater outputs
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
Degree of protection (NEMA)
|
-
|
|
Compatible with Amazon Alexa
|
no
|
|
Compatible with Apple HomeKit
|
no
|
|
Class of the temperature control
|
-
|
|
Compatible with Google Assistant
|
no
|
|
Number of modules (module system)
|
-
|
|
Standby power consumption (solstandby)
|
-
|
