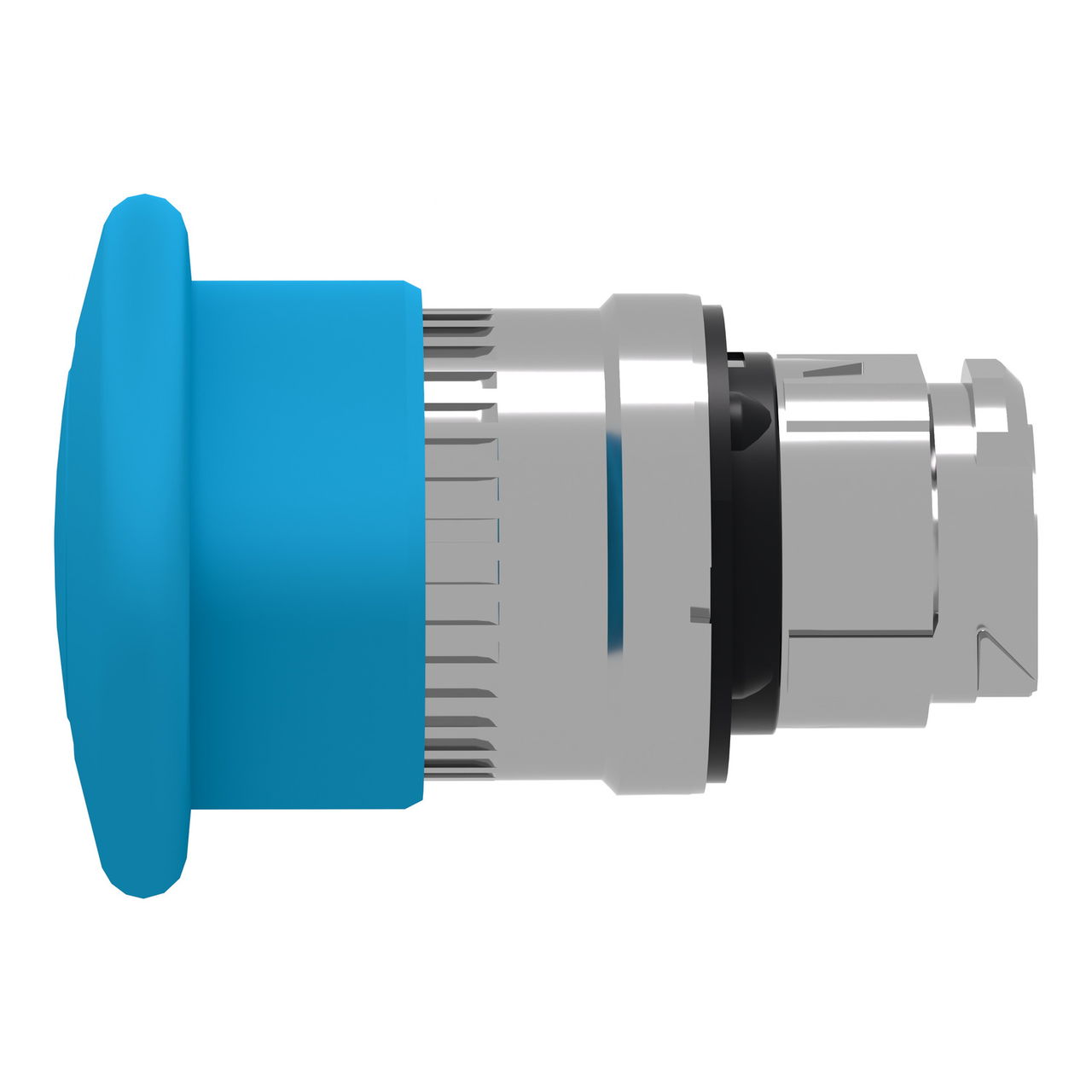

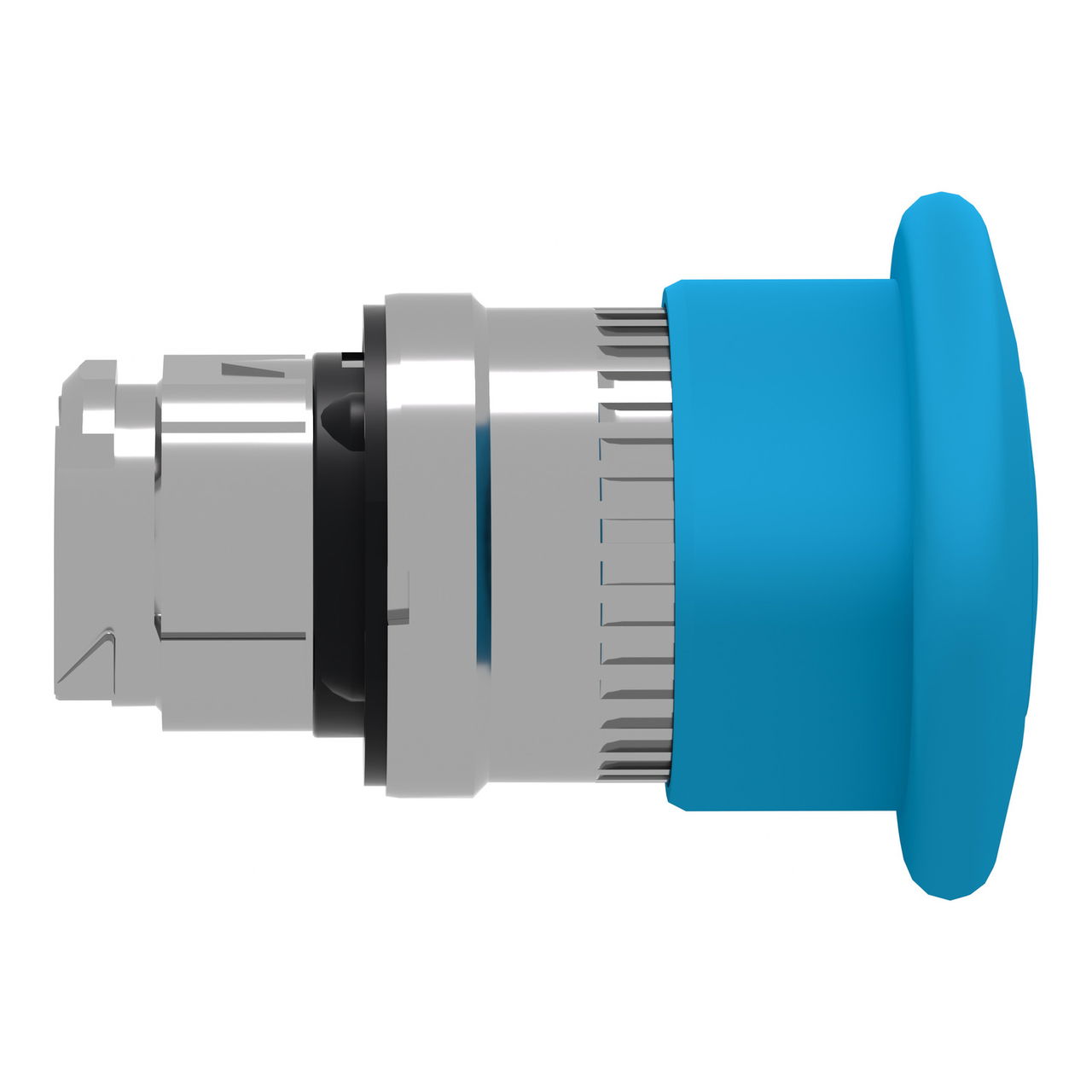

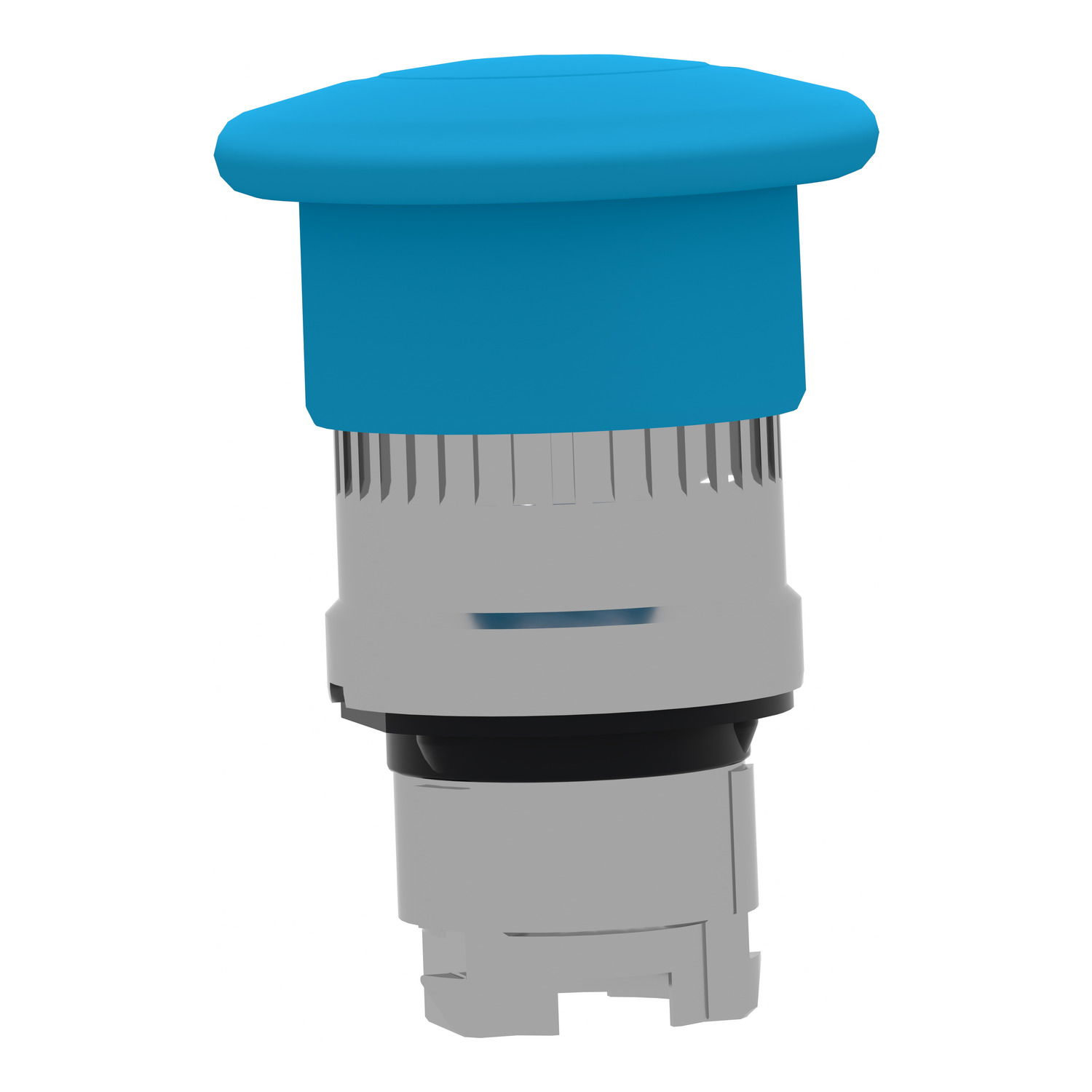

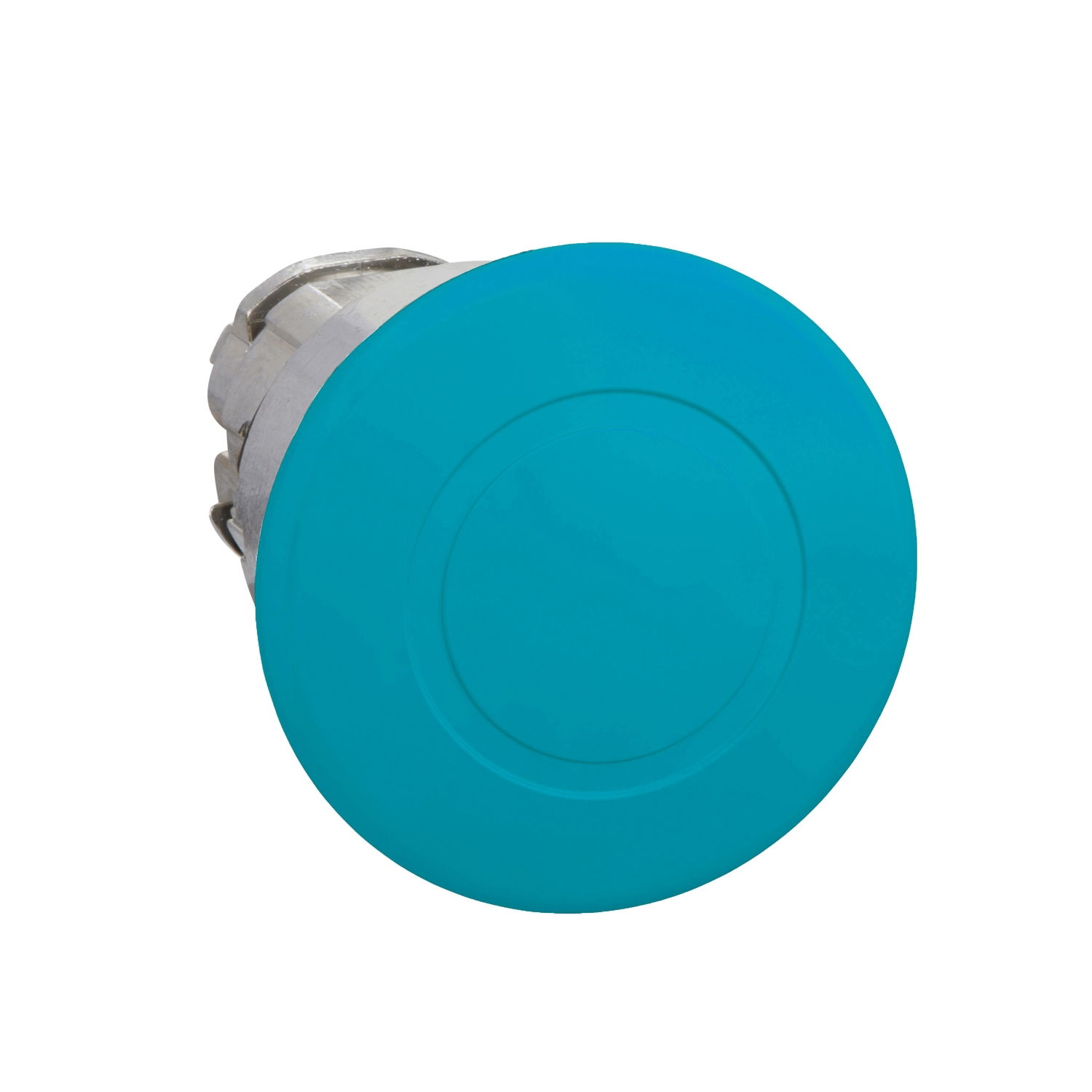

Blue Ø40 mushroom pushbutton head Ø22 latching push-pull

Link copied
SKU
EAN
GTIN
MPN

Blue Ø40 mushroom pushbutton head Ø22 latching push-pull by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £24.22 to £24.46 excl. VAT. Voltimum+ members earn 3 points per unit.

This Harmony XB4, 40mm mushroom blue button head operates with latched push-pull mechanism. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.

Voltimum+ Loyalty Programme Loyalty points: 3

Price range: £ 24.22 - £ 24.46 Excl. VAT

Specifications

Diameter cap 40 mm
Colour button Blue
Hole diameter 22.5 mm
Spring-return no
Width opening -
With lighting no
Height opening -
Type of button High
Unlocking method Pull-release
Material front ring Metal
Suitable for lighting no
Degree of protection (IP) IP66
Suitable for emergency stop no

Documents

Declaration of Conformity (Sustainability)

ZB4BT6 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB4 metal Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

ZB4BT6 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

Emergency Stop Pushbutton, Product Environmental Profile, IA

Open

Circularity Profile

Emergency Stop Pushbutton

Open
