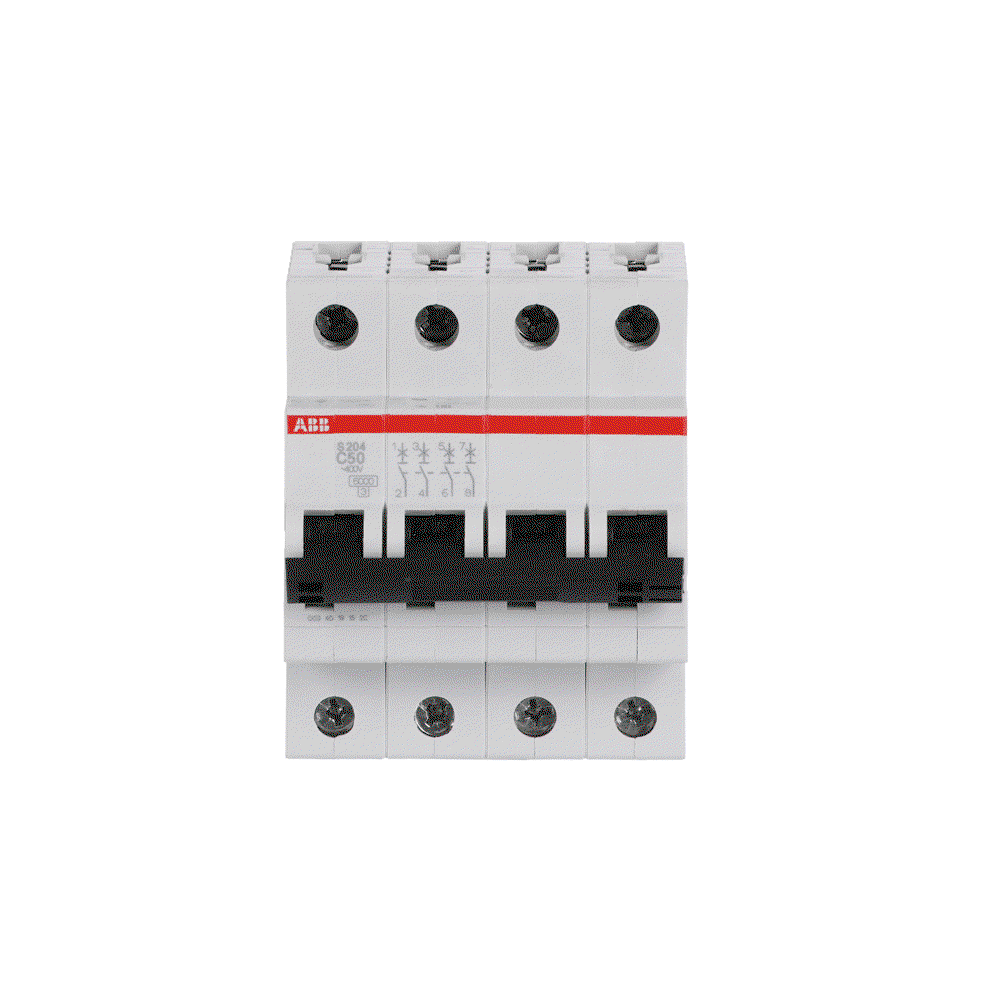

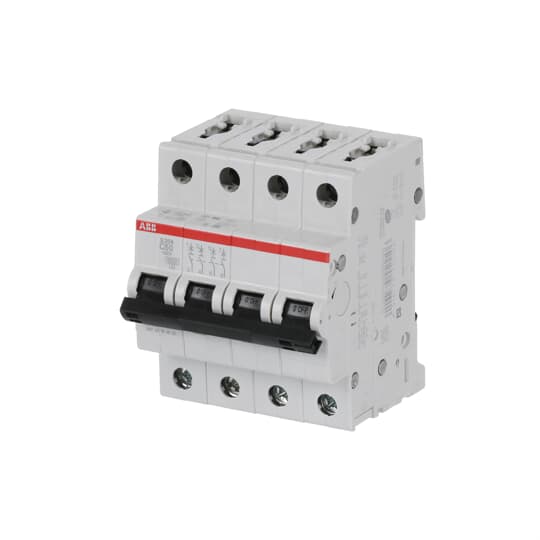

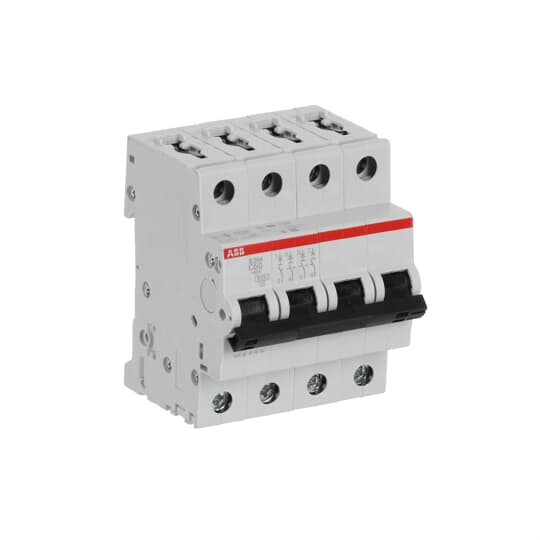

Miniature Circuit Breaker - S200 - 4P - 50 A - C - (AC) 6 kA
1 / 4
Miniature Circuit Breaker - S200 - 4P - 50 A - C - (AC) 6 kA
Miniature Circuit Breaker - S200 - 4P - 50 A - C - (AC) 6 kA by ABB is listed by 4 electrical wholesalers on Voltimum UK, including Farnell, RS Components, Rexel Group and 1 more. It is currently in stock at 3 of them. Trade prices range from £137.46 to £161.80 excl. VAT. Voltimum+ members earn 89 points per unit.
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Product identifiers
SKU: 2CDS254001R0504
EAN: 4016779551106
GTIN: 4016779551106
MPN: S204-C50
Loyalty points:
89
Price range: £ 137.46 - £ 161.80 Excl. VAT
Categories
Specifications
| Frequency | |
| Power loss | 13 |
| Voltage type | AC/DC |
| Rated current | 50 |
| Rated voltage | 400 |
| Built-in depth | 69 |
| Explosion-proof | no |
| Pollution degree | 3 |
