WP12-02

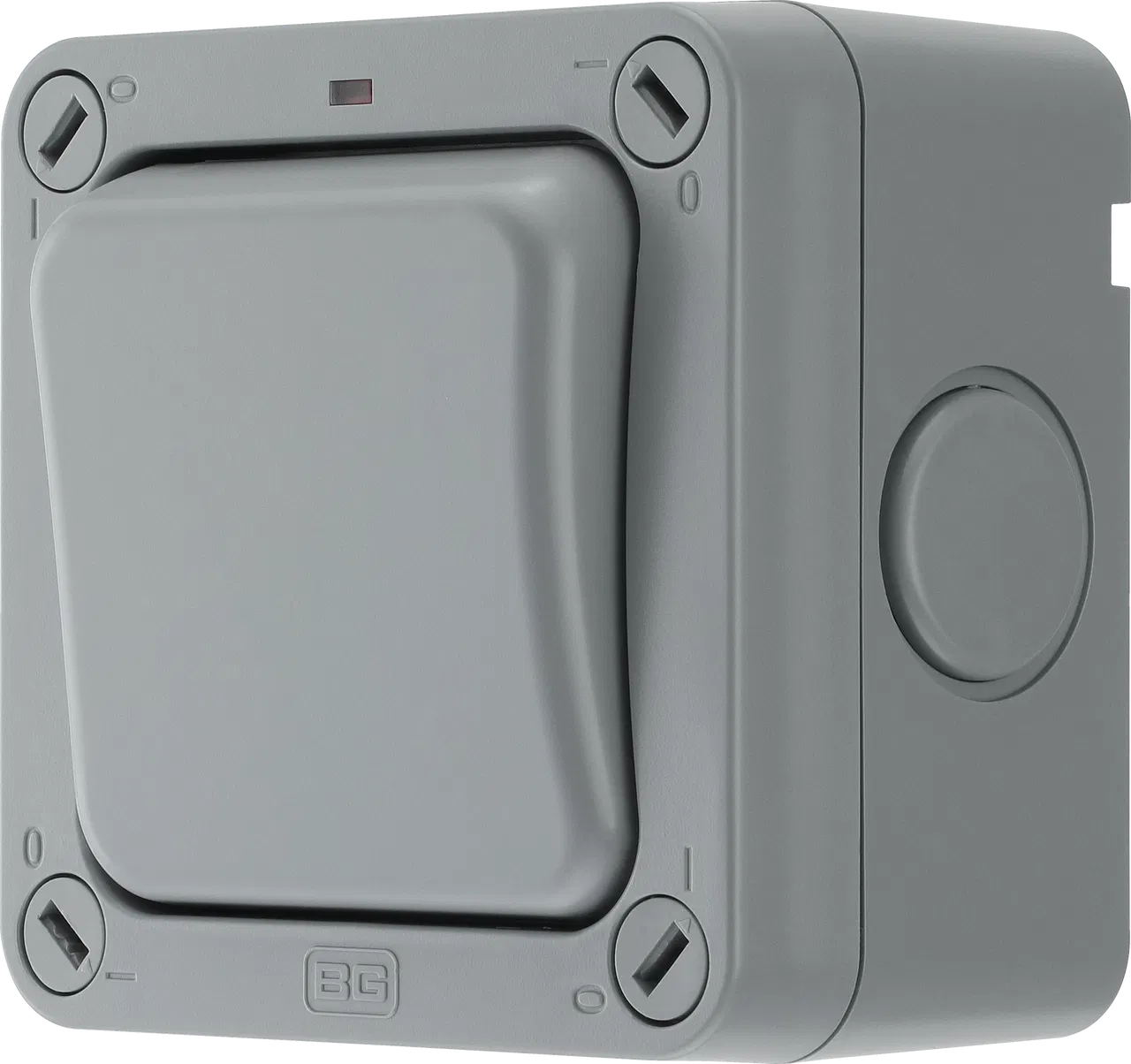

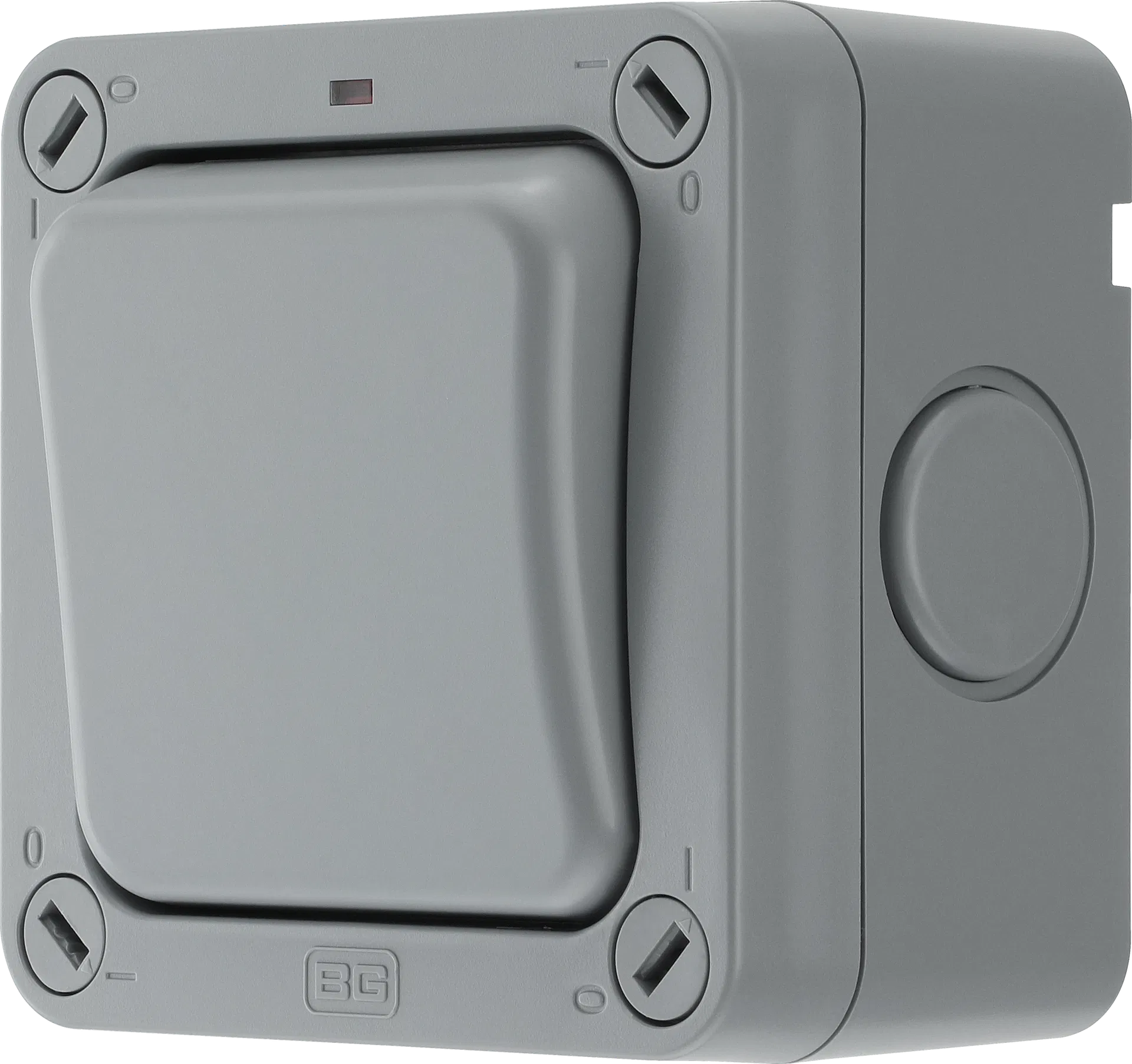

BG Nexus Storm, 20A Single Switch, 2 Way, IP66
Weather and dust protection - IP66
Fast fix - no separate screws, no screw covers, 150º rotation
Robust and high impact outdoor power switch, for safe electricity supply outdoors
2 way switching allows for a second switch position in a circuit
LED indicator that can be wired to illuminate when off or on

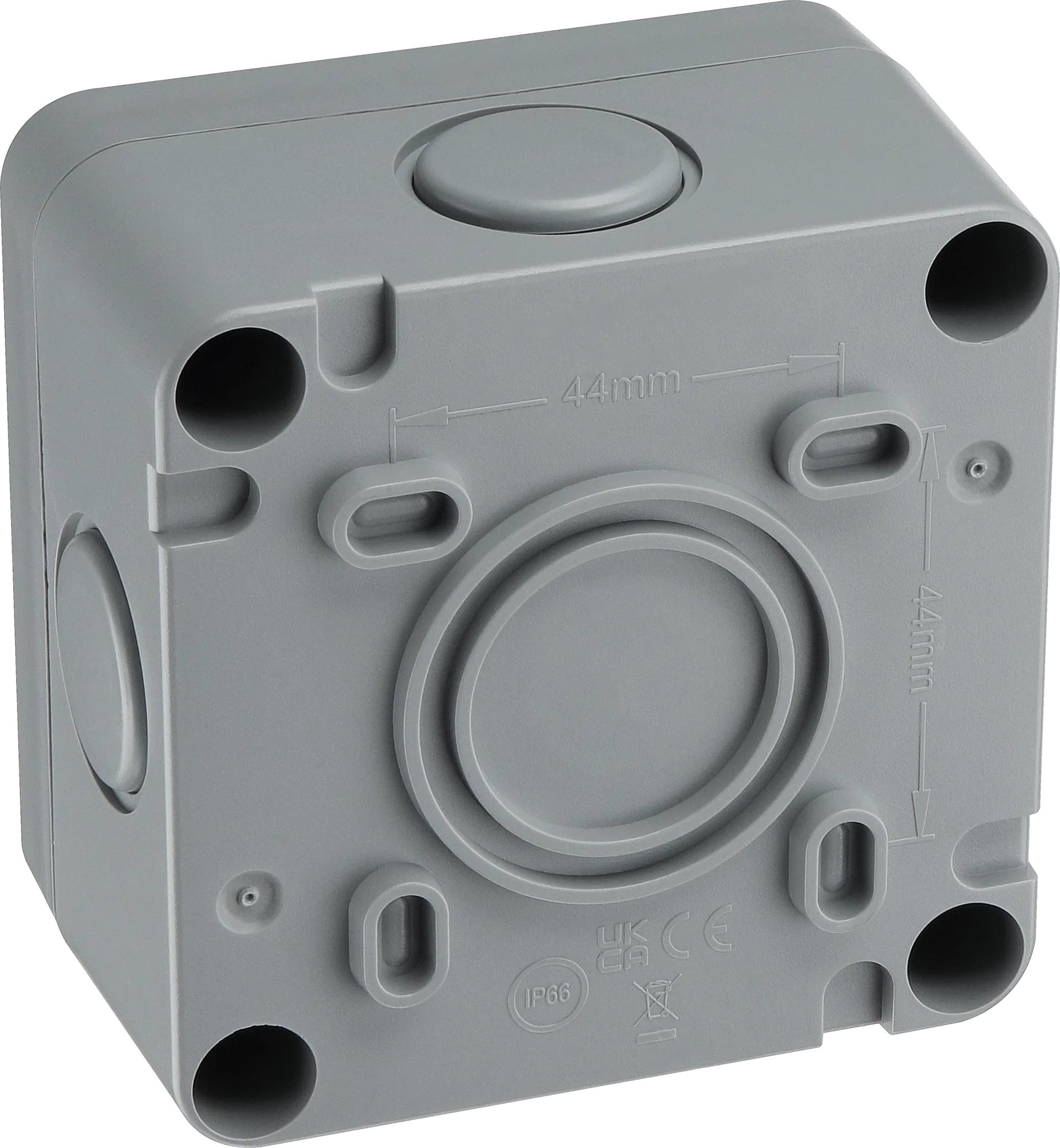

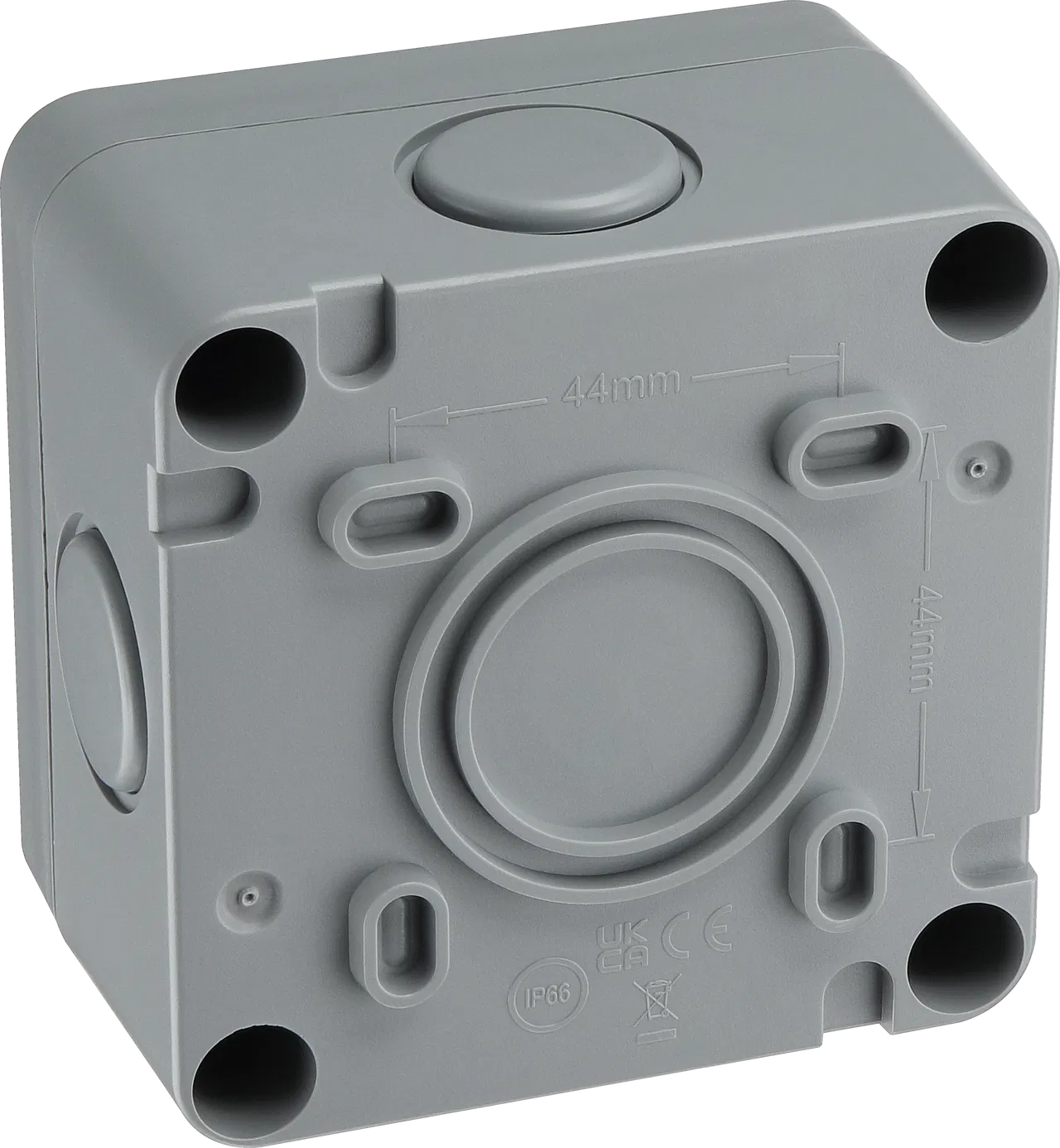

All cable entries in the 4 sides of the mounting box have removable blanking caps
Fast fix - no separate screws, no screw covers, 150º rotation
Clearly marked terminals with backed out captive screws for easy installation
Earth terminal in mounting box
Product identifiers
SKU: WP12-02
MPN: WP12-02
Loyalty points:
1
Price range: £ 6.21 - £ 10.14 Excl. VAT
Specifications
| General Colour | Grey |
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (mm²) | 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm² |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
