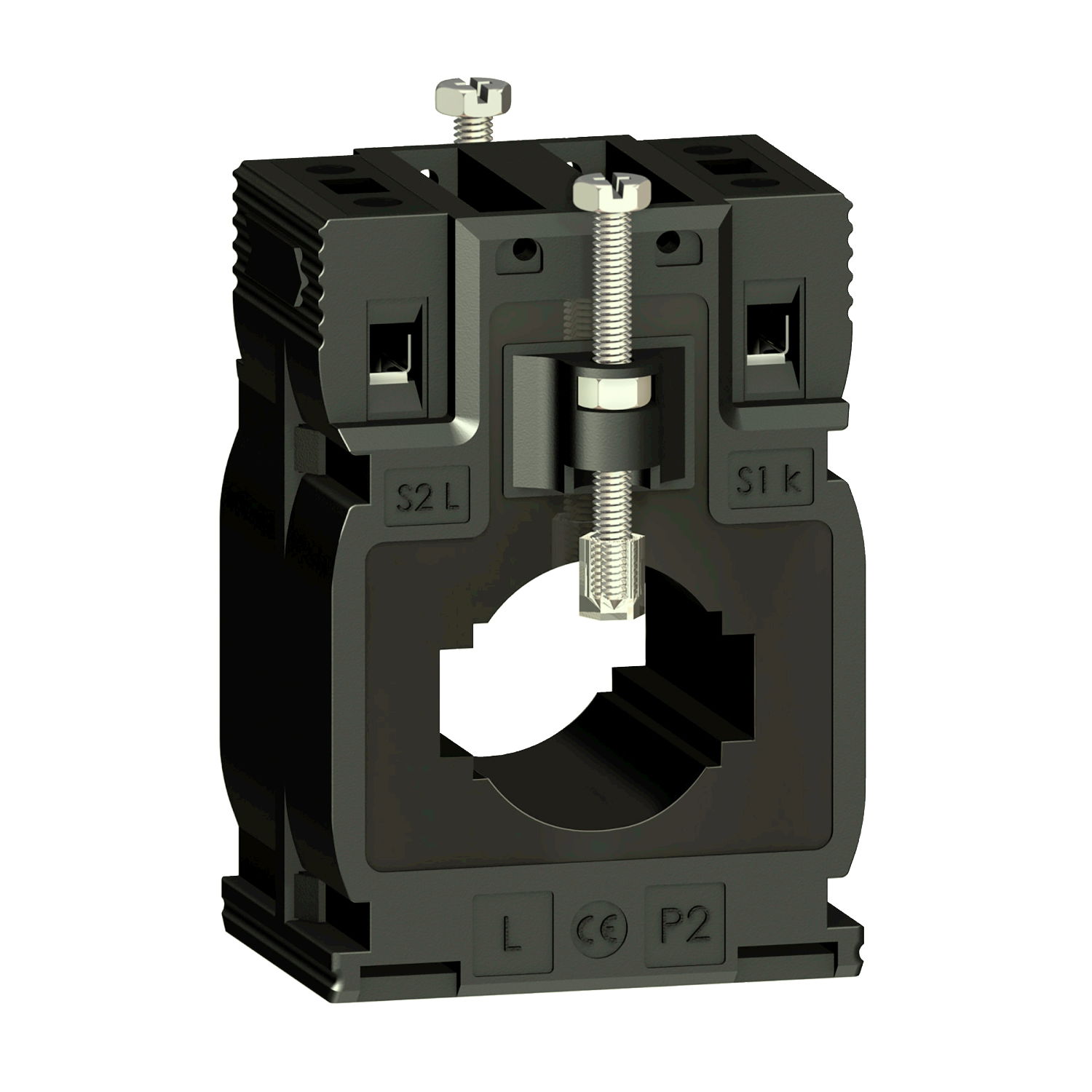

Current transformer tropicalised DIN mount 300 5 cables d. 27 - bars 10x32 15x25

Link copied
SKU
EAN
GTIN
MPN

Current transformer tropicalised DIN mount 300 5 cables d. 27 - bars 10x32 15x25 by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock. Voltimum+ members earn 9 points per unit.

This current transformer, tropicalised for busbar and cable, has a line rated current of 300 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 27 mm. Compatible with a double output for bar: 32.5 mm x 10.5 mm or 25.5 mm x 15.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 8 VA, class 1 maximum power: 10 VA.

Voltimum+ Loyalty Programme Loyalty points: 9

Price: £ 56.00 Excl. VAT

Specifications

Model Through-feed current converter
Calibrated no
Snap mounting no
Width opening
Accuracy class 1
Height opening
Opening diameter 27 mm
With copper rail no
Secondary connection Screw connection
Rated secondary current 5 A
Number of primary inputs 1
Rated secondary apparent power 10 VA

Documents

Declaration of Conformity (Sustainability)

METSECT5MA030 REACh Regulation

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

Offer Marketing Illustration

Open

User guide

Easergy T300 Technical Guide - LV Standard CT Sensors for LV150

Open

Instruction sheet

IEC Type 5A Solid-core Current Transformer - Instruction Sheet

Open
