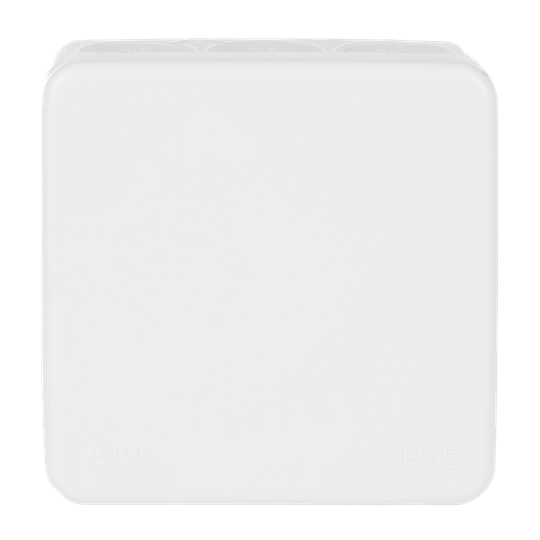

AP9/G Junction box Grey IP65

Link copied
SKU
EAN
GTIN
MPN

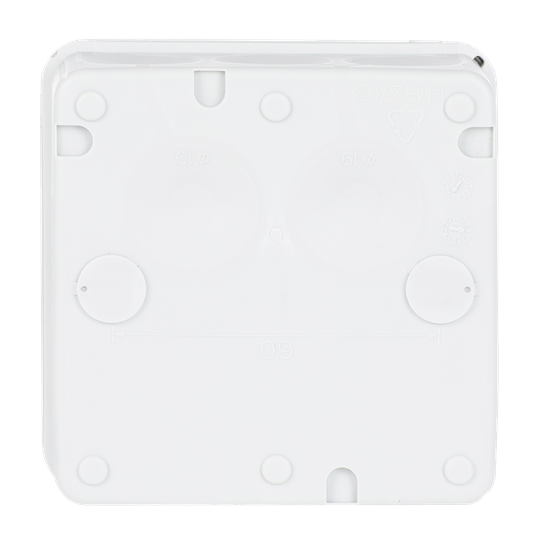

The square junction box AP9/G (2,5 mm², 500 V) is equipped with 12 membrane cable entries for cables up to Ø 17 mm in the sides, and two at the bottom for cables up to Ø 19 mm . Cables are easy to connect by simply inserting the stripped ends through the inlets. The box locks by snapping and can be opened by inserting a screwdriver (for example) into the opening slots - no screws are needed. The box can be furnished with strain-reliefs AS9, AS9.1 and AS9.3, which fits for Ø 6 - 15,5 mm cable. VDE-approved. Mounting temperature -25...+60 °C. Made of halogen free material (IEC/61249-2-21).

Voltimum+ Loyalty Programme Loyalty points: 3

Price: £ 2.95 Excl. VAT

Specifications

Depth 39.000
Model Junction box
Shape Square
Width 86
Colour Grey
Length 86
Castable no
Diameter -
Sealable yes
Cover model Blind cover
Weatherproof yes
With screening no
Mounting method Universal
For Ex-zone dust -
Circuit integrity -
Transparent cover no
Inlet from the rear yes
Mounting under water no
Explosion-tested version no
Degree of protection (IP) IP65
Rated insulation voltage Ui 500
Type of housing feed-through -

Documents

Deeplink product page

Open

Deeplink REACH

9AKK106713A4633_en_PDF_D_REACH _ SCIP Product Declaration.pdf

Open

Dimensioned drawing

9AKK107992A5295_enfisv_PDF_B_Dimension Diagram (.PDF) _XX_ AP9.pdf

Open

Instructions for use

9AKK107045A7551_en_C_Operating Instruction (.PDF) _EN_ AP9 installation instruction PEM1126 411009.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK106713A4634_en_PDF_E_RoHS Product Declaration Wiring Accessories.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

CE_ABB_Surface-mounted junction boxes_ENG_15.11.2024_.pdf

Open

Declaration EPD (Environmental Product Declaration)

9AKK108468A3481_en_PDF_B_EPD for Recycled Junction Boxes (.PDF) _XX_.pdf

Open
