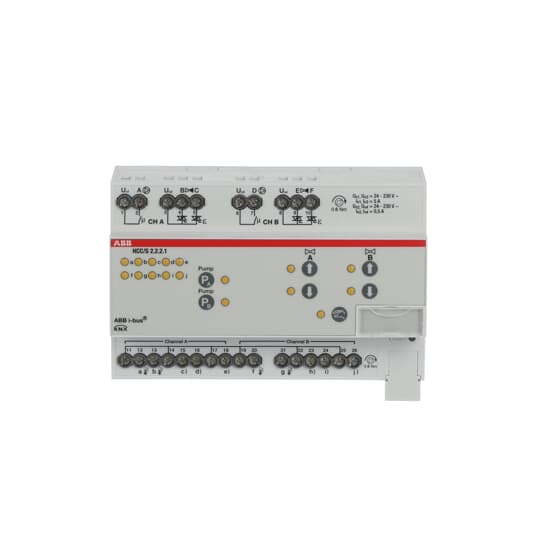

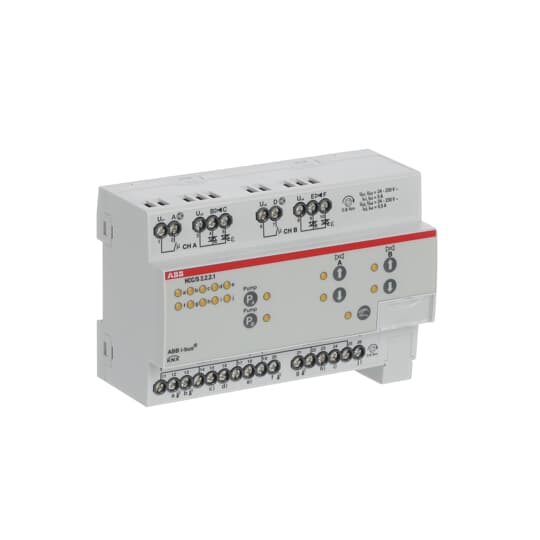

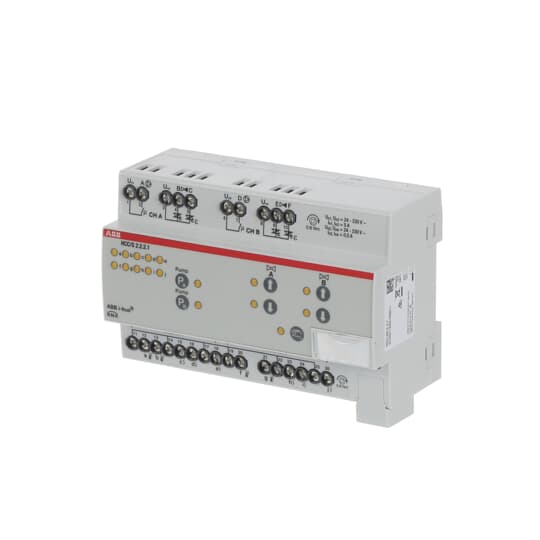

HCC/S2.2.2.1 Heating/Cooling Circuit Controller, 2-f, 3-point, Man Op, MDRC

Link copied
SKU
EAN
GTIN
MPN
For the control of a heating or cooling circuit. The device has 2 channels, each with two electronic outputs to control a motor-driven mixing valve (3-Point) of a heating or cooling circuit as well as a relay output (5A) to switch the pump of the circuit. Via 3 binary inputs it is possible to monitor the status of the pump (via potential free contacts) and integrate these feedback into the control of the pump. The flow and return flow temperature are measured and used for the calculation of the control value for the valve output in the integrated controller. The set point temperature is received via the KNX bus. By bundling both channels of the device it is also possible to use it for double pump systems The HCC/S 2.2.2.1 features an easy to use manual operation. The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.

Voltimum+ Loyalty Programme Loyalty points: 238

Price: £ 490.97 Excl. VAT

Specifications

Manual switch yes
Bus system KNX yes
Bus system LON no
Mounting method Other
Number of outputs 4
Other bus systems None
Switching voltage
Bus system Powernet no
With bus connection yes
Number of digital inputs 10
Valve protection function yes
Correcting variable switching no
Correcting variable consistent yes
Width in number of modular spacings 8
Min. depth of built-in installation box -

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Dimensioned drawing

8_TE_MB_XX_V1-0_2CDC072027F0017_Rev_A.pdf

Open

Instructions for use

HCCS 2.X.X.1_MBA_XX_V1-0_2CDG941187P0003.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

HCCS_2221_CE-RoHS_xx_V1-0_2CDK508233D2701.pdf

Open
