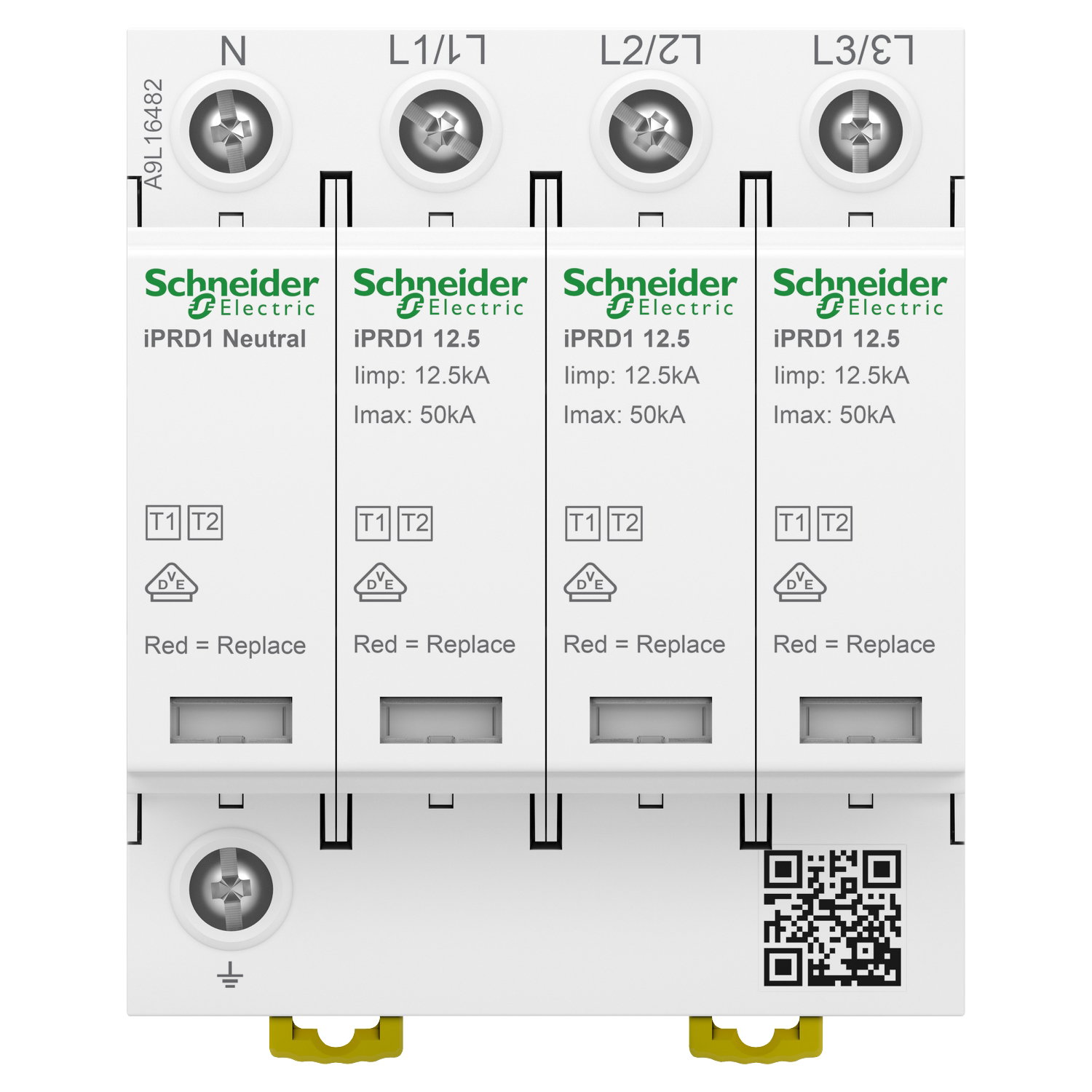

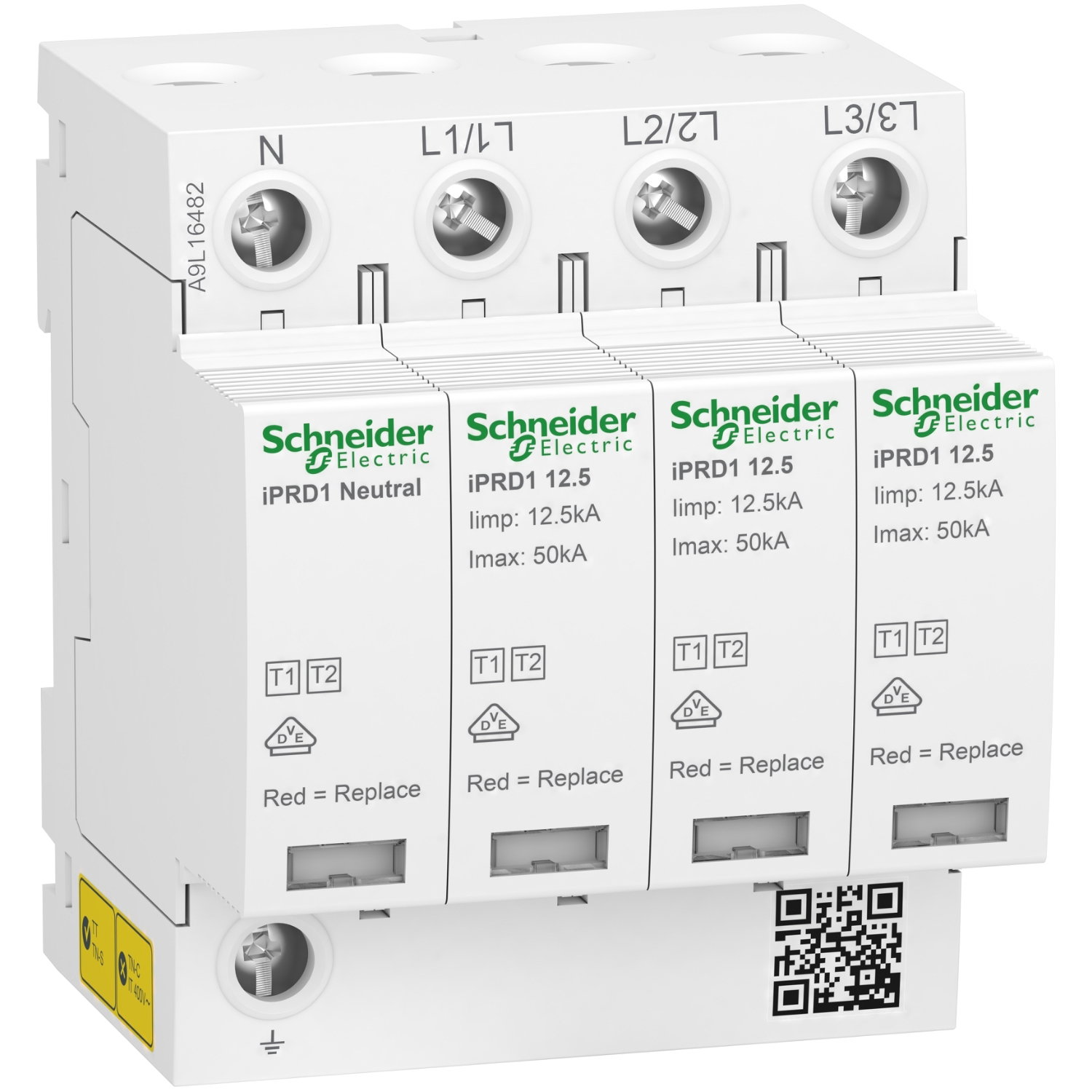

Modular surge arrester, Acti9 iPRD1 12.5, 3 P + N, 350 V, with remote transfert

Modular surge arrester, Acti9 iPRD1 12.5, 3 P + N, 350 V, with remote transfert by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £1,010.36 excl. VAT. Voltimum+ members earn 168 points per unit.

This Acti9 iPRD1 12.5r surge arrester protects 3P+N residential and small commercial buildings installations against direct and indirect transient overvoltages. This type 1+2 device autoprotected by an integrated circuit-breaker is recommanded for high risk level in incoming panel board. It offers remote reporting of the "cartridge must be changed" message. This prewired surge arrester allows quick replacement of withdrawable cartridges when they are damaged. It incorporates its end of life safety disconnector. This Acti9 iPRD1 12.5r is compatible with TT and TN-S earthing systems. Associated with Compact NSXm H TM80D the breaking capacity is 70kA. The Imax maximum discharge current is 50kA. The In nominal discharge current is 20kA. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Uc maximum continuous operating voltage in common mode is 255VAC between neutral and earth. The Up Voltage protection level is 1.5kV type 1+2. The Ue rated operational voltage is 230VAC or 400 VAC. The operating frequency is 50Hz. The dimensions are (W) 72mm x (H) 89mm x (D) 69mm. The width in 9mm pitches is 8. The weight is 619g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +80°C. This product is complies with EN 61643-11 2012 and IEC 61643-11 2011 standards.

Product identifiers

SKU: A9L16482
EAN: 3606481490223
GTIN: 3606481490223
MPN: A9L16482

Voltimum+ Loyalty Programme Loyalty points: 168

Price: £ 1,010.36 Excl. VAT

Categories

Low Voltage Switchgear Switchgear Switchgear & Circuit Protection

ETIM group

Earthing, lightning and surge protection

Specifications

Test class Type 1 + 2
Max. PV-voltage -
Mounting method DIN rail (top hat rail) 35 mm
Number of poles 4
Construction size 8 modular spacing
Remote signalling yes
Nominal voltage AC 400 V
Nominal voltage DC -
Integrated backup fuse no
System configuration IT no
System configuration TT yes
Voltage protection level 1.5 kV
System configuration TN-C no
Max. continuous voltage AC 350 V
System configuration other no
Voltage protection level L-N 1.5 kV
Voltage protection level N-PE 1.5 kV
Overcurrent protected voltage tapping -
Voltage switching spark gap technology no
Voltage protection level (DC+/DC- - PE) -
Max. conductor cross section solid (solid, stranded) 35 mm²
Max. overcurrent protection device, parallel connection (fuse) -
