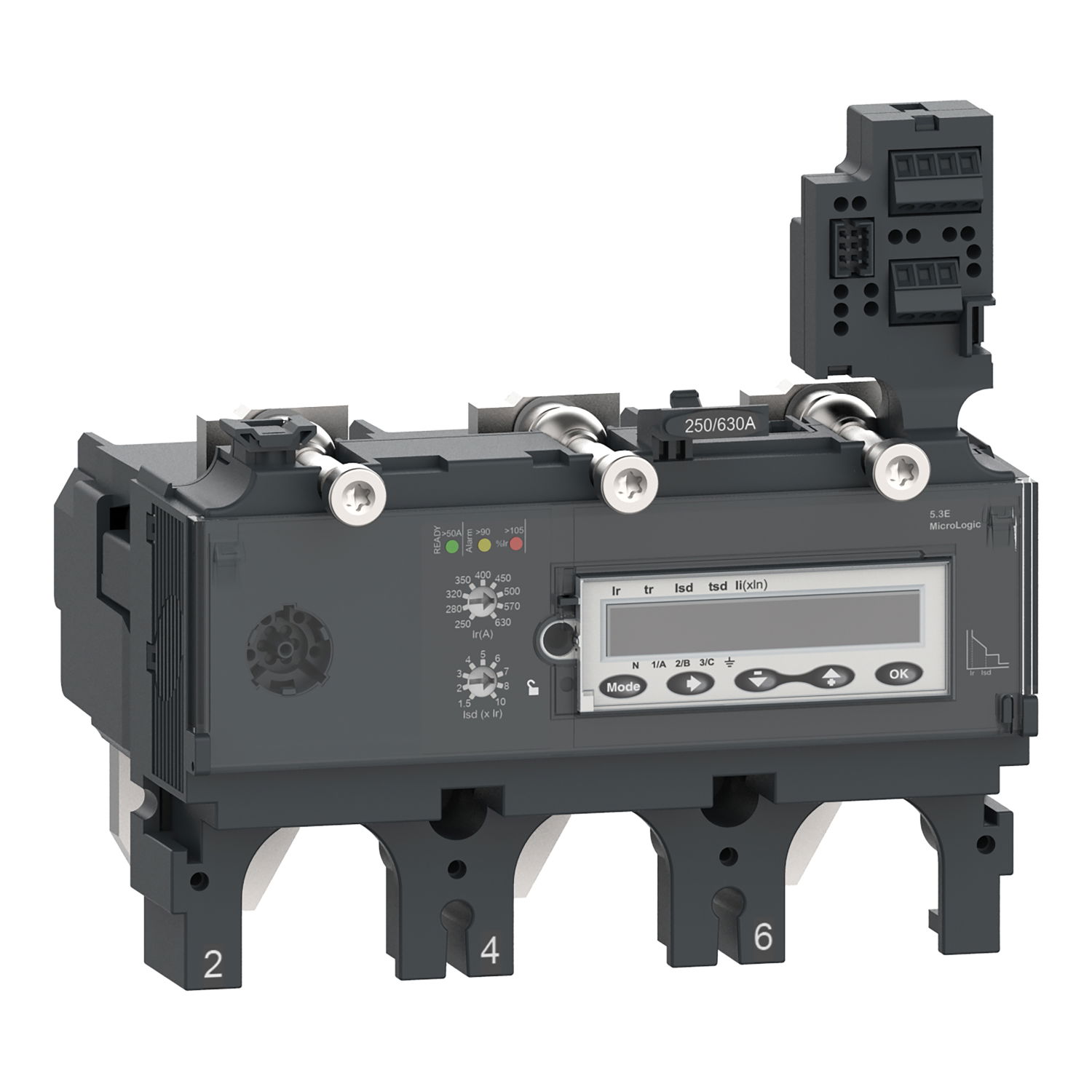

Trip unit MicroLogic 5.3 E for ComPacT NSX 630 circuit breakers, electronic, rating 630A, 3 poles 3d

Trip unit MicroLogic 5.3 E for ComPacT NSX 630 circuit breakers, electronic, rating 630A, 3 poles 3d by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd and Rexel Group. It is currently in stock at all of them. Trade price £1,073.85 excl. VAT. Voltimum+ members earn 189 points per unit.

This MicroLogic 5.3 E (Energy) is a 3 poles 3d electronic trip unit used on ComPacT NSX 630 circuit breakers. This 630A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 5.3 E indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 5.3 E is equipped with a display module that gives energy measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Product identifiers

SKU: C6335E630
EAN: 3606482003057
GTIN: 3606482003057
MPN: C6335E630

Voltimum+ Loyalty Programme Loyalty points: 189

Price: £ 1,073.85 Excl. VAT

Categories

MCBs RCBOs Switchgear & Circuit Protection Circuit Breakers

ETIM group

Low-voltage industrial components

Specifications

Depth 112.6 mm
Width 139.7 mm
Height 136.2 mm
Number of poles 3
Supply voltage DC
Operating voltage DC
Rated switch current 630 A
Supply voltage AC 50 Hz
Type of motor protection Electronic release
Operating voltage AC 60 Hz
Voltage type (supply voltage) DC
Short-circuit release function Delayed
Voltage type (operating voltage) AC
Current setting delayed short-circuit release
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0

Documents

Declaration of Conformity (Sustainability)

C6335E630 REACh Regulation

Open

User guide

ComPacT NSX - Circuit Breakers and Switch-Disconnectors 100-630 A - User Guide

Open

Instruction sheet

ComPacT NSX400-630 - MicroLogic 1.3/2.3/5.3/6.3 Trip Units - Instruction Sheet

Open

Product data sheet

Open

Catalog

ComPacT NSX & NSXm Circut Breakers and Switch Disconnectors from 16 to 630A up to 690V

Open

Declaration of Conformity (Sustainability)

C6335E630 EU RoHS Directive

Open

Declaration of conformity

UK_DoC_PB21100103B-UK_ComPacT NSX400, 630 type F, N, H, S, L with MicroLogic trip-units 2.3 / 5.3 A / 5.3 E / 6.3 A / 6.3 E or 1.3 M

Open

Environmental Disclosure

Circuit breaker, ComPacT NSX400R, 200kA/415VAC, 3 poles, MicroLogic 5.3E trip unit 400A - Product Environmental Profile
