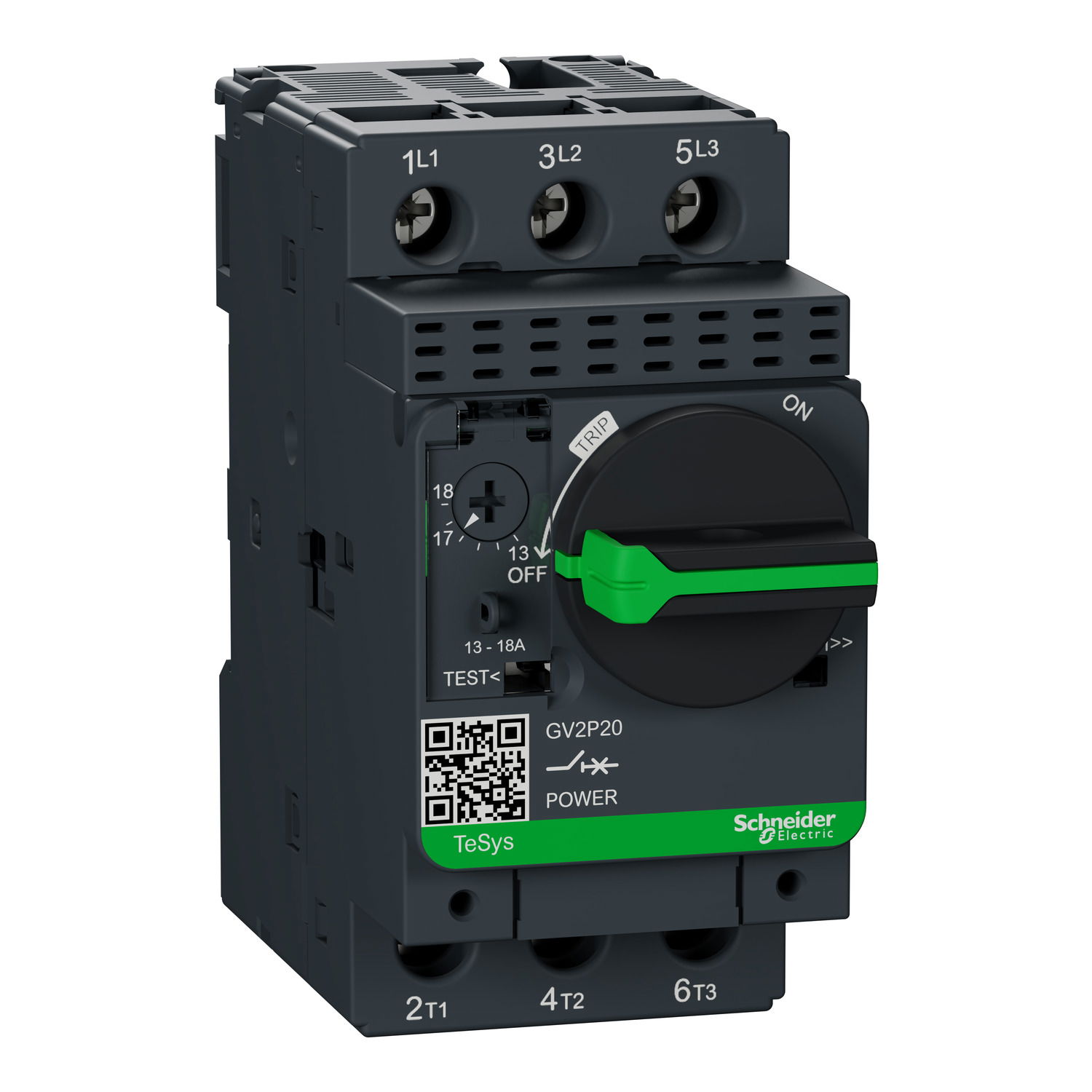

Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals
TeSys GV motor circuit breaker, 3 poles (3P), 18A/690V, for 3-phase motor applications 7.5kW@400V. It provides a thermal-magnetic protection with a thermal setting range 13-18A, magnetic tripping at 13xIn, high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX),
Product identifiers
SKU: GV2P20
EAN: 3389110213515
GTIN: 3389110213515
MPN: GV2P20
Loyalty points:
53
Price range: £ 88.67 - £ 138.84 Excl. VAT
Categories
Features
|
Depth
|
97 mm
|
|
Width
|
44.5 mm
|
|
Height
|
89 mm
|
|
Power loss
|
2.5 W
|
|
Number of poles
|
3
|
|
Device construction
|
Complete device in housing
|
|
Switch off technique
|
Thermomagnetic
|
|
Phase failure sensitive
|
TRUE
|
|
Rated operating voltage
|
|
|
Type of control element
|
Turn button
|
|
Degree of protection (IP)
|
IP20
|
|
Rated permanent current Iu
|
18 A
|
|
Overload release current setting
|
|
|
With integrated auxiliary switch
|
FALSE
|
|
With thermal overload protection
|
TRUE
|
|
Rated operation power at AC-3, 230 V
|
4 kW
|
|
Rated operation power at AC-3, 400 V
|
7.5 kW
|
|
With integrated under voltage release
|
FALSE
|
|
Type of electrical connection of main circuit
|
Screw connection
|
|
Adjustment range undelayed short-circuit release
|
|
|
Rated short-circuit breaking capacity Icu at 400 V, AC
|
50 kA
|
