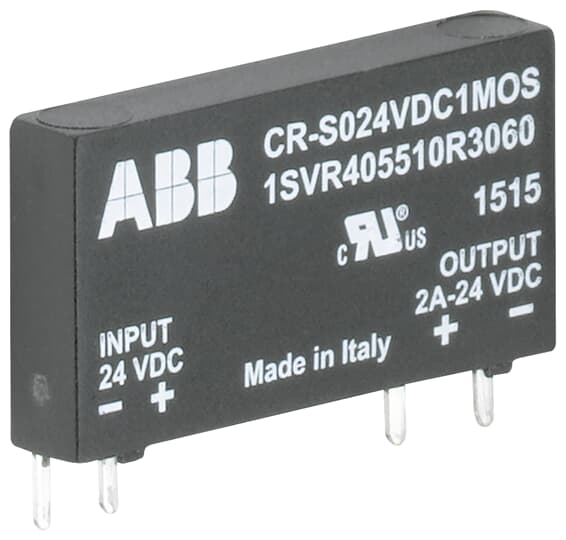

CR-S024VDC1MOS Pluggable optocoupler Input= 24 V DC, Output= 2 A/24 V DC

Link copied
SKU
EAN
GTIN
MPN

CR-S024VDC1MOS Pluggable optocoupler Input= 24 V DC, Output= 2 A/24 V DC by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £15.54 to £16.66 excl. VAT. Voltimum+ members earn 9 points per unit.

The CR-S024VDC1MOS slim pluggable optcoupler with MOS-FET output is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's CR-S sockets. This relay operates with a 24 V DC rated control supply voltage and has a maximum switching voltage of 24 V DC and maximum switching current of 2 A. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. CR-S screw and spring sockets, separator, jumper bars and marker are available as accessories.

Voltimum+ Loyalty Programme Loyalty points: 9

Price range: £ 15.54 - £ 16.66 Excl. VAT

Specifications

Input voltage
Output voltage
With LED indication no
Type of digital output Other
Type of output voltage DC
Rated operation current Ie 2
Type of voltage (input voltage) DC

Documents

Deeplink product page

Open

Deeplink REACH

1SVD981001-4501_en_C_REACh Info for Electronic Relays and Controls.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Product data sheet

Open

Declaration RoHS

1SVD981001-4401_ROHS_Electronic Relays and Controls_revB_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

1SVD982057-0000.pdf

Open
