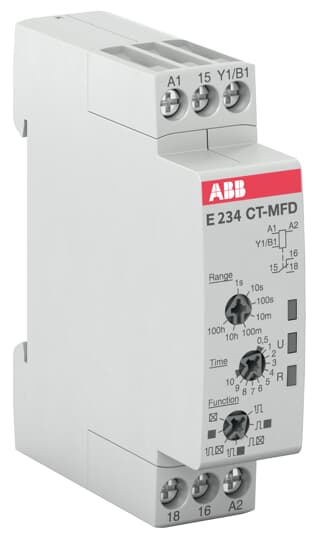

CT-MFD.12 Time relay, multifunction 1c/o, 24-240VAC 24-48VDC

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales and basket transfers. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

CT-MFD.12 Time relay, multifunction 1c/o, 24-240VAC 24-48VDC

Name: CT-MFD.12 Time relay, multifunction 1c/o, 24-240VAC 24-48VDC
Brand: ABB
SKU: 1SVR500020R0000
Availability: InStock

CT-MFD.12 Time relay, multifunction 1c/o, 24-240VAC 24-48VDC by ABB is listed by 6 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 3 more. It is currently in stock at 4 of them. Trade prices range from £46.95 to £67.07 excl. VAT. Voltimum+ members earn 35 points per unit.

The CT-MFD.12 is a multifunction electronic time relay from the CT-D timer range. It provides 7 timing functions with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 6 A. A control input works with voltage-related (non-floating) triggering.

Product identifiers

SKU: 1SVR500020R0000

EAN: 4013614350634

GTIN: 4013614350634

MPN: CT-MFD.12

Loyalty points: 35

Price range: £ 46.95 - £ 67.07 Excl. VAT

Specifications

Depth	63
Width	17.5
Height	70
Time range
Nominal current	6
Material contact	-
Function star-delta	no
Complete with socket	no
Operating voltage DC
Max. starting current	-
Function pulse shaping	yes
Degree of protection (IP)	IP20
Remote operation possible	no
With semiconductor output	no
Material of contact insert	-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Suitable as remote control	no
Voltage type for actuating	AC/DC
Material of contact surface	-
Suitable for front mounting	no
Type of electric connection	Screw connection
Function delay-on energization	yes
Rated control supply voltage DC
Voltage type (operating voltage)	AC/DC
Function delay on de-energization	yes
Pluggable on auxiliary contact block	no
Outputs, reversible delayed/undelayed	no
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Function floating contact on energization	yes
Function floating contact on de-energization	yes
Clock function, starting with pause, variable	no
Clock function, starting with pulse, variable	no
Suitable for DIN rail (top hat rail) mounting	yes
Number of outputs, delayed, change-over contact	0
Number of outputs, delayed, normally open contact	0
Number of outputs, undelayed, change-over contact	0
Function flashing, starting with pause, fixed time	yes
Function flashing, starting with pulse, fixed time	yes
Relay technology category according to IEC 61810-7	-
Number of outputs, delayed, normally closed contact	0
Number of outputs, undelayed, normally open contact	0
Number of outputs, undelayed, normally closed contact	0
