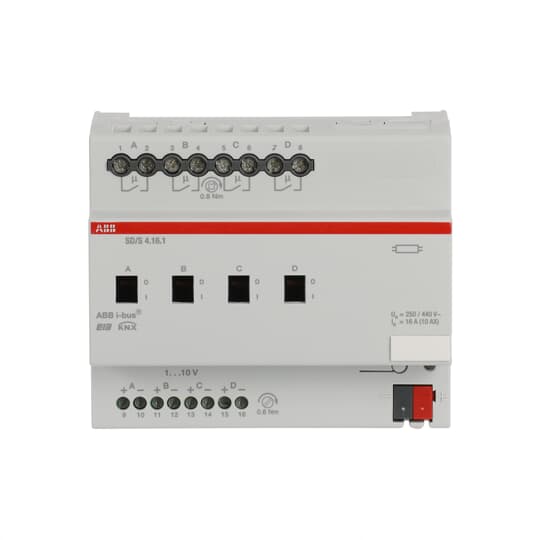

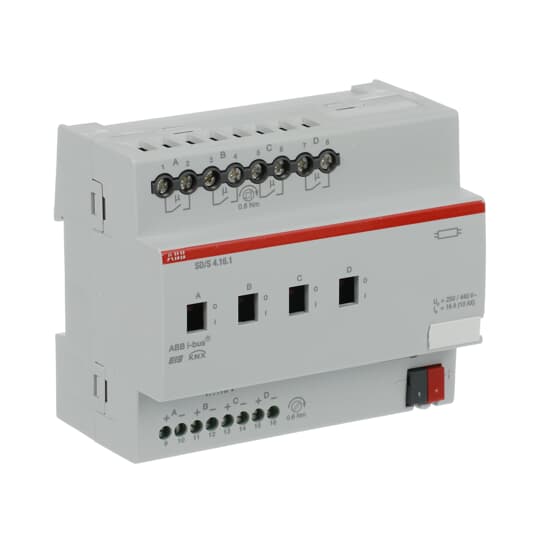

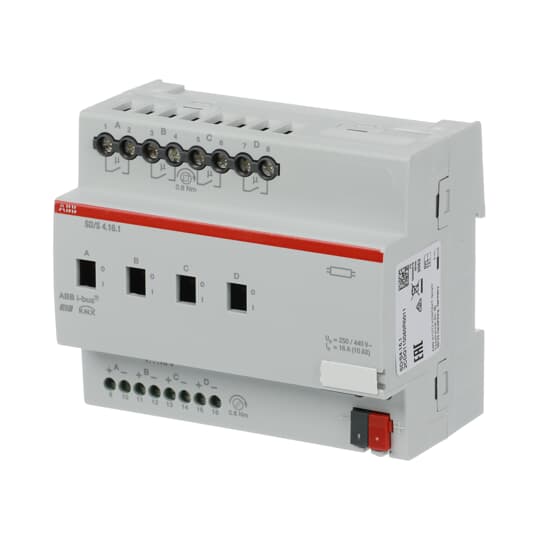

SD/S4.16.1 Switch-/Dim Actuator, 4-fold, 16 A, MDRC
MDRC Devices for switching and dimming of 2, 4 or 8 independent groups of luminaries with electrical ballasts and 1-10V control inputs. Per channel a potential free relay can be switched on or off via the ABB i-bus® or manually. Manual and visual operation is included. A power supply is not necessary.
Product identifiers
SKU: 2CDG110080R0011
EAN: 4016779659376
GTIN: 4016779659376
MPN: SD/S 4.16.1
Loyalty points: 252
Price range: £ 503.09 - £ 508.12 Excl. VAT
Categories
Features
|
Model
|
Dimming actuator
|
|
Voltage
|
110 - 230 V
|
|
EFI12278
|
2.539365
|
|
Frequency
|
50 - 60 Hz
|
|
Output power
|
2300 - 2300 W
|
|
Type of load
|
Universal
|
|
Bus system KNX
|
yes
|
|
Bus system LON
|
no
|
|
Mounting method
|
DRA (DIN-rail adapter)
|
|
Substation input
|
no
|
|
Number of outputs
|
4
|
|
Other bus systems
|
None
|
|
Bus system Powernet
|
no
|
|
With LED indication
|
no
|
|
With bus connection
|
no
|
|
Max. control current
|
100 mA
|
|
Power boost suitable
|
no
|
|
Bus module detachable
|
no
|
|
Max. switching power LED
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
Parallel-service possible
|
no
|
|
Bus system radio frequency
|
no
|
|
Radio frequency bidirectional
|
no
|
|
Local operation/hand operation
|
yes
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
Width in number of modular spacings
|
6.0
|
|
Min. depth of built-in installation box
|
64.5 mm
|
