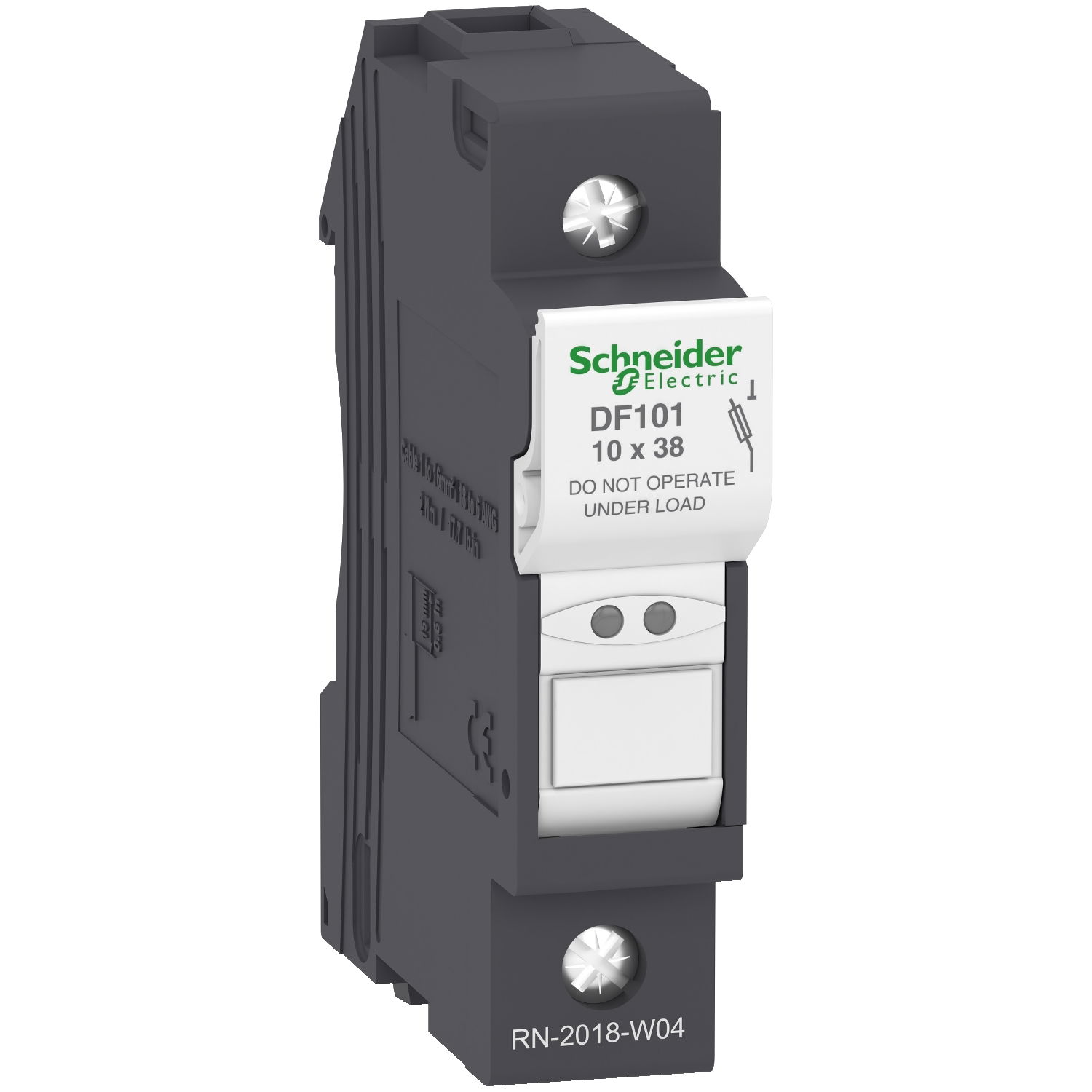

Fuse carrier TeSys DF, 1P 32A, fuse size 10 x 38 mm

Fuse carrier TeSys DF, 1P 32A, fuse size 10 x 38 mm by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £4.50 to £7.90 excl. VAT. Voltimum+ members earn 1 point per unit.

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).

Product identifiers

SKU: DF101
EAN: 3389119407205
GTIN: 3389119407205
MPN: DF101

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 4.50 - £ 7.90 Excl. VAT

Categories

Switchgear & Circuit Protection Contactors & Motor Starters

ETIM group

Circuit breakers and fuses

Specifications

Lockable yes
For fuse size 10x38 mm
Built-in depth 56.5 mm
Mounting method DIN rail
Nominal voltage 690 V
Number of poles 1
Degree of protection (IP) IP20
With optical defect indication no
Concurrently switching neutral conductor no
