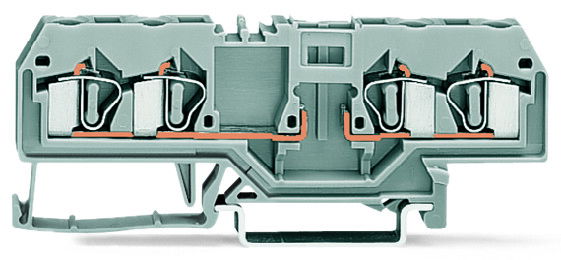

4-conductor carrier terminal block for DIN-rail 35 x 15 and 35 x 7.5 4 mm² gray

Name: 4-conductor carrier terminal block for DIN-rail 35 x 15 and 35 x 7.5 4 mm² gray
Brand: Wago
SKU: 281-656
Availability: InStock

4-conductor carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray

Product identifiers

SKU: 281-656

EAN: 4050821214915

GTIN: 4050821214915

MPN: 281-656

Price: £ 4.11 Excl. VAT

Terminal blocks

Specifications

Depth	29
Width	6
Colour	Grey
Height	86
EFNA0008	V0
Rated voltage	400
Mounting method	DIN rail (top hat rail) 35 mm
Number of levels	1
Rated current In	10
Operating temperature	105 - 105
Closing plate required	yes
Material insulation body	Thermoplastic
Internally connected stages	no
Explosion-tested version 'Ex e'	no
Suitable for conductor material	-
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per level	4
Connectable conductor cross section solid-core	0.08 - 4
Connectable conductor cross section multi-wired	0.08 - 4
Connectable conductor cross section fine-strand with cable end sleeve
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 4
