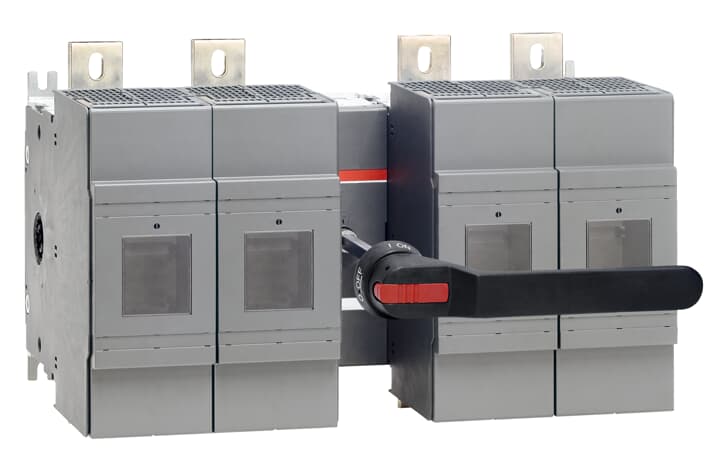

OS1250D22N2P SWITCH FUSE

Name: OS1250D22N2P SWITCH FUSE
Brand: ABB
SKU: OS1250D22N2P
Price: 4675.86 GBP
Availability: OutOfStock

Switch-disconnector fuse, 1250A, 4-pole, DIN 4, front operated, switched non-fusible fourth pole, handle and shaft included.

Product identifiers

SKU: OS1250D22N2P

EAN: 6417019413914

GTIN: 6417019413914

MPN: OS1250D22N2P

Loyalty points: 7014

Price: £ 4,675.86 Excl. VAT

Specifications

Cable entry	Other
Number of poles	4
Suitable for fuses	NH4
Motor drive optional	no
With error protection	-
Motor drive integrated	no
Version as main switch	yes
Type of control element	Long turning handle
Equipped with connectors	yes
Position control element	Front side
Version as safety switch	yes
Rated permanent current Iu	1000
Suitable for floor mounting	no
Suitable for front mounting	no
Suitable for busbar mounting	yes
Max. rated operation voltage Ue AC	1000
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	1000
Rated short-time withstand current lcw	40
Version as emergency stop installation	no
Conditioned rated short-circuit current Iq	80
Type of electrical connection of main circuit	Bolt connection
