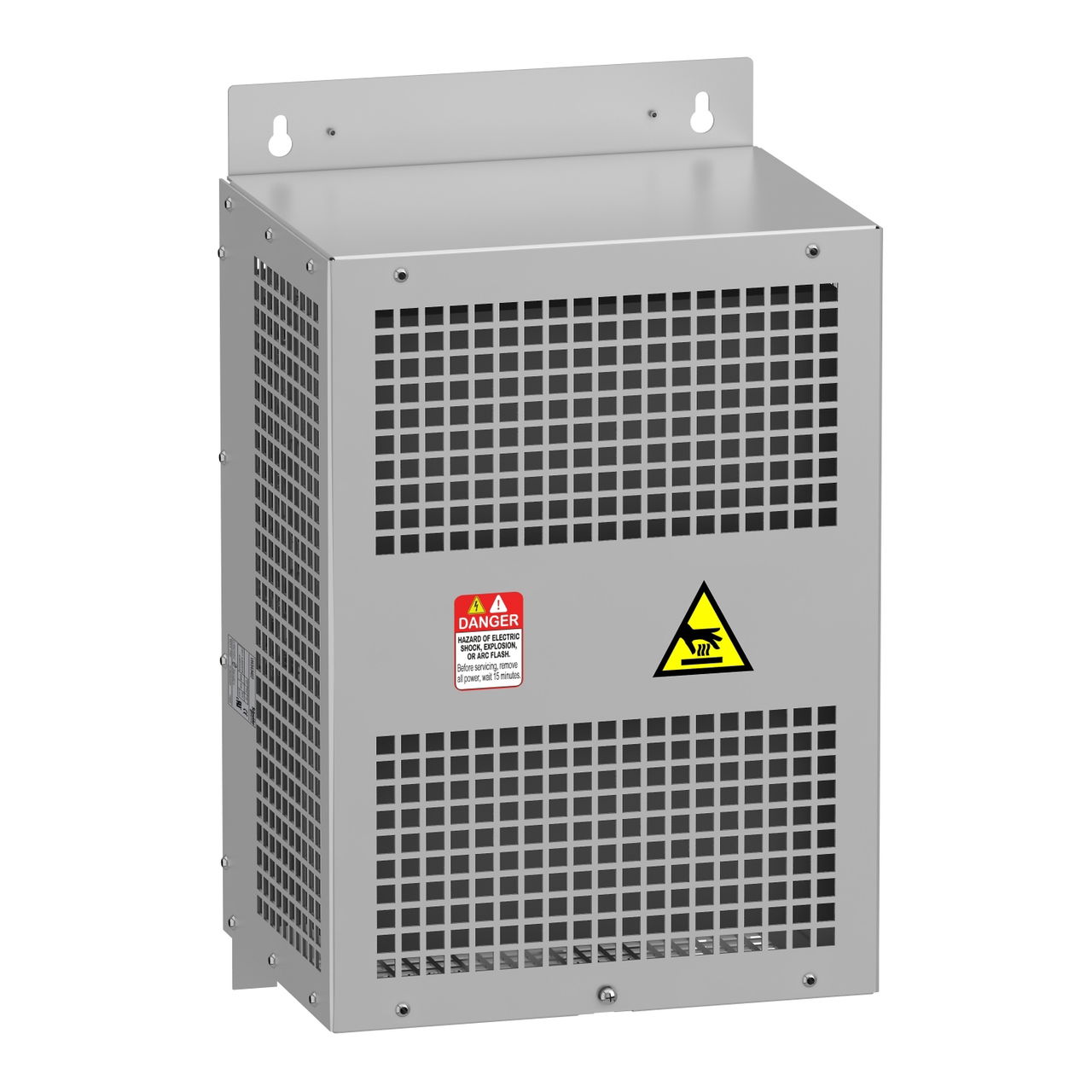

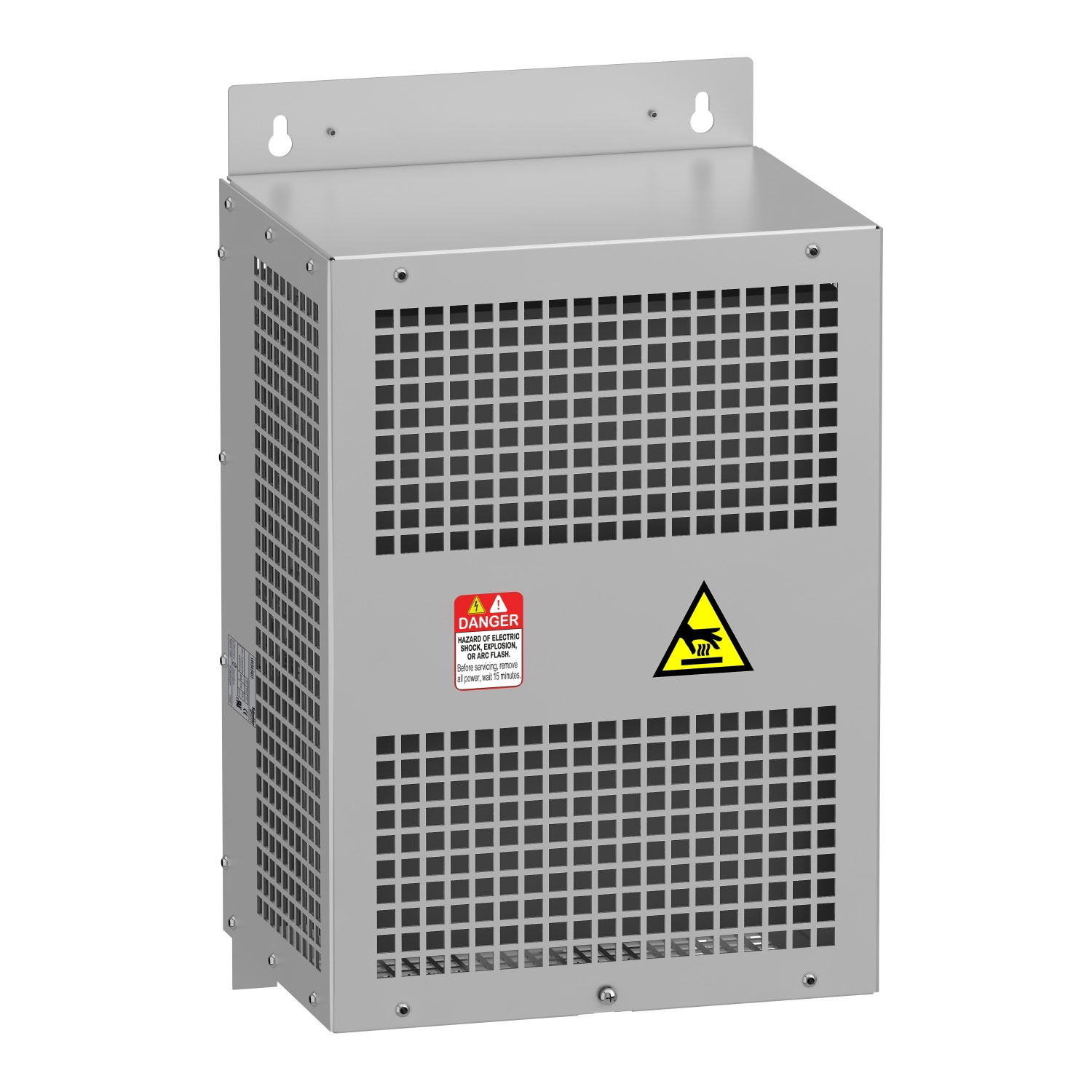

Output sinus filter - 25 A - for variable speed drive
Output sinus filter - 25 A - for variable speed drive
Output sinus filter - 25 A - for variable speed drive by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £635.16 to £644.32 excl. VAT. Voltimum+ members earn 84 points per unit.
This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 25A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 20kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.
Product identifiers
SKU: VW3A5403
EAN: 3606480736827
GTIN: 3606480736827
MPN: VW3A5403
Loyalty points:
84
Price range: £ 635.16 - £ 644.32 Excl. VAT
ETIM group
Specifications
| Rated current AC | |
| Rated clock frequency | 8 kHz |
| Suitable as du/dt-filter | no |
| Suitable as sinus filter | yes |
| Degree of protection (IP) | IP20 |
| Rated operating frequency | |
| Degree of protection (NEMA) | - |
| Number of poles, primary side | 3 |
