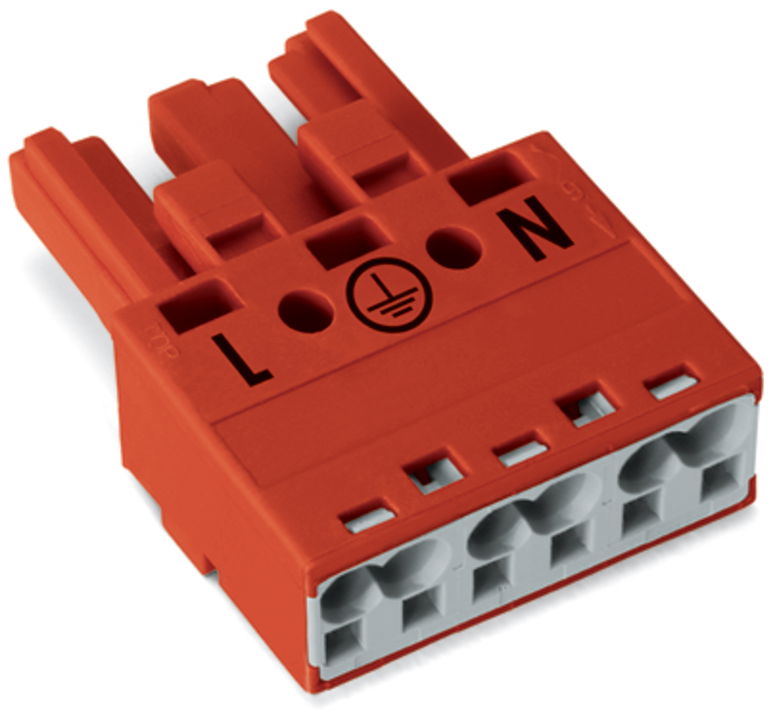

Socket 3-pole Cod. P red

Name: Socket 3-pole Cod. P red
Brand: Wago
SKU: 770-1303
Availability: InStock

Socket; 3-pole; Cod. P; 4,00 mm²; red

Product identifiers

SKU: 770-1303

EAN: 4045454389666

GTIN: 4045454389666

MPN: 770-1303

Price: £ 3.14 Excl. VAT

Specifications

Model	Bus
Width	30
Height	12.9
Length	37.5
Fire load	0.04444
Halogen free	yes
Rated current	25
Rated voltage	250
Cable diameter
Connection type	Spring clamp connection
Number of poles	3
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	L, N, PE
With strain relief	no
Rated surge voltage	4
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Red
Number of connections per pole	2
RAL-number coding/contact insert	3000
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
