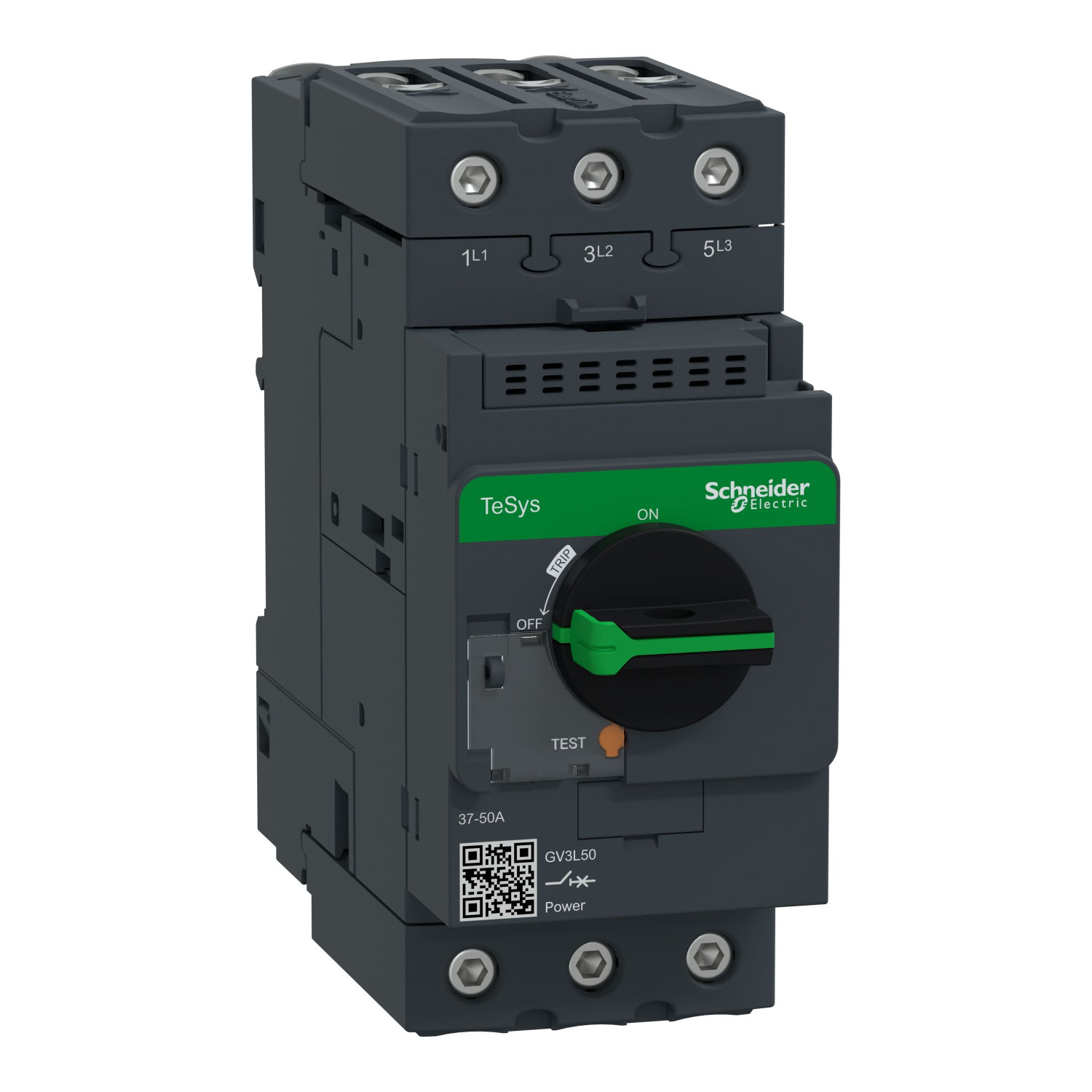

Motor circuit breaker, TeSys GV3, 3P, 50 A, magnetic, rotary handle, EverLink terminals
1 / 5
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
Motor circuit breaker, TeSys GV3, 3P, 50 A, magnetic, rotary handle, EverLink terminals
Motor circuit breaker, TeSys GV3, 3P, 50 A, magnetic, rotary handle, EverLink terminals by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 3 of them. Trade prices range from £147.00 to £239.42 excl. VAT. Voltimum+ members earn 29 points per unit.
TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for 3-phase motor applications 22kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD350 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine).
Product identifiers
SKU: GV3L50
EAN: 3389119405454
GTIN: 3389119405454
MPN: GV3L50
Loyalty points:
29
Price range: £ 147.00 - £ 239.42 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 136 mm |
| Width | 55 mm |
| Height | 132 mm |
| Power loss | 8 W |
| Number of poles | 3 |
| Device construction | Complete device in housing |
| Switch off technique | Magnetic |
| Phase failure sensitive | yes |
