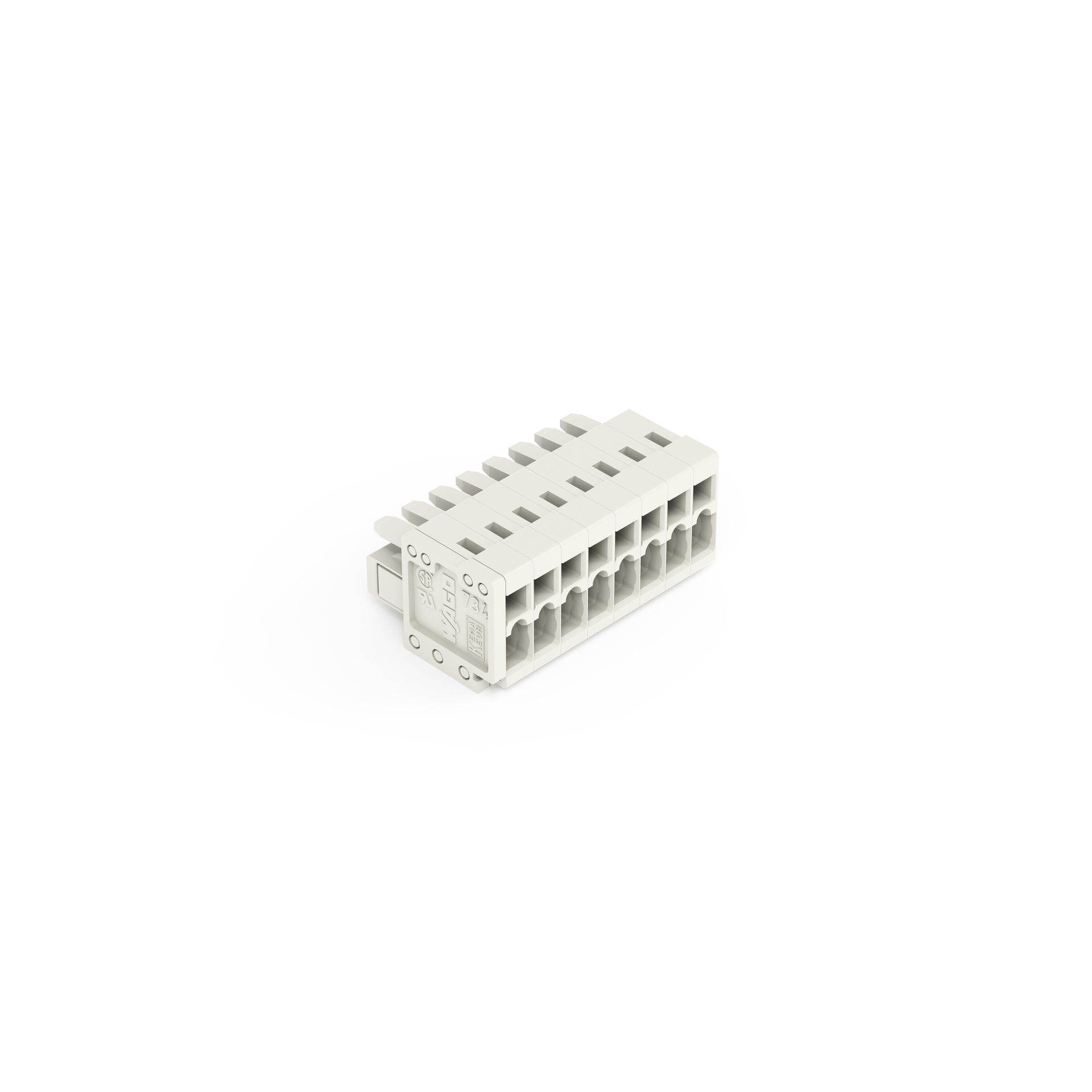

1-conductor female connector CAGE CLAMP® 1.5 mm² light gray

Name: 1-conductor female connector CAGE CLAMP® 1.5 mm² light gray
Brand: Wago
SKU: 734-108
Availability: InStock

1-conductor female connector; CAGE CLAMP®; 1.5 mm²; Pin spacing 3.5 mm; 8-pole; 100% protected against mismating; 1,50 mm²; light gray

Product identifiers

SKU: 734-108

EAN: 4044918493093

GTIN: 4044918493093

MPN: 734-108

Price: £ 7.15 Excl. VAT

Connectors

Specifications

EFNA0008	V0
Contact type	Bus
Rated voltage	160
Housing colour	Grey
Coating housing	Uncoated
Number of poles	8
Housing material	Plastic
Material contact	Other copper alloys
Pollution degree	2
Rated current In	10
Type of connection	Printed circuit board to cable
Rated surge voltage	2.5
Operating temperature	-60 - 100
Over voltage category	III
Connectable cable type	Tubular cable
Material insulation body	Thermoplastic
Modular spacing contacts	3.5
With protective conductor	no
Material of contact surface	Tin
Modular spacing connections	3.5
Type of electric connection	Spring clamp connection
RAL-number (similar) housing	-
Number of plug-in contact rows	1
Angle contact/conductor connection	180° (horizontal)
Degree of protection (IP), mounted	IP20
Connectable conductor cross section solid-core	0.08 - 1.5
Connectable conductor cross section multi-wired	0.08 - 1.5
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 1.5
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 1.5
