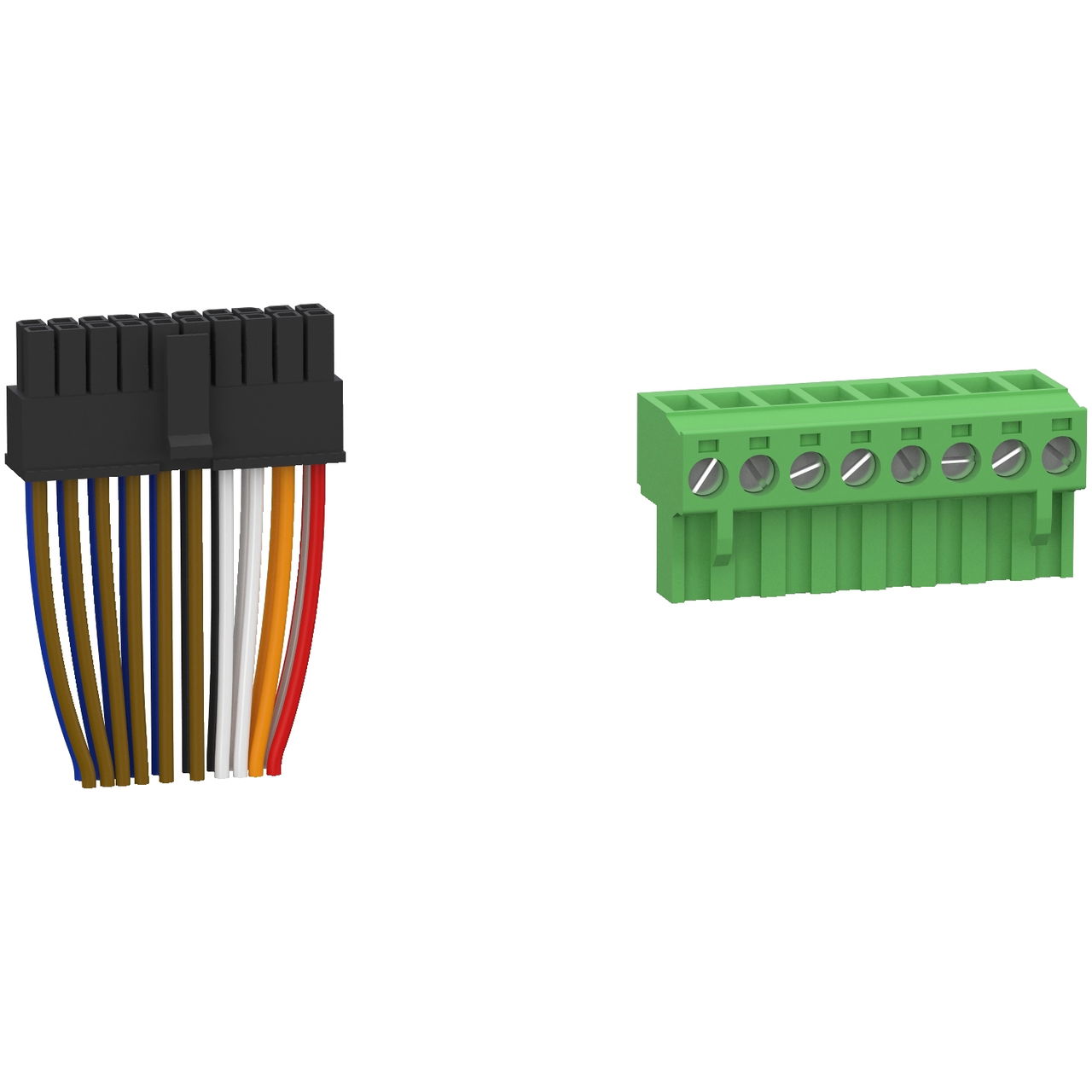

Modicon M171 Optimized LV Connector 1m cable
"This connector is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This Low voltage connector is an accessory to the M171 optimized controllers." "It is a Screw terminal block and a cordset equipped with a 20-pin connector at one end." "It allows to connect the digital outputs to the controller." "The connected digital outputs are 0-10V." "The cable measures 1m." "This connection accessory is dedicated to M171 Optimized controllers." "It is sold in a 5-piece package." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."
Product identifiers
SKU: TM171ACB4OI1M
EAN: 3606480752452
GTIN: 3606480752452
MPN: TM171ACB4OI1M
Loyalty points:
4
Price: £ 8.55 Excl. VAT
Categories
Features
|
Duplex
|
FALSE
|
|
Weight
|
0.128 kg/km
|
|
AWG size
|
24
|
|
Category
|
5
|
|
EFDE0051
|
-
|
|
EFFR0001
|
FALSE
|
|
EFFR0002
|
FALSE
|
|
EFUK0022
|
-
|
|
EFUK0023
|
-
|
|
EFUK0024
|
-
|
|
NVP value
|
-
|
|
Stranding
|
Other
|
|
Cable type
|
Other
|
|
Drain wire
|
FALSE
|
|
UV resistant
|
FALSE
|
|
With rip cord
|
FALSE
|
|
Cable geometry
|
Round
|
|
Number of cores
|
10
|
|
Conductor surface
|
Other
|
|
Nominal voltage U
|
-
|
|
Protective sheath
|
Other
|
|
Stranding element
|
No
|
|
Conductor category
|
Class 5 = flexible
|
|
Conductor material
|
Copper
|
|
Diameter conductor
|
1 mm
|
|
Material armouring
|
Other
|
|
Cable width approx.
|
150 mm
|
|
Colour outer sheath
|
Other
|
|
Core identification
|
Colour
|
|
Cable height approx.
|
55 mm
|
|
Material outer sheath
|
Other
|
|
Screen over stranding
|
-
|
|
Outer diameter approx.
|
10 mm
|
|
With rodent protection
|
FALSE
|
|
Armouring/reinforcement
|
None
|
|
Number of sheath layers
|
1
|
|
Characteristic impedance
|
-
|
|
Material core insulation
|
Other
|
|
Radial water blocking cable
|
FALSE
|
|
Suitable as telephone cable
|
FALSE
|
|
Number of stranding elements
|
1
|
|
Suitable as signalling cable
|
FALSE
|
|
Screen over stranding element
|
None
|
|
Specification core insulation
|
Other
|
|
Nominal cross section conductor
|
0.8 mm²
|
|
Suitable as computer data cable
|
TRUE
|
|
Longitudinal water blocking cable
|
FALSE
|
|
Certified for shipboard application
|
FALSE
|
|
Specification material outer sheath
|
Other
|
|
Low smoke according to EN IEC 61034-2
|
FALSE
|
|
Suitable for underground installation
|
FALSE
|
|
Halogen free according to EN IEC 60754-1
|
FALSE
|
|
Halogen free according to EN IEC 60754-2
|
FALSE
|
|
Halogen free according to EN IEC 60754-3
|
FALSE
|
|
Suitable for use as security alarm cable
|
FALSE
|
|
Approved type of underground installation
|
Other
|
|
Max. tensile strength during installation
|
-
|
|
Segregation class according to EN 50174-2
|
-
|
|
Core identification according to HD 308 S2
|
FALSE
|
|
Flame retardant according to IEC 60332-1-2
|
FALSE
|
|
Circuit integrity according to IEC 60331-23
|
FALSE
|
|
Oil resistant according to EN IEC 60811-404
|
FALSE
|
|
Reaction-to-fire according to EN 13501-6: Class
|
-
|
|
Reaction-to-fire according to EN 13501-6: Acidity
|
-
|
|
Flame retardant according to IEC 60332-3-22 (Cat A)
|
FALSE
|
|
Flame retardant according to IEC 60332-3-23 (Cat B)
|
FALSE
|
|
Flame retardant according to IEC 60332-3-24 (Cat C)
|
FALSE
|
|
Flame retardant according to IEC 60332-3-25 (Cat D)
|
FALSE
|
|
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
|
FALSE
|
|
Reaction-to-fire according to EN 13501-6: Smoke production
|
-
|
|
Permitted cable outer temperature during assembling/handling
|
|
|
Min. permitted bending radius, moving application/free movement
|
15 mm
|
|
Permitted cable outer temperature after assembling without vibration
|
|
|
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
|
-
|
|
Min. permitted bending radius, moving application with forced guidance
|
15 mm
|
|
Min. permitted bending radius, stationary application/permanent installation
|
15 mm
|
