Electronic Alarm NPN Black

Link copied
SKU
EAN
GTIN
MPN

Electronic Alarm NPN Black by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £185.14 to £234.80 excl. VAT. Voltimum+ members earn 24 points per unit.

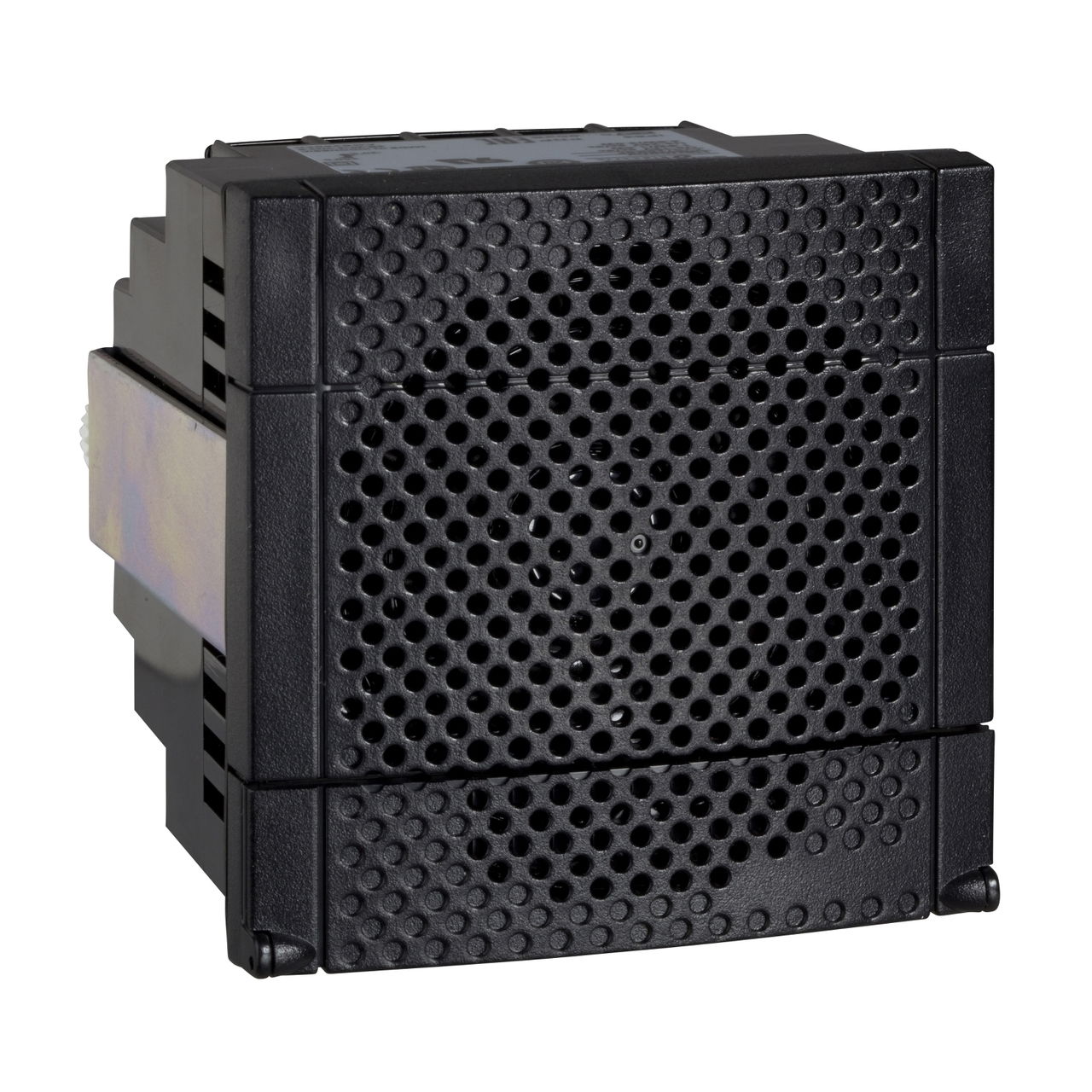

This black electronic alarm is part of the range of multi sound sirens and alarms Harmony XVS. This multisound alarm provides 16 tones and is supplied pre-cabled. It can be supplied with 12V to 24V AC/DC and features NPN output type. It allows imple integration with your applications featuring a compact body that’s 20% thinner than the competition. Its protection index is IP54. It weighs 180g. It provides PC (polycarbonate) terminal cover and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels. It is CE, UL and CSA certified. It can be mounted on 72mm DIN rail.

Voltimum+ Loyalty Programme Loyalty points: 24

Price range: £ 185.14 - £ 234.80 Excl. VAT

Specifications

Power 1.9 W
Loudness 90 dB
Lamp type -
With contact yes
Housing colour Black
Coverage volume -
For Ex-zone gas None
Mounting method Other
Type of current DC
Colour of lamp hood -
Frequency sound signal
Electricity consumption 0.2 A
Type of acoustic signal Programmable
Suitable for wall mounting no
Compatible with Amazon Alexa no
Suitable for ceiling mounting no
Compatible with Google Assistant no

Documents

Declaration of Conformity (Sustainability)

XVS72BMBN REACh Regulation

Open

Instruction sheet

XVS72BM.. Electronic alarms

Open

Product data sheet

Open

Catalog

Harmony XVS Sirens and Electronic Alarms Catalog

Open

Declaration of Conformity (Sustainability)

XVS72BMBN EU RoHS Directive

Open

Declaration of conformity

Manufacturer UK DOC XVSA XVSV XVS10 XVS14 XVS72 XVS96

Open

Declaration of conformity

Manufacturer UK DOC XVSA XVSV XVS10 XVS14 XVS72 XVS96

Open

Declaration of conformity

Manufacturer UK DOC XVSA XVSV XVS10 XVS14 XVS72 XVS96

Open
