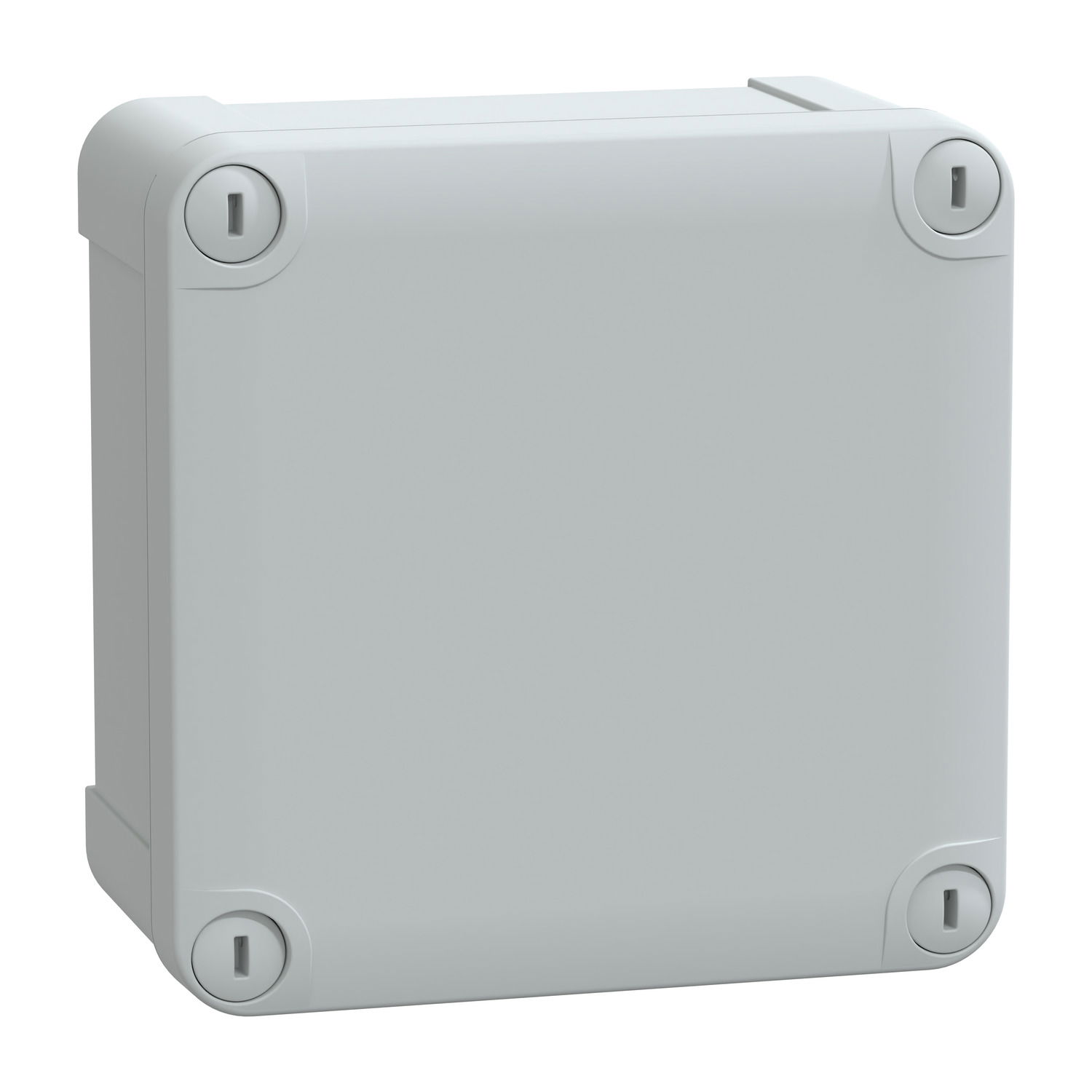

ABS box IP66 IK07 RAL7035 Int.H105W105D55 Ext.H116W116D62 Opaque cover H10

Link copied
SKU
EAN
GTIN
MPN

ABS box IP66 IK07 RAL7035 Int.H105W105D55 Ext.H116W116D62 Opaque cover H10 by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 1 more. It is currently in stock at 3 of them. Trade prices range from £5.67 to £8.76 excl. VAT. Voltimum+ members earn 1 point per unit.

PanelSeT TBS industrial ABS box with opaque cover H10. Int is 105 x 105 x 55 mm. Ext is 116 x 116 x 62 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 5.67 - £ 8.76 Excl. VAT

Specifications

Depth 62 mm
Width 116 mm
Colour Grey
Height 116 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 55 mm
Built-in depth -
Impact strength IK07
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door no
Suitable for outdoor use yes
Degree of protection (NEMA) 4
Material plate thickness cabinet 12.5 mm
Material plate thickness door/cover 12.5 mm
Number of openings for flange plates 0
