Acti9 - comb busbar - 3L - 18 mm pitch - 12 modules - 100A
Acti9 - comb busbar - 3L - 18 mm pitch - 12 modules - 100A by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £32.96 to £49.77 excl. VAT. Voltimum+ members earn 5 points per unit.

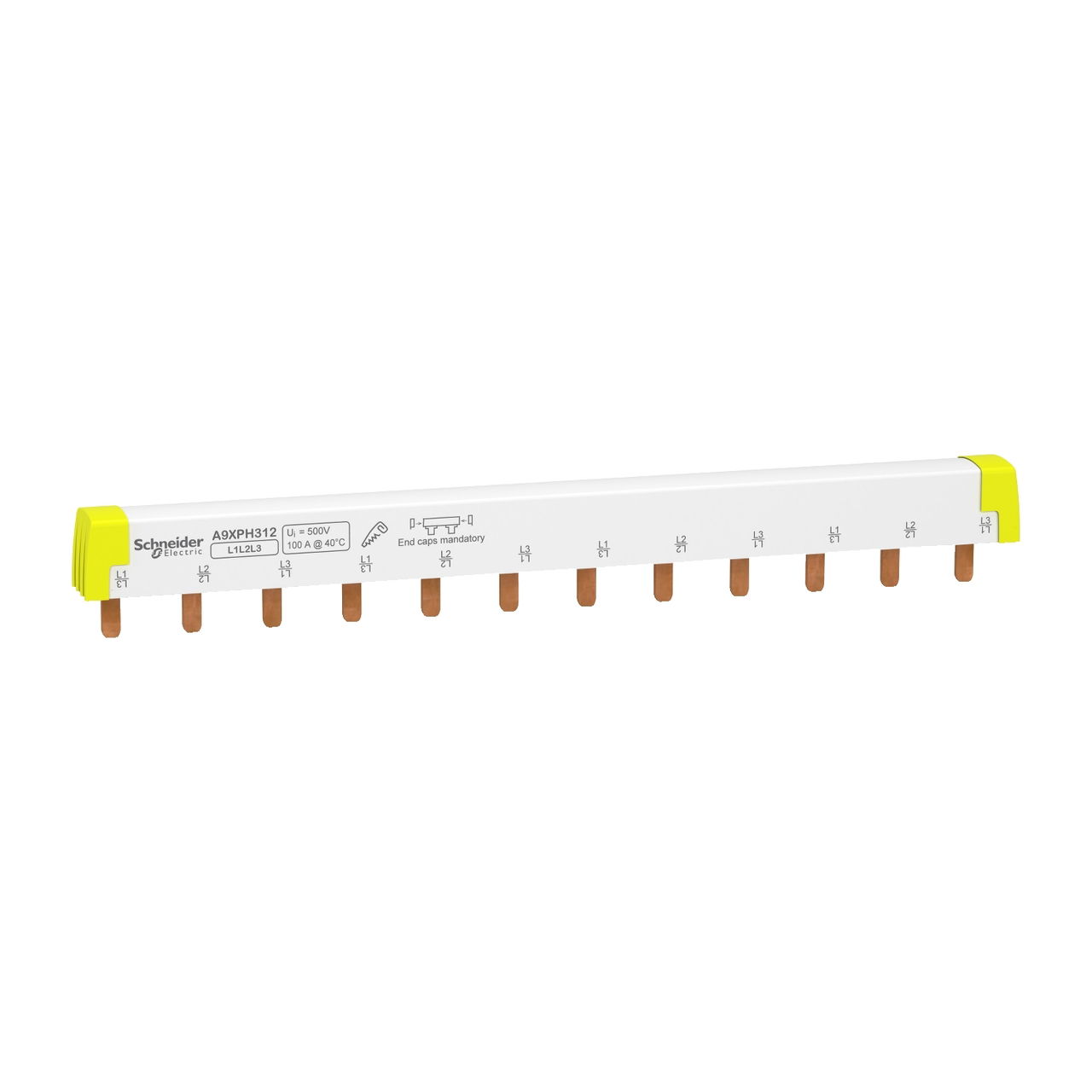

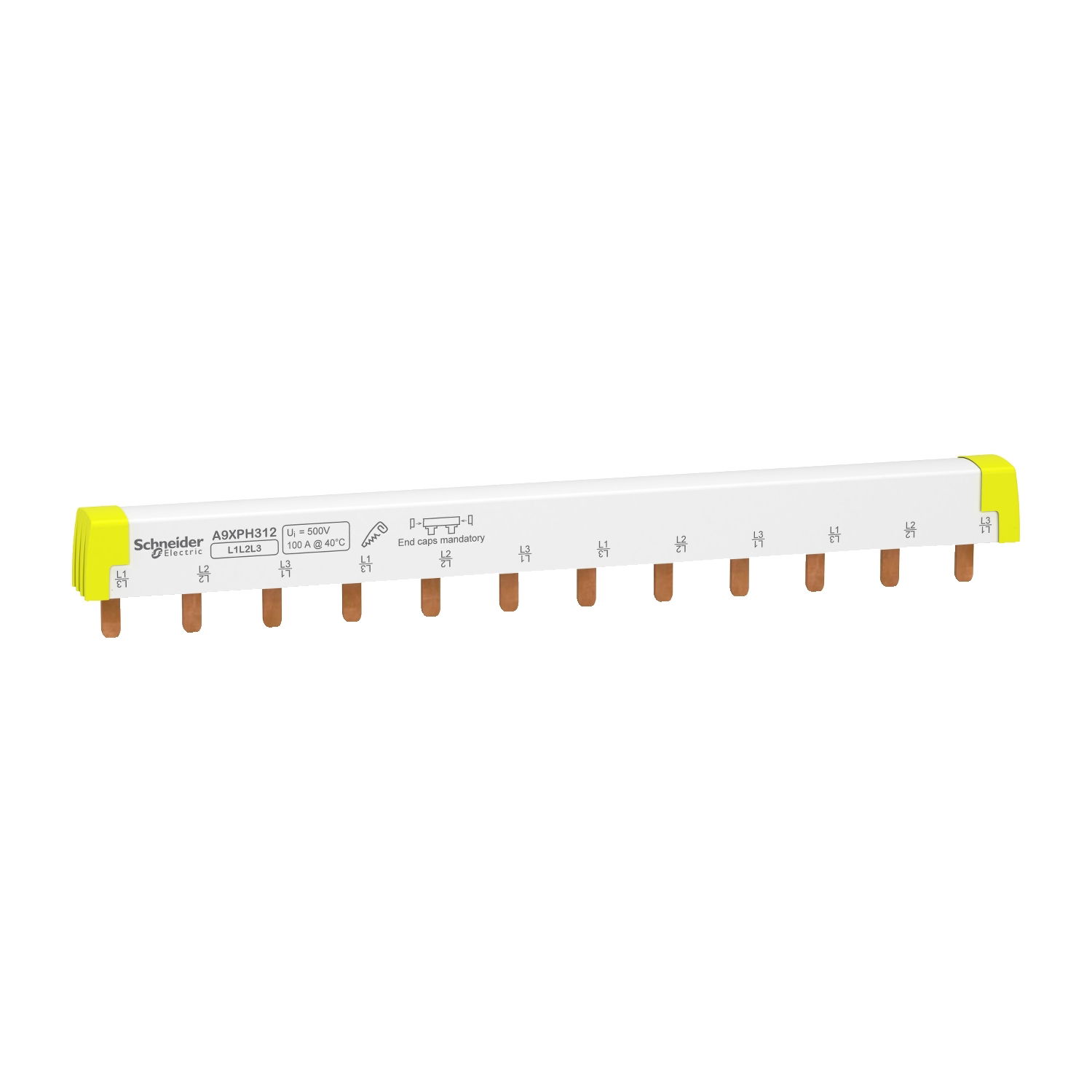

This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60. It is dedicated to 3L installations. The type is L1L2L3 (Line). It is a set of 1 device. It is a set of 1 device. It is suitable for 4 devices (3P). The length is 220mm. The total number of modules of 18mm is 12. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 3. The number of poles is 3. The Ie rated operational current at 40°C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is white RAL9003. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
Product identifiers
SKU: A9XPH312
EAN: 3606480485046
GTIN: 3606480485046
MPN: A9XPH312
Loyalty points:
5
Price range: £ 32.96 - £ 49.77 Excl. VAT
Categories
ETIM group
Specifications
| Colour | White |
| Length | 220 mm |
| Insulated | yes |
| Module width | 18 mm |
| Cross section | 16 mm² |
| Number of poles | 3 |
| Number of phases | 3 |
| Can be cut to size | yes |
