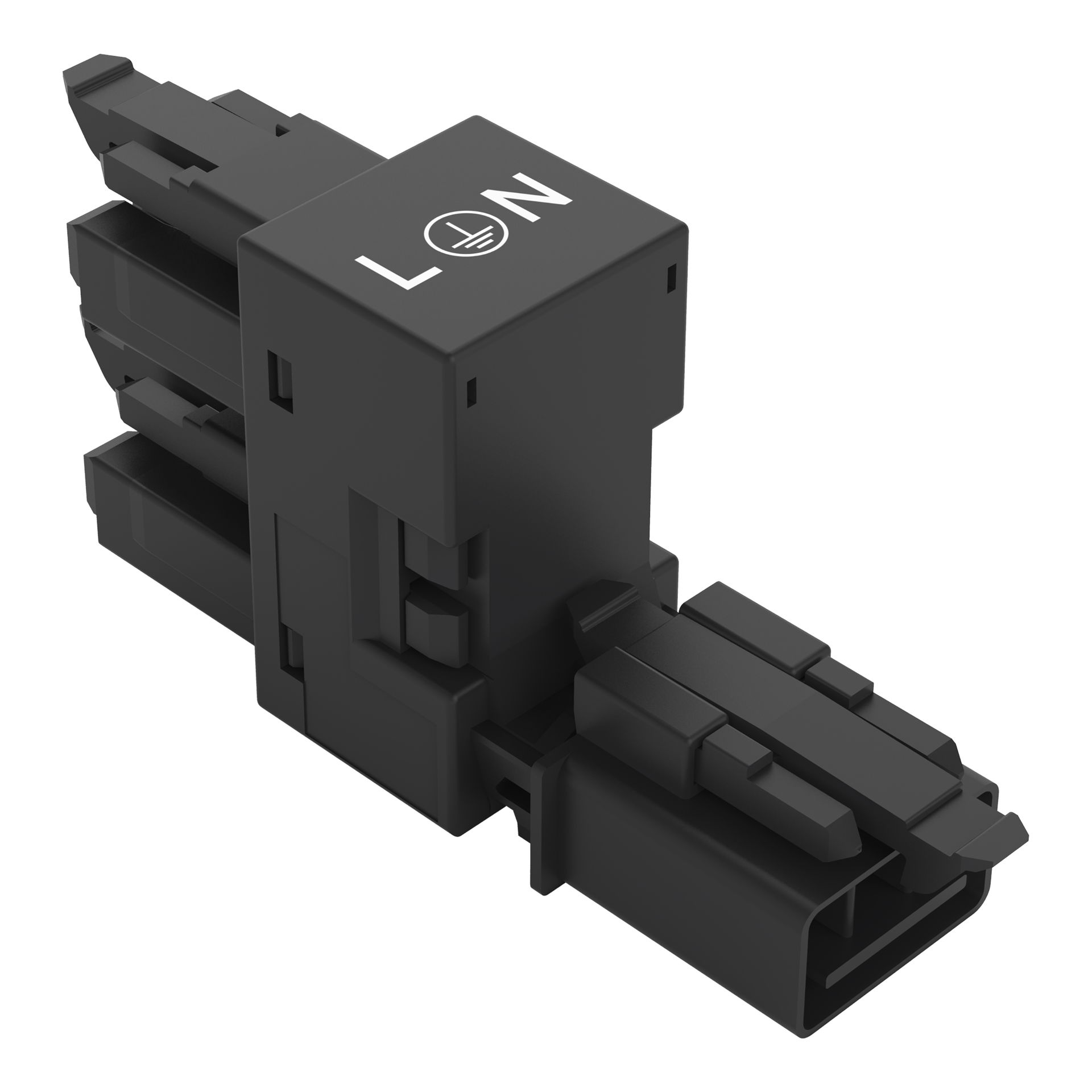

H-distribution connector 3-pole Cod. A black

Name: H-distribution connector 3-pole Cod. A black
Brand: Wago
SKU: 890-636
Availability: InStock

h-distribution connector; 3-pole; Cod. A; 1 input; 2 outputs; outputs on one side; 3 locking levers; for flying leads; black

Product identifiers

SKU: 890-636

EAN: 4045454404482

GTIN: 4045454404482

MPN: 890-636

Price: £ 6.13 Excl. VAT

Specifications

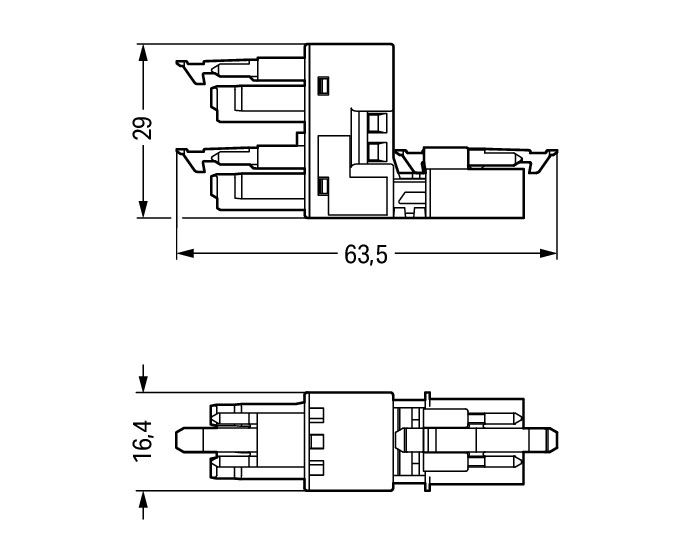

Width	16.4
Height	29
Length	63.5
Fire load	0.06889
Halogen free	yes
Phase pickup	-
Rated current	16
Rated voltage	250
Number of poles	3
Type of locking	Integrated in plug-in connector
Contact material	CuSn
Housing material	Polyamide (PA)
Number of inputs	3
Pollution degree	3
Mechanical coding	yes
Number of outputs	6
Pole codification	L, N, PE
Rated surge voltage	4
Type of distributor	Distribution terminal block
Mounting possibility	With separate adapter
Continuity resistance	1
Degree of protection (IP)	IP20
Rated current to luminaire	16
Surface treatment contacts	Tinned
Colour coding/contact insert	Black
Type of integrated switching	None
RAL-number coding/contact insert	-
Colour of the separate adapter piece	-
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
