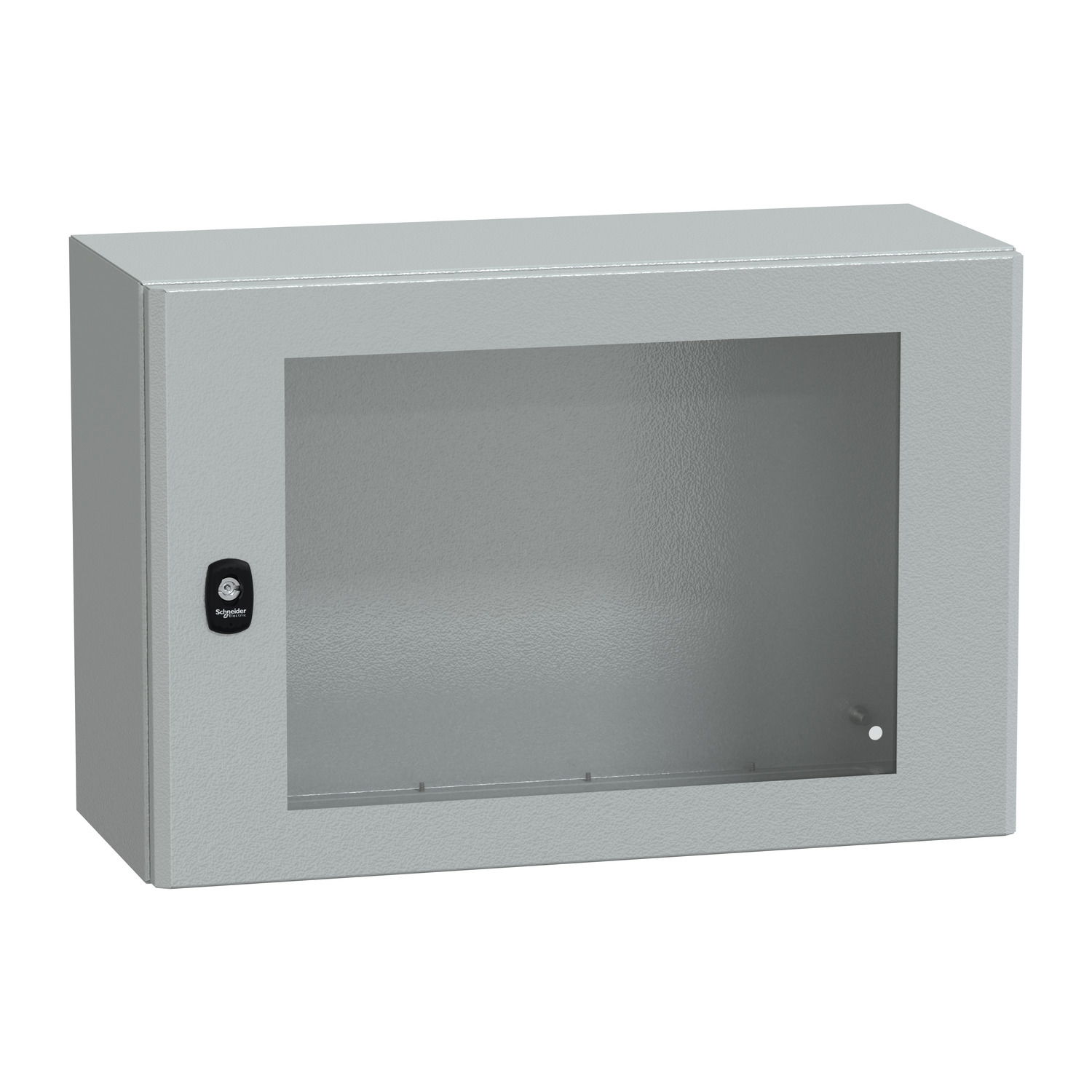

"Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 400x600x250mm, IP66, IK08"

Name: "Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 400x600x250mm, IP66, IK08"
Brand: Schneider Electric
SKU: NSYS3D4625T
Price: 155.00 GBP
Availability: InStock

"Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 400x600x250mm, IP66, IK08" by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Control Components Anglia. Voltimum+ members earn 26 points per unit.

PanelSeT S3D wall mounted steel enclosure with glazed door. 400 x 600 x 250 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.

Product identifiers

SKU: NSYS3D4625T

EAN: 3606480159497

GTIN: 3606480159497

MPN: NSYS3D4625T

Loyalty points: 26

Price: £ 155.00 Excl. VAT

Specifications

Depth	250 mm
Width	600 mm
Colour	Grey
Height	400 mm
Material	Steel
Couplable	no
With door	yes
RAL-number	7035
With cover	no
EMC-version	no
Corner model	no
Freestanding	no
Pitched roof	no
Pre-stamping	no
Pole fastening	yes
With rear door	no
Impact strength	IK08
Number of doors	1
Number of locks	1
Material quality	Other
With glazed door	yes
Surface finishing	Powder coating
Transparent cover	no
With mounting plate	no
Intermediate mounting	no
With ventilation door	no
Degree of protection (IP)	IP66
Floor standing wall model	no
Number of connector holes	0
Suitable for wall built-in	no
Suitable for wall mounting	yes
Degree of protection (NEMA)	4X
Suitable for outdoor set-up	no
Suitable for metrical mounting	yes
Mounting plate depth-adjustable	no
Max. permissible load of the door(s) according to IEC 62208	-
Max. permissible load of the enclosure according to IEC 62208	250 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890	-
Max. permissible load of the mounting plate according to IEC 62208	250 N
