Schneider Electric

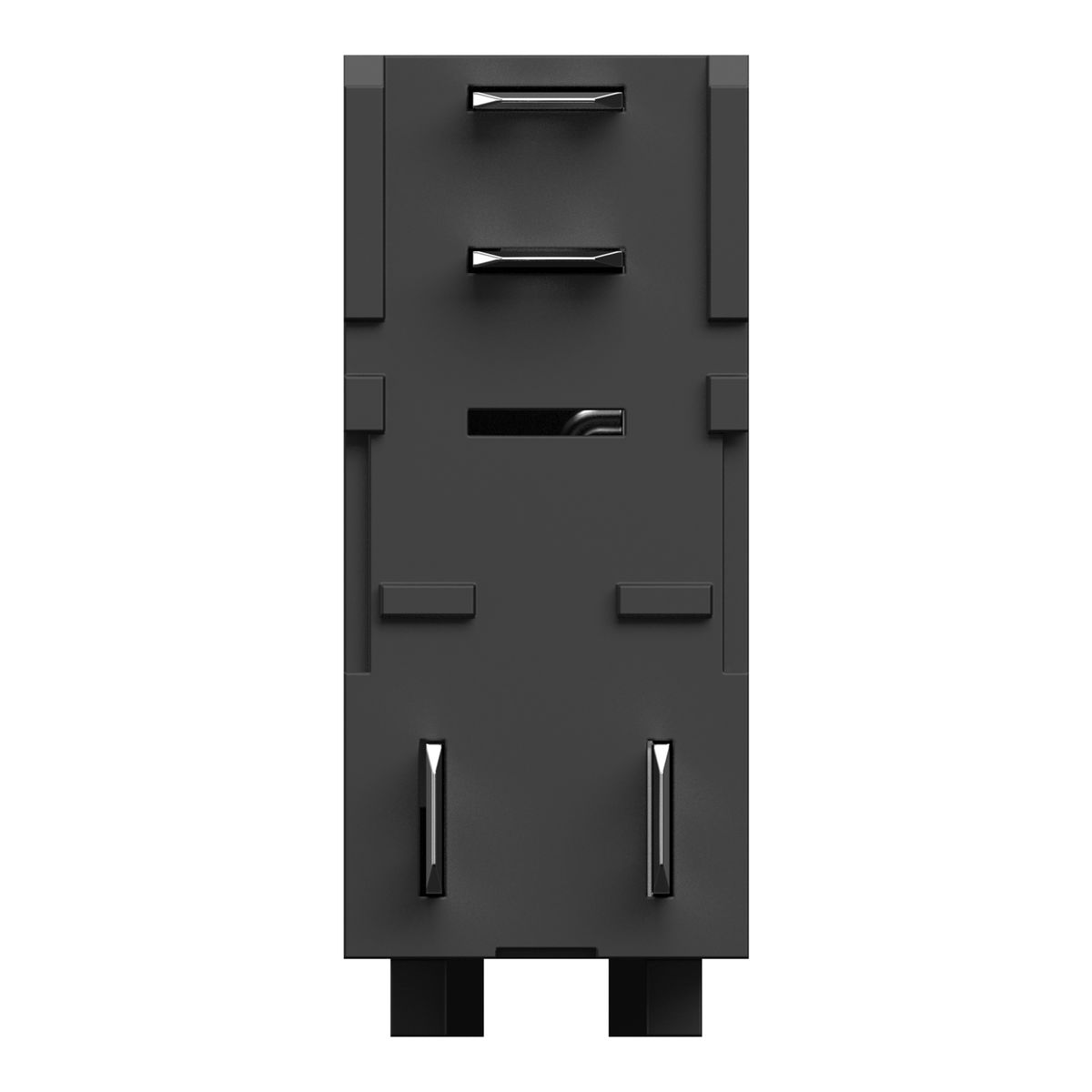

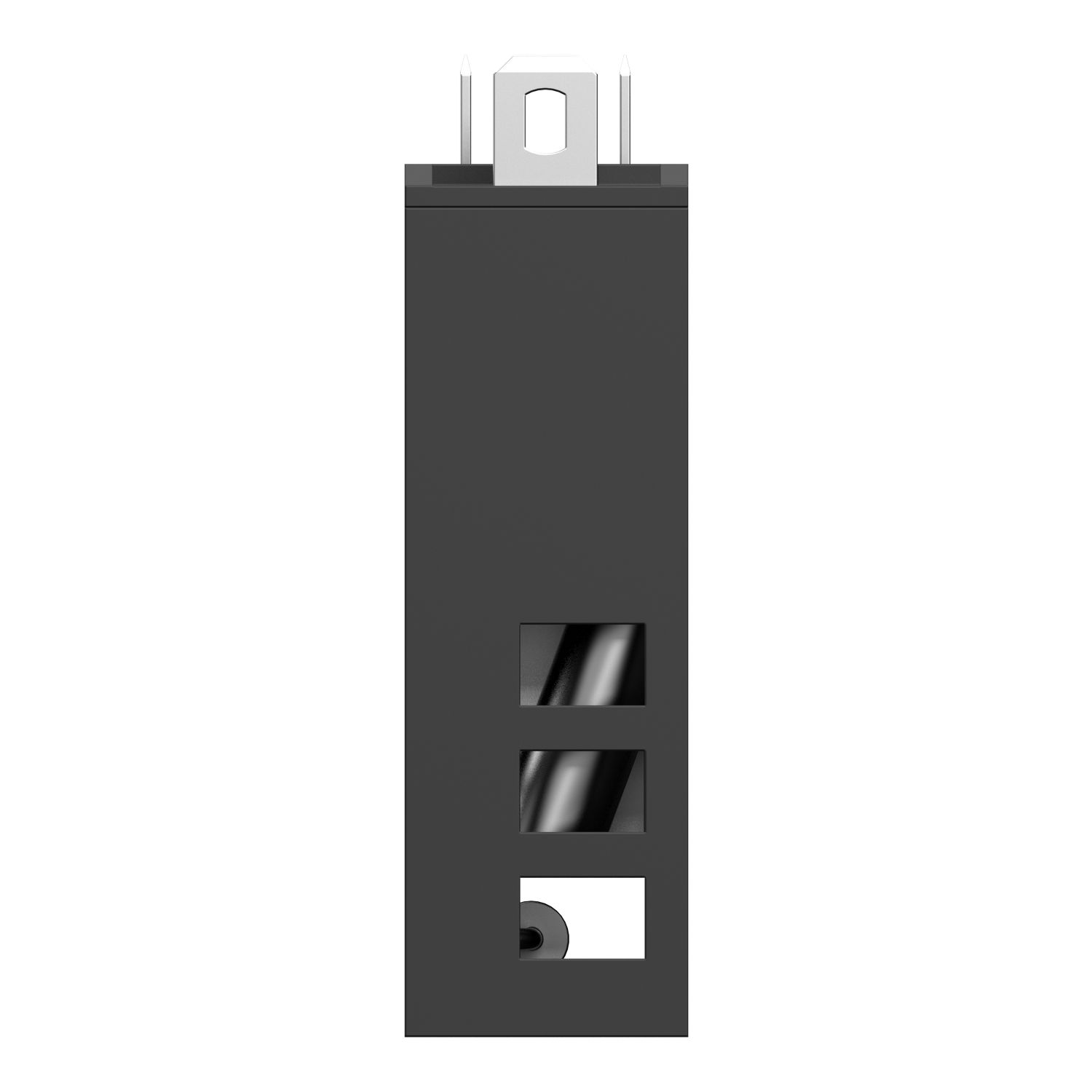

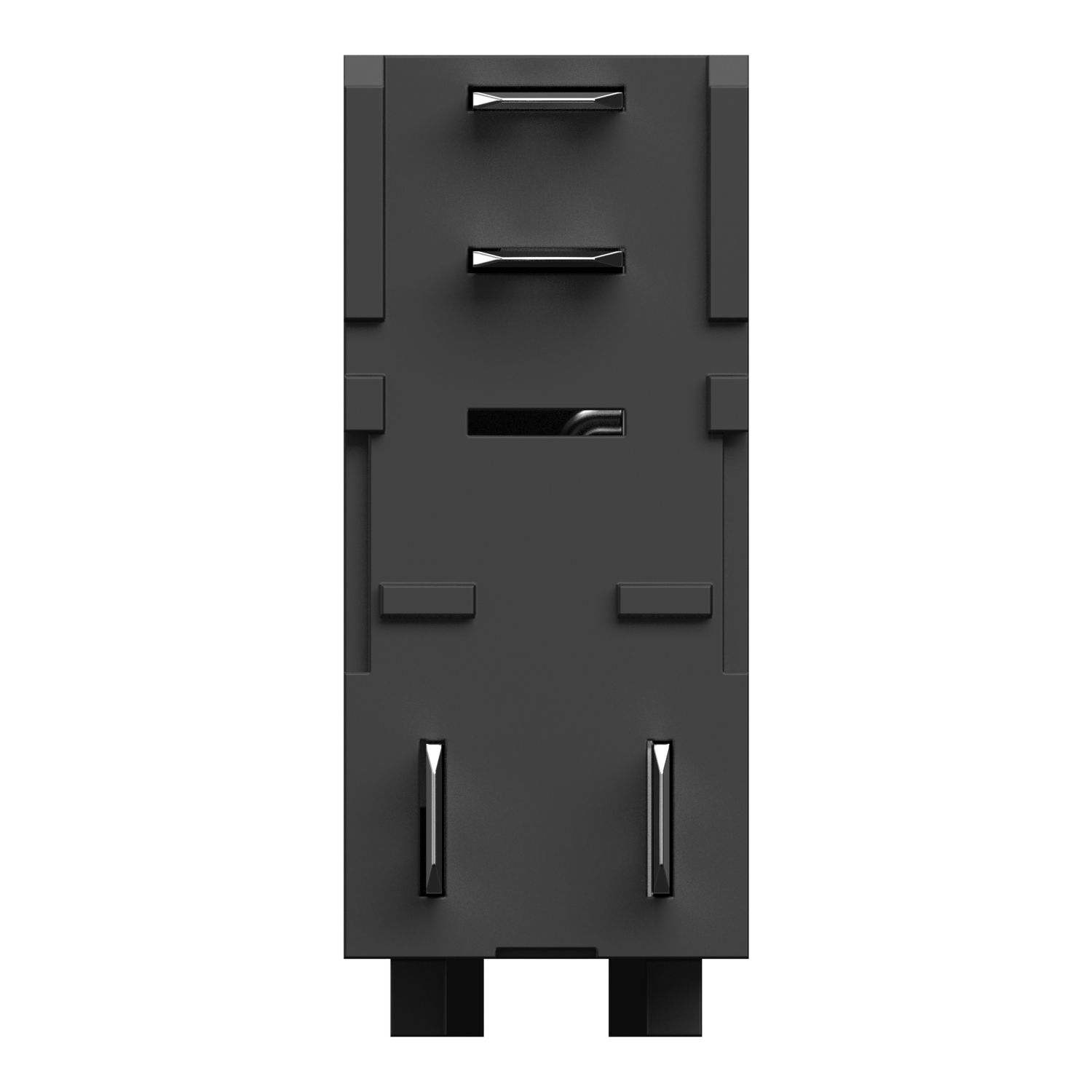

Plug-in solid state relay- 12.5 mm - input - 24 V DC type 2

Link copied
SKU
EAN
GTIN
MPN

Plug-in solid state relay- 12.5 mm - input - 24 V DC type 2 by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia and RS Components. It is currently in stock at 2 of them. Trade prices range from £19.32 to £31.16 excl. VAT. Voltimum+ members earn 3 points per unit.

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in solid state relay is compatible with Modicon ABE7 connection sub-bases. It is a solid state input relay with a discrete input voltage of 24V DC. The response time is ≤0.05ms from state 0 to 1 and ≤0.4ms from state 1 to 0. The width pitch is 12mm. It weighs 0.014kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P16F310, ABE7P16F310E and ABE7P16F312 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Voltimum+ Loyalty Programme Loyalty points: 3

Price range: £ 19.32 - £ 31.16 Excl. VAT

Categories

Electronic Components Relays

ETIM group

Devices for distribution board-/surface mounting

Specifications

Function Completely electronic
Rated current 0.5 A
Built-in depth 55 mm
Supply voltage
Mounting method DIN rail
Control voltage 1
Control voltage 2
Type of control voltage 1 AC/DC
Max. load fluorescent lamp -
Frequency control voltage 2
Voltage type (supply voltage) AC/DC
Max. switching current (cos phi = 0.6) -
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 0
